MODEL TPM-1 10F/R 0108-001 156 操作パネル部 OPERATION PANEL SECTION Fig. D-1 操作パネル Operation Panel See Fig.K-6 Key No.511 See Fig.K-6 Key No.512 12 5 10 6 9 11 . 4 8 . 7 3 . 61 62 63 1 2 66 65 64 Fig.D-1 TPM-100F/R TPM-110F/R …
MODEL TPM-110F/R
0108-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
155
C-1
1 630 089 2529 EQUIPMENT 1 PL6900-T41-WN10 748C--210-001
2 630 089 2635 UNIT,POWER 1 G004, #ZWS5-12/JA 748C--210-002
3 630 088 5972 CORD 1 748C--210-003
4 630 088 5989 CORD 1 XCN002-XCN107H,206H
748C--210-004
5 630 088 5996 CORD 1 XCN003-XCNA01,B01-A02,B02
748C--210-005
6 630 088 6009 CORD 1 XNC001- 748C--210-006
7 630 088 7266 CORD 1 748C--210-007
61 411 041 8908 SCR PAN 3X6 2 748C--210-061
62 411 086 4408 WASHER SPR 3 2 748C--210-062
63 411 119 1909 WASHER V 3X7X0.5 2 748C--210-063
64 411 113 1400 SCR PAN 4X6 3 748C--210-064
65 411 008 1706 WASHER SPR 4 3 748C--210-065
66 411 119 2104 WASHER V 4X9X0.8 3 748C--210-066
MODEL TPM-110F/R
0108-001
156

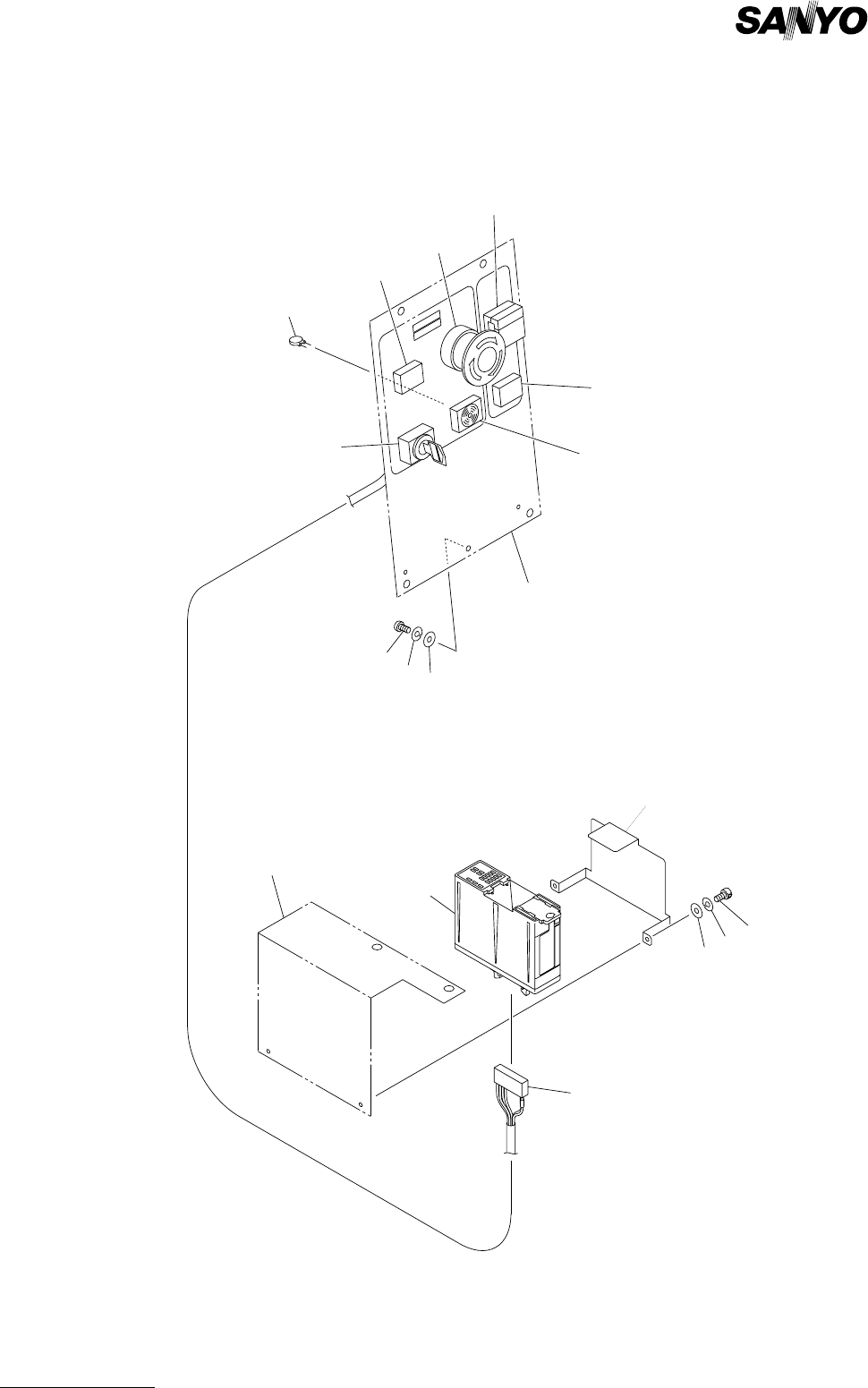

操作パネル部 OPERATION PANEL SECTION
Fig. D-1 操作パネル Operation Panel
See Fig.K-6
Key No.511
See Fig.K-6
Key No.512
12
5
10
6
9
11
.
4
8
.
7
3
.
61
62
63
1
2
66
65
64
Fig.D-1
TPM-100F/R
TPM-110F/R
13
MODEL TPM-110F/R
0108-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
157
D-1
1 630 089 2857 UNIT,I/O 1 N001, SAB10-TM16J3A
748D--210-001
2 630 090 8671 BRACKET 1 748D--210-002
3 630 033 4609 SWITCH,BUTTON 1 SPB003 748D--210-003
4 630 033 4586 DISPLAY ELEMENT 1 748D--210-004
5 630 033 4593 ACCESSORY,SW 1 HD003 748D--210-005
6 630 036 4620 SWITCH,BUTTON 1 SPB002 748D--210-006
7 630 000 2713 SWITCH,BUTTON 1 SPB001 748D--210-007
8 630 000 0382 ACCESSORY,SW 1 HD001 748D--210-008
9 630 000 2515 SWITCH,BUTTON 1 HA006 748D--210-009
10 630 000 3130 SWITCH,SELECTOR 1 SPB004 748D--210-010
11 630 035 0074 BUZZER 1 S005 748D--210-011
12 407 139 6505 VARISTOR TNR9G470K 1 748D--210-012
13 630 088 7235 CORD 1 XCN010- 748D--210-013
61 411 113 1400 SCR PAN 4X6 1 748D--210-061
62 411 008 1706 WASHER SPR 4 1 748D--210-062
63 411 119 2104 WASHER V 4X9X0.8 1 748D--210-063
64 630 000 7510 BOLT,HEX-SCT 2 748D--210-064
65 411 141 2806 WASHER SPR 3 2 748D--210-065
66 411 141 3902 WASHER V 3X7X0.5 2 748D--210-066
