MODEL TPM-1 10F/R 0108-001 54 スキージヘッド部 SQUEEGEE HEAD SECTION Fig. FA-5 ケーブル Cable 420 416 462 463 403 404 402 404 409 408 464 465 466 405 401 407 41 1 463 413 418 462 461 463 415 419 414 417 462 461 410 461 See Fig.F A-1…
MODEL TPM-110F/R
0108-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
53
FA-4
301 630 088 4326 CYLINDER 2 BPS060,061, BPS062,063
748FA-210-301
302 630 088 4432 PIPE FITTINGS 4 748FA-210-302
303 630 088 4357 CYLINDER 2 748FA-210-303
304 630 003 5155 AIR LINE EQPT 4 748FA-210-304
305 630 088 3978 BUSH,BALL 4 748FA-210-305
306 630 089 0471 SHAFT,LINEAR 2 748FA-210-306
307 411 155 7903 NUT WING 6 2 748FA-210-307
308 630 089 0488 SHAFT,LINEAR 2 748FA-210-308
309 630 088 0304 STAY 1 748FA-210-309
310 630 088 0281 BLOCK 2 748FA-210-310
311 630 094 3382 BUSH,LOCATE 2 748FA-210-311
361 630 000 7626 BOLT,HEX-SCT 16 748FA-210-361
362 630 091 5426 BOLT,HEX-SCT 8 748FA-210-362
363 630 000 7886 BOLT,HEX-SCT 4 748FA-210-363
364 411 141 3001 WASHER SPR 6 4 748FA-210-364
365 411 141 4305 WASHER V 6X12.5X1.6 4 748FA-210-365
366 630 000 8012 BOLT,HEX-SCT 4 748FA-210-366
367 411 141 3100 WASHER SPR 8 4 748FA-210-367
368 411 141 4503 WASHER V 8X17X1.6 4 748FA-210-368
MODEL TPM-110F/R
0108-001
54

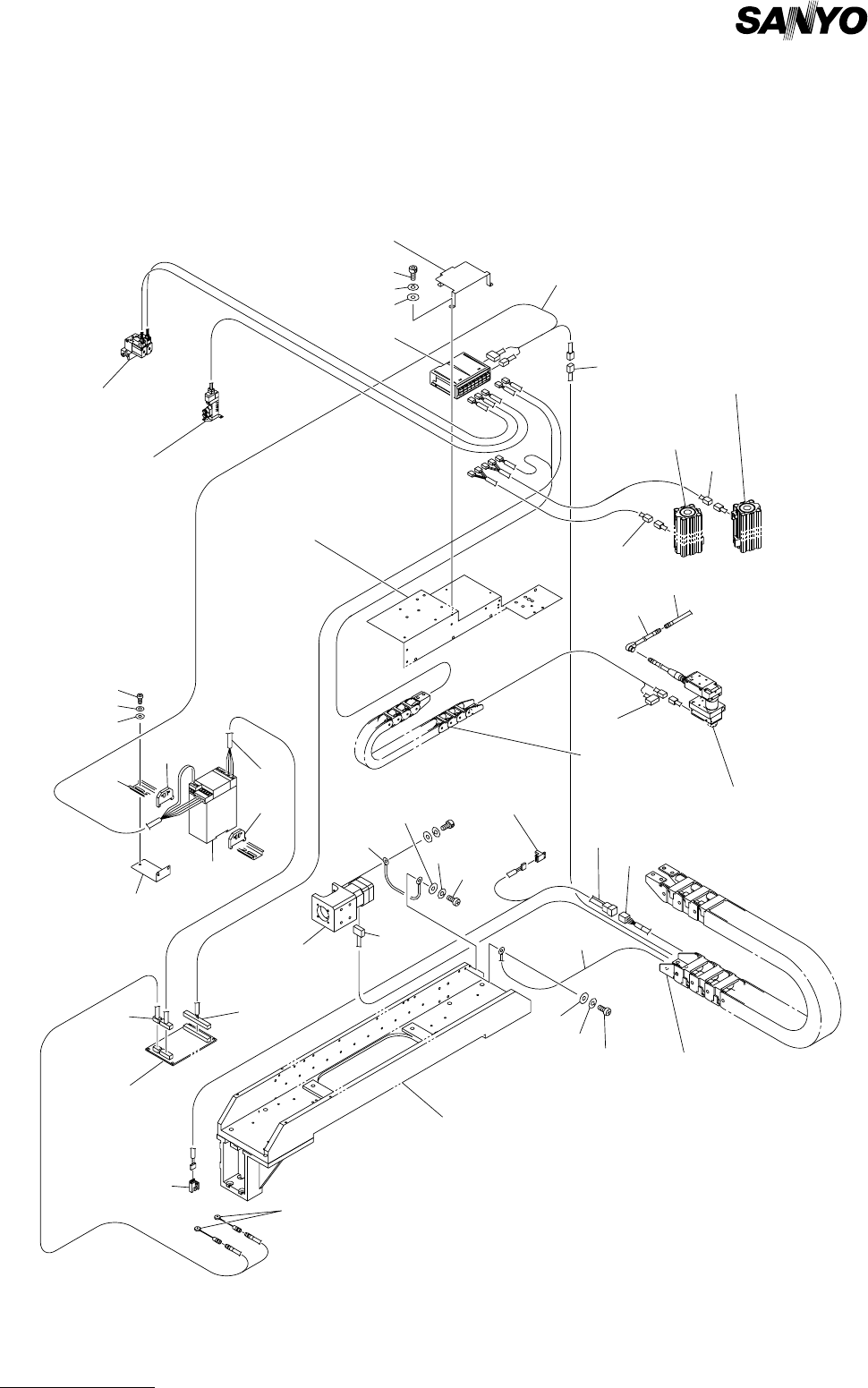

スキージヘッド部 SQUEEGEE HEAD SECTION
Fig. FA-5 ケーブル Cable
420
416
462
463
403
404
402
404
409
408
464
465
466
405
401
407
411
463
413
418
462
461
463
415
419
414
417
462
461
410
461
See Fig.FA-1
Key No.26
See Fig.FA-1
Key No.2
See Fig.FA-1
Key No.8
See Fig.FA-1
Key No.18
See Fig.FB-1
Key No.25
See Fig.FB-1
Key No.14
See Fig.FB-1
Key No.15
See Fig.FB-1
Key No.7
See Fig.FB-1
Key No.9
See Fig.FB-1
Key No.6
See Fig.FA-1
Key No.22
See Fig.FA-3
Key No.205
See Fig.FA-1
Key No.15
See Fig.FA-4
Key No.301
See Fig.FA-4
Key No.301
Fig.FA-5
TPM-110F/R
406
412
MODEL TPM-110F/R
0108-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
55
FA-5
401 630 089 2864 UNIT,I/O 1 N006, SAB10-TM16J43A
748FA-210-401
402 630 085 3292 UNIT,I/O 1 N053, SAB10-TB04C1
748FA-210-402
403 630 091 1787 ACCESSORY,WIRING 1 748FA-210-403
404 630 091 1749 BRACKET,WIRING 2 748FA-210-404
405 630 090 8664 BRACKET 1 748FA-210-405
406 630 088 6252 CORD 1 XNC064,06E-XNC1064,106E
748FA-210-406
407 630 088 6269 CORD 1 XNC06F-XNC533 748FA-210-407
408 630 088 6276 CORD 1 XNC531,532-XNC534
748FA-210-408
409 630 088 6283 CORD 1 XNC535- 748FA-210-409
410 630 088 6290 CORD 1 XNC060,061-XNC1060,1061
748FA-210-410
411 630 088 6306 CORD 1 XNC062,063-XNC1062,1063
748FA-210-411
412 630 088 6313 CORD 1 XNCA06,B06-XNC1A06
748FA-210-412
413 630 088 6320 CORD 1 748FA-210-413
414 630 088 6337 CORD 1 XNC311- 748FA-210-414
415 630 088 6344 CORD 1 748FA-210-415
416 630 088 6351 CORD 1 XNC106H-XNC206H 748FA-210-416
417 630 088 6368 CORD 1 XNC310-XNC1310 748FA-210-417
418 630 088 6375 CORD 1 XNC1A06-XNC2A06 748FA-210-418
419 630 088 6382 CORD 1 XNC311-XNC1311 748FA-210-419
420 630 088 7228 CORD 1 XNC06H-XNC106H 748FA-210-420
461 411 113 1400 SCR PAN 4X6 4 748FA-210-461
462 411 008 1706 WASHER SPR 4 4 748FA-210-462
463 411 119 2104 WASHER V 4X9X0.8 4 748FA-210-463
464 630 000 7510 BOLT,HEX-SCT 3 748FA-210-464
465 411 141 2806 WASHER SPR 3 3 748FA-210-465
466 411 141 3902 WASHER V 3X7X0.5 3 748FA-210-466
