MODEL TPM-1 10F/R 0108-001 Key No . P AR T No . P AR T NAME Q’ty REMARKS NOTE 149 BE-1 1 630 091 1756 UNIT ,DRIVER 1 N025, B1996-054 748BE-210-001 2 630 091 2630 UNIT ,DRIVER 1 APMD025, B2122-0718ASC 748BE-210-002 3 630 …
MODEL TPM-110F/R
0108-001
148

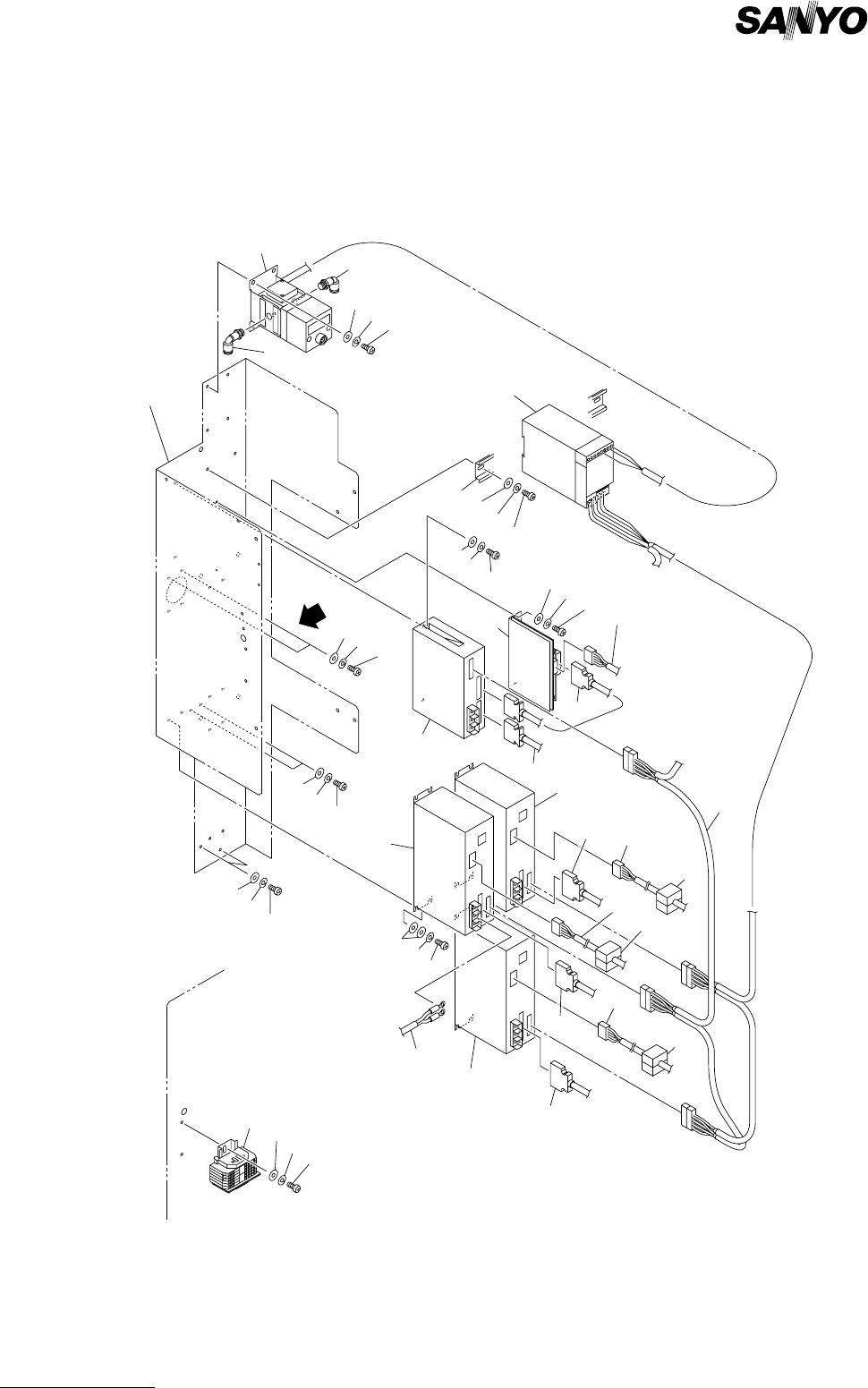

ドライバ 1 部 DRIVER 1 SECTION
Fig. BE-1 ドライバ 1 Driver-1
See Fig.K-5
Key No.402
66
65
64
20
19
20
6
4
66
65
72
71
70
63
62
61
66
5
VIEW ’’A’’
65
64
66
65
64
66
65
64
69
68
67
66
65
64
A
11
9
10
3
3
3
12
13
16
17
14
8
7
15
64
2
1
Fig.BE-1
TPM-100F/R
TPM-110F/R
18
18
18
MODEL TPM-110F/R
0108-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
149
BE-1
1 630 091 1756 UNIT,DRIVER 1 N025, B1996-054 748BE-210-001
2 630 091 2630 UNIT,DRIVER 1 APMD025, B2122-0718ASC
748BE-210-002
3 630 091 1763 UNIT,DRIVER 3 APMD019,021,023, B2083-0724AS
748BE-210-003
4 630 085 3308 UNIT,I/O 1 N049, SAB10-TC04C1
748BE-210-004
5 630 091 2586 TERMINAL 1 X010 748BE-210-005
6 630 091 1787 ACCESSORY,WIRING 1 748BE-210-006
7 630 088 5712 CORD 1 XCNA17-19-21-23-25 748BE-210-007
8 630 088 5729 CORD 1 748BE-210-008
9 630 088 5736 CORD 1 XCN254-XCN252 748BE-210-009
10 630 088 5743 CORD 1 XCN256-XNC1251 748BE-210-010
11 630 088 5750 CORD 1 XNC255-XNC1250 748BE-210-011
12 630 088 5767 CORD 1 XCN215-XCN1210 748BE-210-012
13 630 088 5774 CORD 1 XCN216-XNC1211 748BE-210-013
14 630 088 5781 CORD 1 XNC235-XNC1230 748BE-210-014
15 630 088 5798 CORD 1 XCN236-XNC1231 748BE-210-015
16 630 088 5804 CORD 1 XNC195-XNC190 748BE-210-016
17 630 088 5811 CORD 1 XCN196-XNC1911 748BE-210-017
18 630 060 6409 ACCESSORY,WIRING 3 748BE-210-018
19 630 037 6982 SOLENOID VALVE 1 YSV001 748BE-210-019
20 630 003 7340 PIPE FITTINGS 2 748BE-210-020
61 411 043 5004 SCR PAN 4X8 12 748BE-210-061
62 411 008 1706 WASHER SPR 4 12 748BE-210-062
63 411 119 2104 WASHER V 4X9X0.8 24 748BE-210-063
64 411 113 1400 SCR PAN 4X6 14 748BE-210-064
65 411 008 1706 WASHER SPR 4 14 748BE-210-065
66 411 119 2104 WASHER V 4X9X0.8 14 748BE-210-066
67 411 042 0703 SCR PAN 3X8 2 748BE-210-067
68 411 086 4408 WASHER SPR 3 2 748BE-210-068
69 411 119 1909 WASHER V 3X7X0.5 2 748BE-210-069
70 411 042 3001 SCR PAN 4X10 2 748BE-210-070
71 411 008 1706 WASHER SPR 4 2 748BE-210-071
72 411 119 2104 WASHER V 4X9X0.8 2 748BE-210-072
MODEL TPM-110F/R
0108-001
150

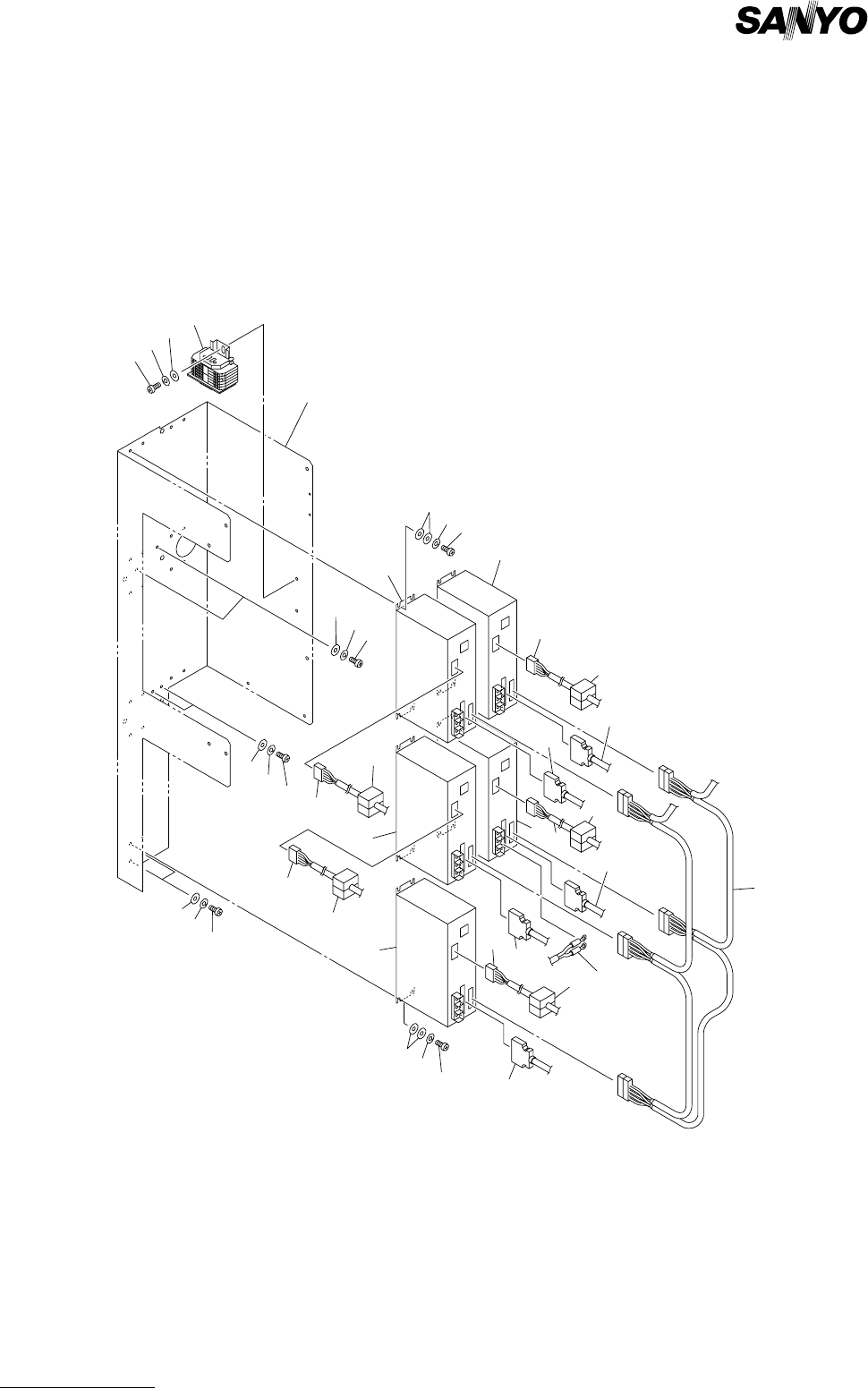

ドライバ 2 部 DRIVER 2 SECTION
Fig. BF-1 ドライバ 2 Driver-2
See Fig.K-5
Key No.401
64
63
6
7
4
9
5
13
14
15
63
62
61
12
2
10
11
8
62
61
1
1
1
66
65
64
66
65
64
66
65
64
65
66
3
Fig.BF-1
TPM-100F/R
TPM-110F/R
1
16
16
16
16
16
