MODEL TPM-1 10F/R 0108-001 Key No . P AR T No . P AR T NAME Q’ty REMARKS NOTE 159 FG-1 1 630 000 4243 SOCKET 1 X001 748FG-210-001 2 630 049 1098 SWITCH,TOGGLE 1 S101 748FG-210-002 3 402 061 5206 WIRE WOUND 100 JB 80W 1 R…
MODEL TPM-110F/R
0108-001
158

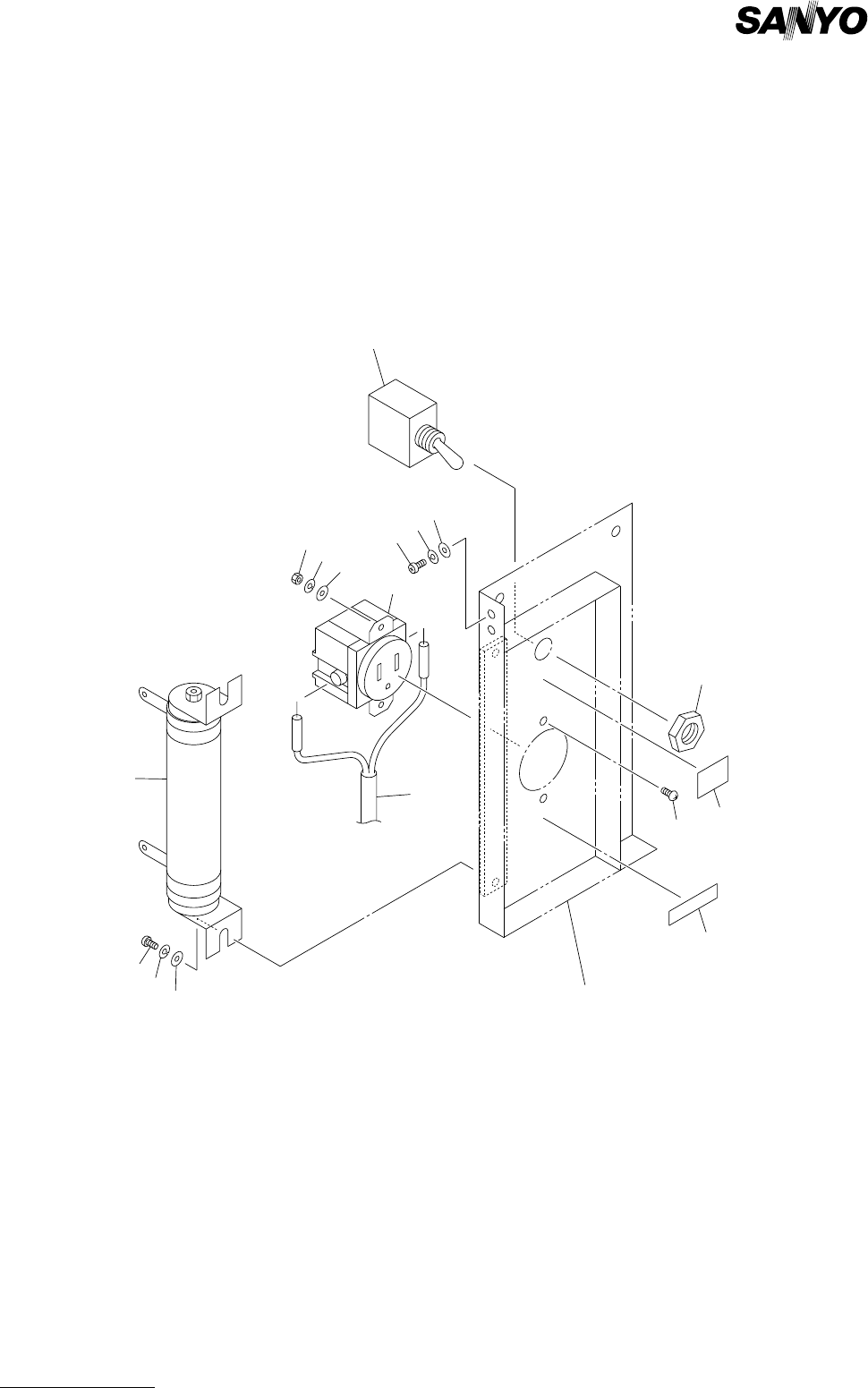

コンソール部 CONSOLE SECTION
Fig. FG-1 コンソール Console
See Fig.K-4
Key No.302
5
64
1
6
3
4
2
2
61
62
63
67
65
66
61
62
63
Fig.FG-1
TPM-100F/R
TPM-110F/R
MODEL TPM-110F/R
0108-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
159
FG-1
1 630 000 4243 SOCKET 1 X001 748FG-210-001
2 630 049 1098 SWITCH,TOGGLE 1 S101 748FG-210-002
3 402 061 5206 WIRE WOUND 100 JB 80W 1 R101 748FG-210-003
4 630 091 1817 NAME PLATE,INDEX 1 748FG-210-004
5 630 091 1824 NAME PLATE,INDEX 1 748FG-210-005
6 630 088 6405 CORD 1 748FG-210-006
61 411 113 1400 SCR PAN 4X6 4 748FG-210-061
62 411 008 1706 WASHER SPR 4 4 748FG-210-062
63 411 119 2104 WASHER V 4X9X0.8 4 748FG-210-063
64 411 040 6202 SCR PAN 3X10 2 748FG-210-064
65 411 086 4408 WASHER SPR 3 2 748FG-210-065
66 411 119 1909 WASHER V 3X7X0.5 2 748FG-210-066
67 411 054 6809 NUT HEX 3 2 748FG-210-067
MODEL TPM-110F/R
0108-001
160
前後インターフェース部 PREVIOS/NEXT INTERFACE SECTION
Fig. FH-1 前後インターフェース Previous/Next Interface
2
67
68
69
5
63
6
1
4
9
62
61
63
65
11
70
10
70
7
8
66
64
12
3
13
62
61
See Fig.K-5
Key No.403
Fig.FH-1
TPM-100F/R
TPM-110F/R
62
61
63
A
A
