P-0169-001.pdf - 第166页
MODEL TPM-1 10F/R 0108-001 164 基板部 P.C.B. SECTION Fig. T-1 基板実装部 P.C.B. Layout See Fig.C-1 Key No.1 2 1 3 4 Fig.T-1 TPM-110F/R 5
MODEL TPM-110F/R
0108-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
163
HH-1
1 630 091 1756 UNIT,DRIVER 2 N037,N039, B1996-054
748HH-210-001
2 630 091 2630 UNIT,DRIVER 2 APMD037,039, B2122-0718ASC
748HH-210-002
3 630 091 1688 ACCESSORY,WIRING 1 748HH-210-003
4 630 088 6559 CORD 1 XCN374-XCN372 748HH-210-004
5 630 088 6566 CORD 1 XCN392-XCN394 748HH-210-005
6 630 088 6573 CORD 1 XNC375-XNC370 748HH-210-006
7 630 088 6580 CORD 1 XNC395-XNC390 748HH-210-007
8 630 088 6603 CORD 1 XCN376-XNC1371 748HH-210-008
9 630 088 6610 CORD 1 XCN396-XNC1391 748HH-210-009
10 630 088 6627 CORD 1 XCNA04,B04-XCNA37-XCNA39
748HH-210-010
61 411 113 1400 SCR PAN 4X6 4 748HH-210-061
62 411 008 1706 WASHER SPR 4 4 748HH-210-062
63 411 119 2104 WASHER V 4X9X0.8 4 748HH-210-063
64 411 042 0703 SCR PAN 3X8 2 748HH-210-064
65 411 086 4408 WASHER SPR 3 2 748HH-210-065
66 411 119 1909 WASHER V 3X7X0.5 2 748HH-210-066
67 630 000 7510 BOLT,HEX-SCT 2 748HH-210-067
MODEL TPM-110F/R
0108-001
164
基板部 P.C.B. SECTION

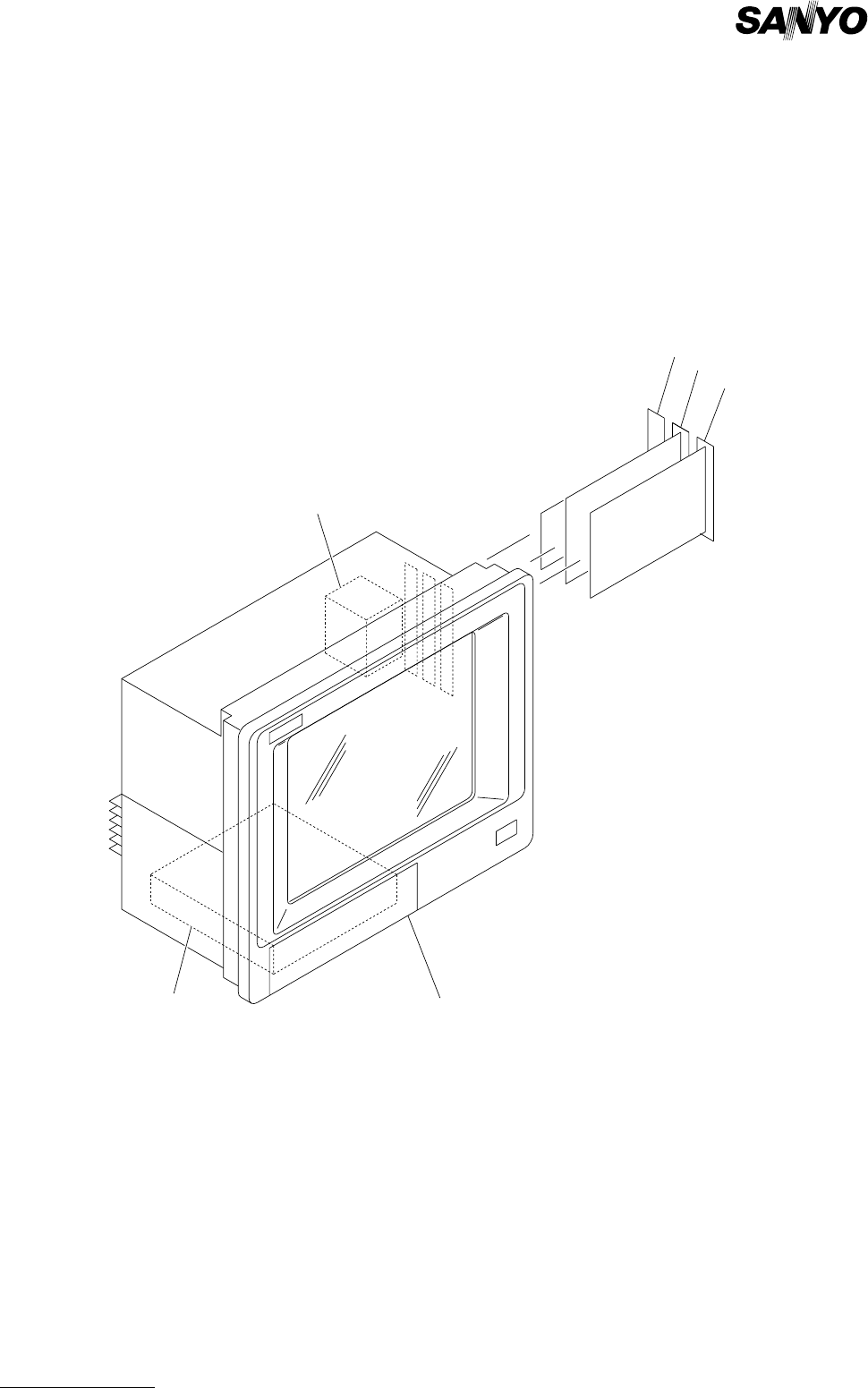

Fig. T-1 基板実装部 P.C.B. Layout
See Fig.C-1
Key No.1
2
1
3
4
Fig.T-1
TPM-110F/R
5
MODEL TPM-110F/R
0108-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
165
T-1
1 630 091 1886 P.C.B,MOUNT 1 U001, METE0R2/4*MIL-LIC/DONGLE
748T--210-001
2 630 089 2840 P.C.B,MOUNT 1 U002, SAB10-C4A1 748T--210-002
3 630 089 2543 UNIT,POWER 1 G005, PL-PW100 748T--210-003
4 630 089 2536 UNIT,I/O 1 D001, PL-FD210 748T--210-004
5 630 099 5466 P.C.B,MOUNT 1 C-NET(P1)W-100TX 748T--210-005
