4OM-1610 2-24 4. "Error" Window : Chap.2 4. "Error" Window When the machine detects an error, the following error window appears. [4] [5] [7] [8] [9] [10] [1] [2] [3] [6] Example of Error Window F4B4 …
4OM-1610
2-23
4. "Error" Window : Chap.2
Machine
Information Code
Display Area A (The outline of the Machine Information)
Display Area B (The details of the Machine Information)
80c302 Multi-layered Tray Safety Cover Lock cleared(Auto Run)
Cannot clear Lock because Cmpnt shortage is not found on Tray(Rear)
Magazine2(Upper).
-----
80c303 Multi-layered Tray Safety Cover Lock cleared(Auto Run)
Cannot clear Lock because Cmpnt shortage is not found on Tray(Front)
Magazine1(Lower).
-----
80c304 Multi-layered Tray Safety Cover Lock cleared(Auto Run)
Cannot clear lock because Cmpnt shortage is not found on Tray(Front)
Magazine2(Upper).
-----
80c401 Nozzle Exchange
There are neither a free space nor a nozzle for nozzle exchange.
-----
80c402 Nozzle Exchange
There is no free space for Nozzle in Stocker.
Please take off unnecessary Nozzle from Stocker, and then update the nozzle
data.
-----
80f001 Auto Opn.Mode
Start Auto Opn.Mode.
-----
80f002 Auto Opn.Mode
Stop Auto Opn.Mode.
-----
T4B2
0911-001
4OM-1610
2-24
4. "Error" Window : Chap.2
4. "Error" Window
When the machine detects an error, the following error window appears.
[4]
[5]
[7]
[8] [9] [10]
[1] [2]
[3]
[6]

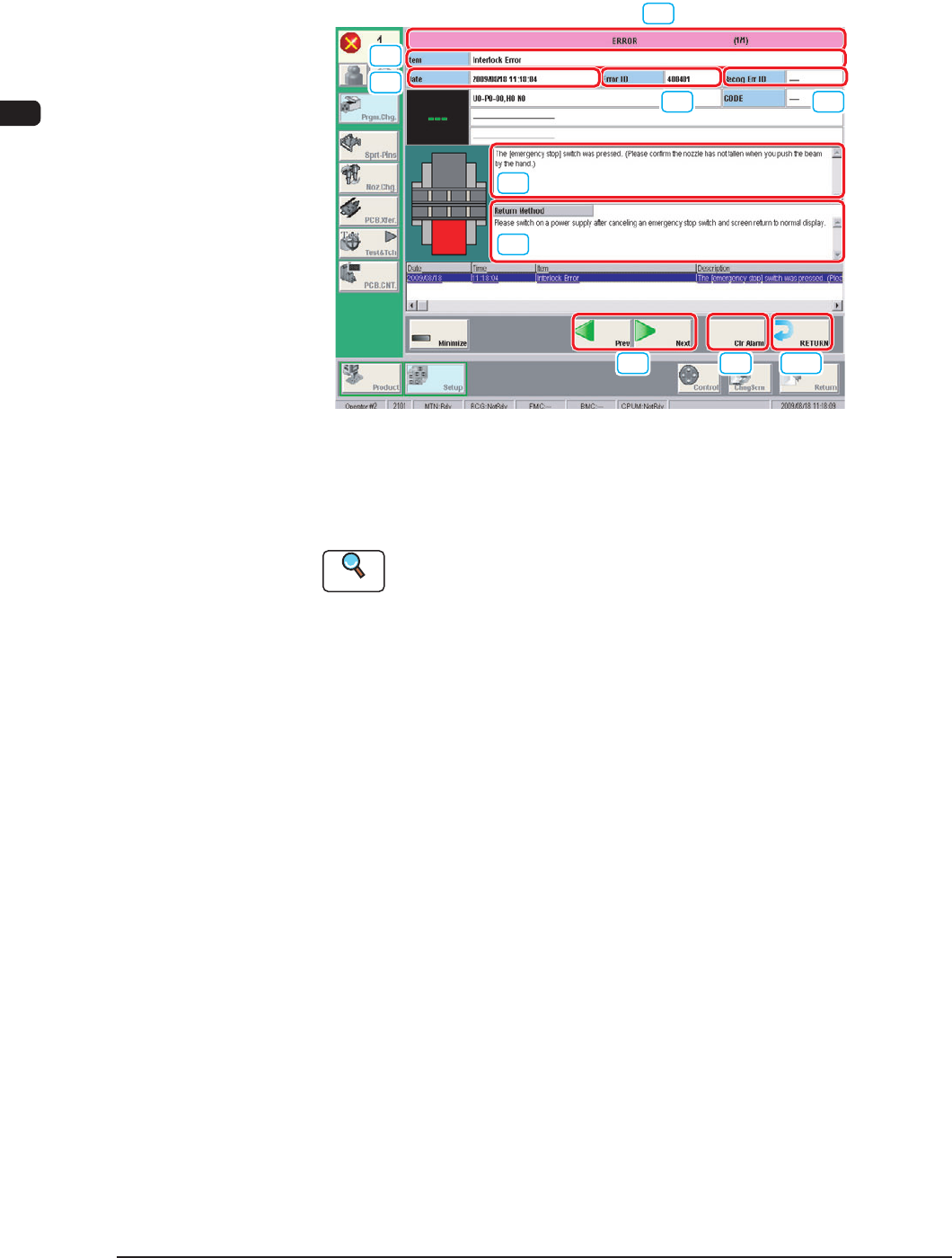

Example of Error Window F4B4
[1] Error ID
The error type is displayed using a 6-digit gure.
Reference
When an error has occured, use this ID as an index and refer to "Chapter 3
: Troubleshooting based Error ID" for details.
[2] Recognition Error ID
In this text box, the error type is displayed using an 8-digit gure.
[3] Error Name
In this text box, the error category is displayed.
[4] Description
In this text box, the error description is displayed.
[5] Remedy
In this text box, the error name, description, cause and remedial procedure
are described.
0911-001
4OM-1610
2-25
4. "Error" Window : Chap.2
[6] Date, Time
In this text box, the data and time when the error occurred are described.
[7] Error Description Page
The total pages for the error description and current page are displayed.
Example (3/5)
Total Pages : 5
Current Page : 3
[8] Page Change
[Previous error] Button : The previous page is displayed.
[Next error] Button
：
The next page is displayed.
[9] [Clear Alarm] Button
When this button is pressed, only the alarm buzzer is cancelled.
[10] [RETURN] Button
When this button is pressed, the alarm buzzer and error display are cancelled
and the previous window is returned.
•
Reset Procedure from "ERROR" Window
(1) T
ake notes of the desdriptions under "Error ID / Error Name / Description".
Notice
If you forget to make a note of the error description, refer to error
description saved in the "Recall" submenu in the "AUTO. OPN" menu.
(2) Press the [RETURN] button to resume the original window.
(3) Perform the correct remedial procedure referring to "Chapter 3:
Troubleshooting based on Error ID" using the error ID as an index, or
referring to the remedial procedure in your note.
0911-001
