3.2.10 Conveyor Section
Type H
PT1/8

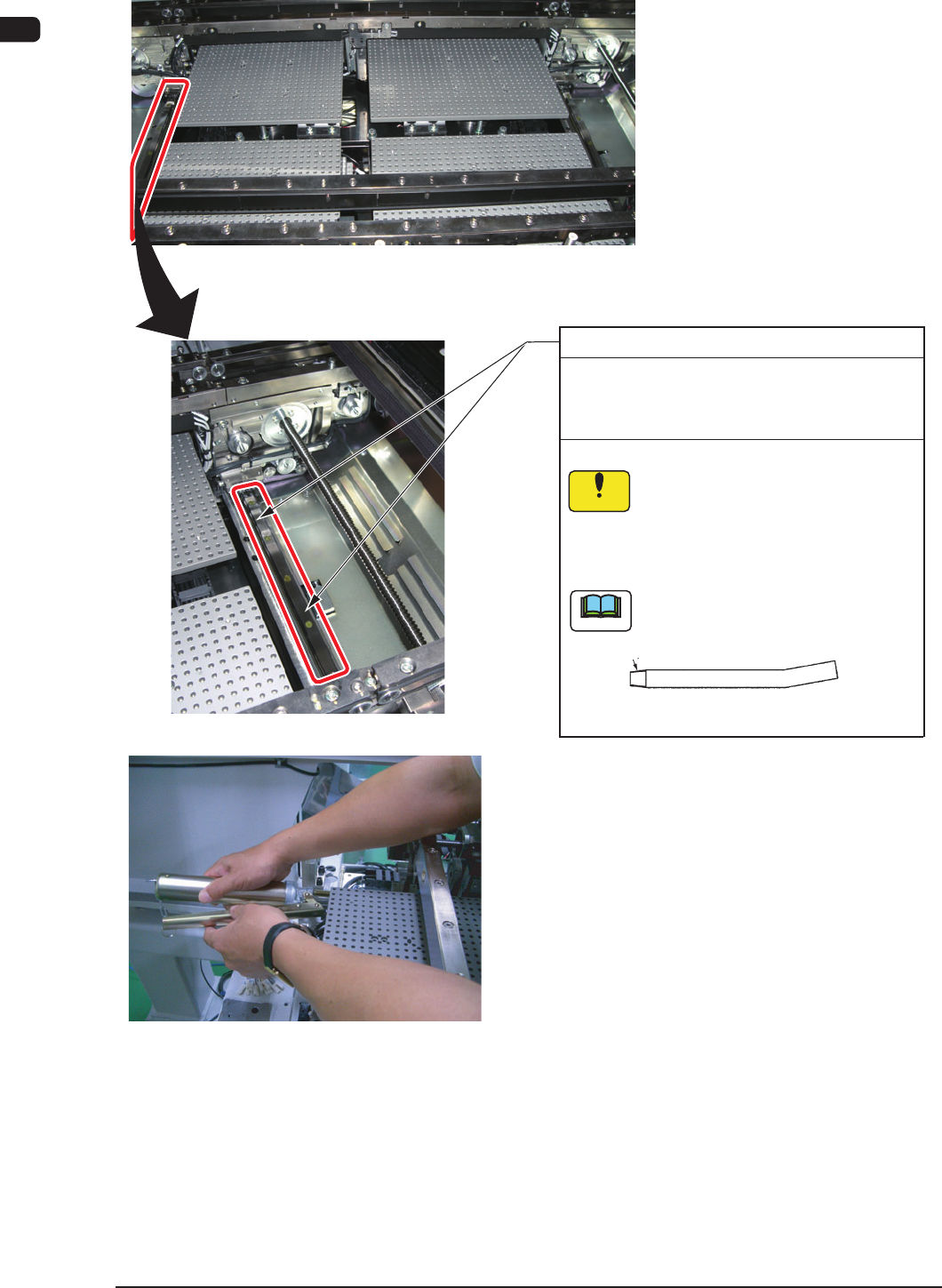

Lubrication Work Example
Linear Guides (2 places)
Every 3 Months Cleaning and Lubrication
(DAPHNE EPONEX GREASE No. 1)
Required Time: 5 minutes
Wipe off old grease with an oiled rag.
Take ample care not to leave any
waste threads after cleaning.
Use type H nozzle.
Notice
Note
Attach the H-type attachments to a hand grease
gun and supply new grease to the grease nipples
with the hand grease gun.
F4A33
4OM-1610
1-43
3. Maintenance Spots : Chap.1
0911-001
Support Pin Detection Sensors
Support Pin Detection Sensors (4 places)
Every Week Cleaning
Required Time: 1 minute
Clean the support pin detection sensors with
a rag.
F4A34
4OM-1610
1-44
3. Maintenance Spots : Chap.1

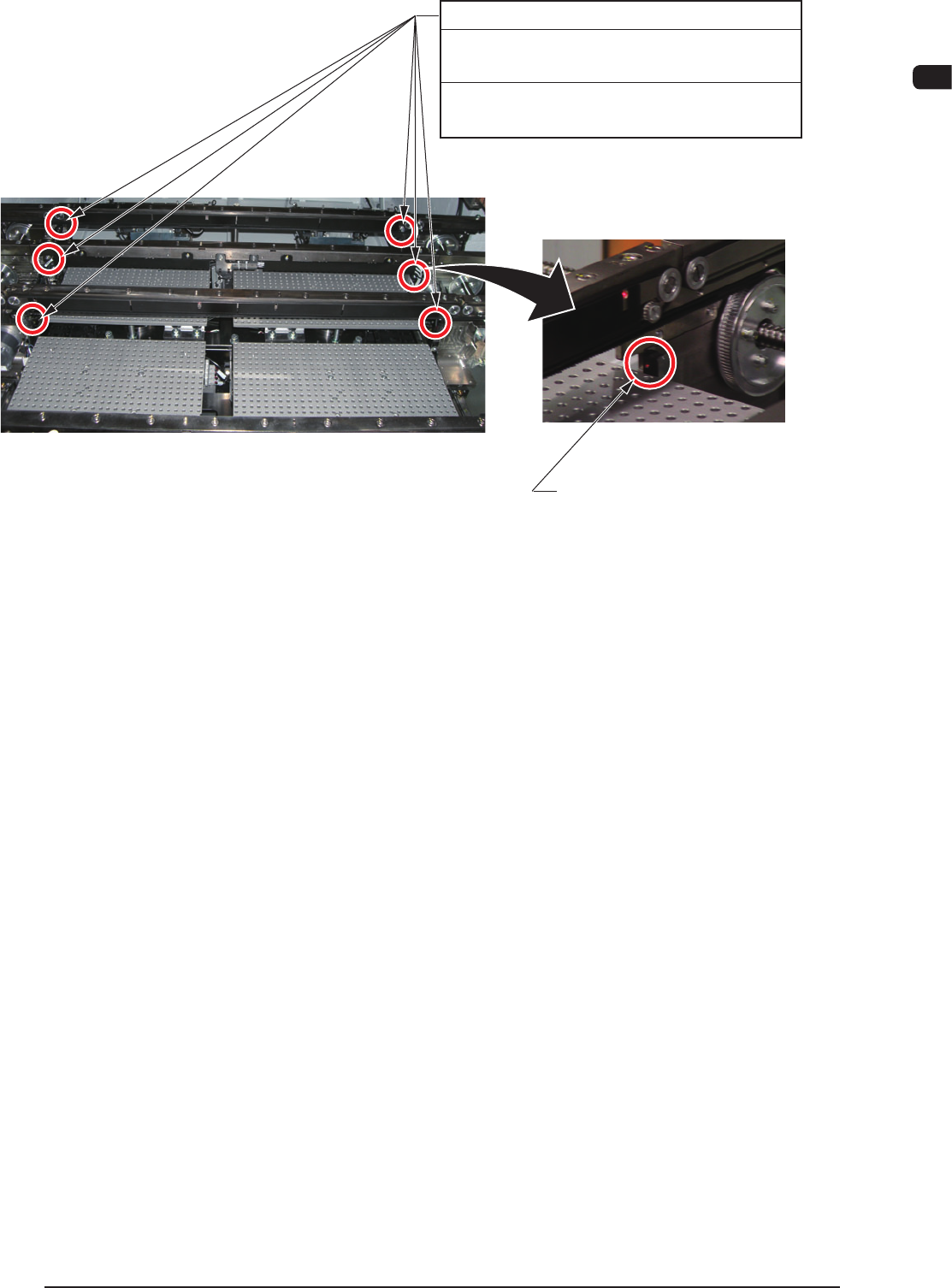

PCB Detection Sensor Mirror
At the time of Dual Transfer (Arrangement Image Diagram)
PCB Detection
Sensor Mirror
PCB Detection Sensors
PCB Detection Sensors
PCB Detection Sensor Fiber
P
CB
Detection Sensor Fiber
PCB Detection Sensors (6 places)
Every Week Cleaning
Required Time: 2 minutes
Clean the PCB detection sensors with a rag.
PCB Detection
Sensor
Fiber (4 places)
PCB Detection Sensor Mirror
(4 places)
PCB Detection Sensor Mirror
P
CB
Detection Sensor Fiber
PCB Detection Sensors
PCB Detection Sensors
F4A35
