ヘッド部周辺 LAF-201 10- 01 ヘッド部周辺 SHEET 2/2 ＜後側＞ H-ENCODE R H-MOT OR NS-ENCODER NS-MOT OR PA R TS CAMER A M-CCW LED for P ARTS CAMER A FIL TER COAXIAL LIGHTING NS-CCW PXS-NP NOZZLE POSITION SENSOR PXS-NC NOZZLE CAR TRIDGE SEN…

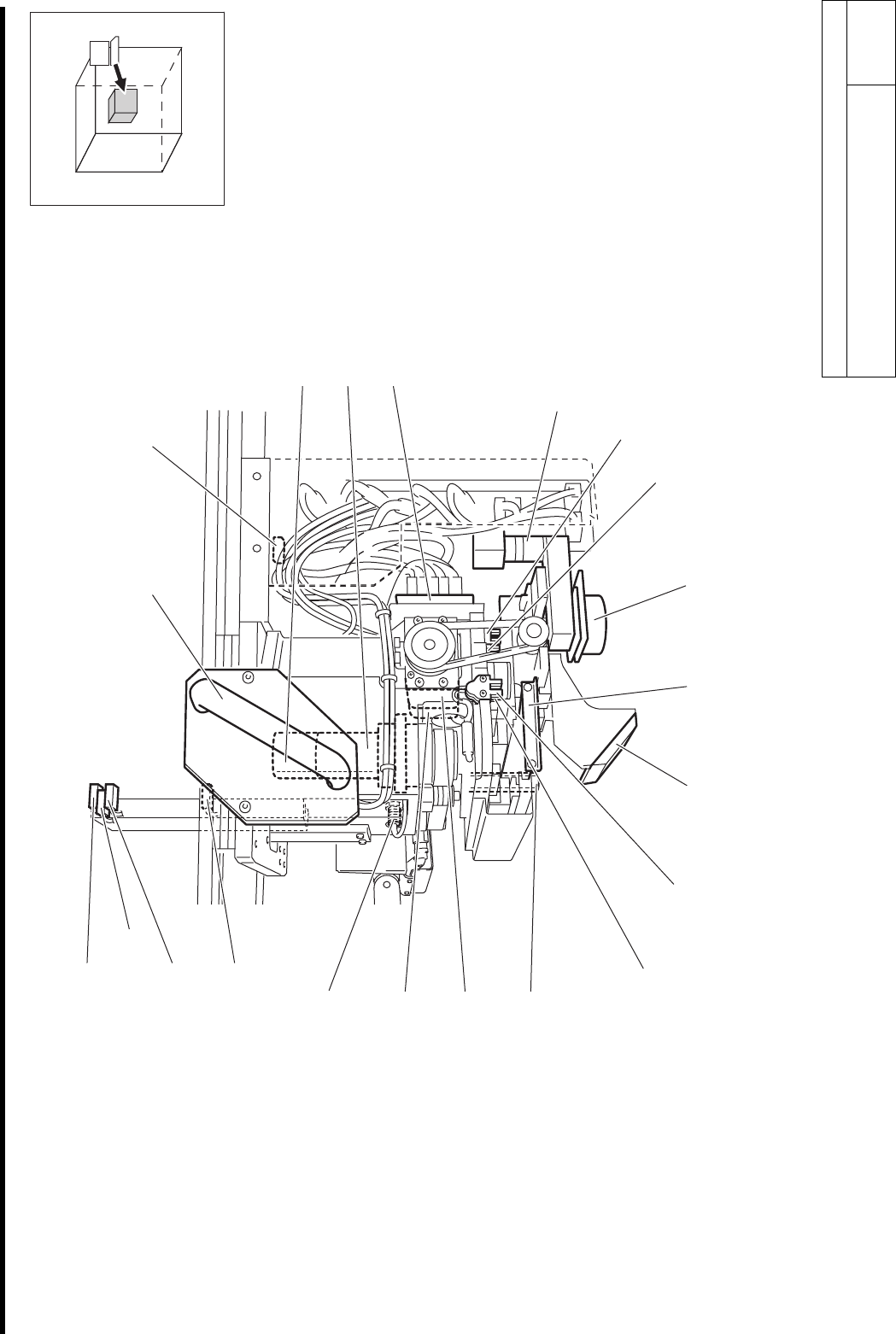

ヘッド部周辺
LAF-20110-01
ヘッド部周辺
SHEET
1/2

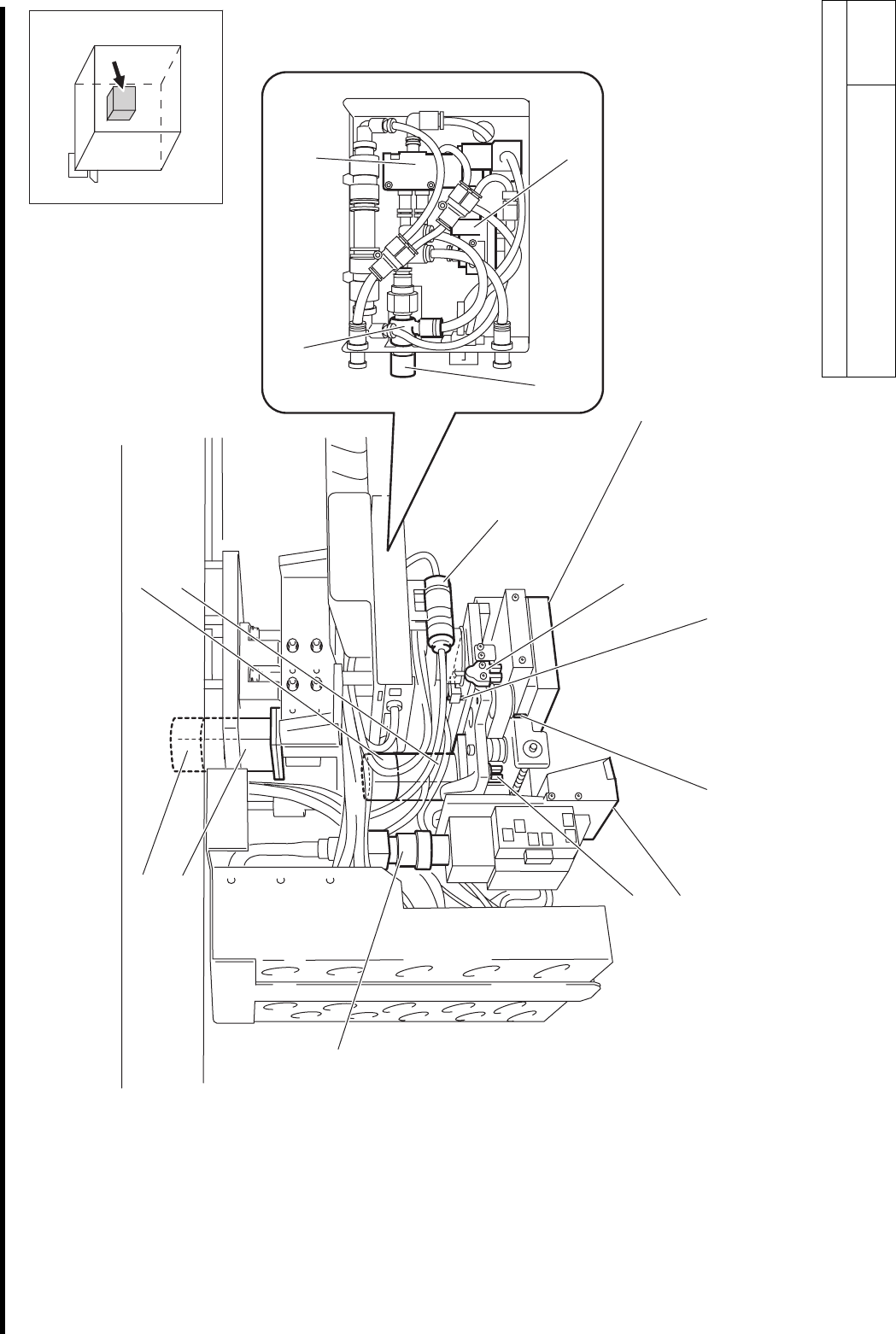

ヘッド部周辺
＜前側＞
HANDLE
R-MOTOR
R-ENCODER
R-ORG
NOZZLE CLAMP ASS’Y
M-ENCODER
M-MOTOR
NS-ORG
NS-CW
MIRROR CARTRIDGE LED for BOARD CAMER
A
M-ORG
M-CW
BOARD CAMER
A
C-LSB
H-CCW
H-ORG
H-CW
PXS-NR
NOZZLE RELEASE SENSOR
PRESSURE
SENSOR
ヘッド部周辺
LAF-20110-01
ヘッド部周辺
SHEET
2/2
＜後側＞
H-ENCODER
H-MOTOR
NS-ENCODER
NS-MOTOR
PA
R
TS CAMER
A
M-CCW
LED for PARTS CAMER
A
FILTER
COAXIAL LIGHTING
NS-CCW
PXS-NP
NOZZLE POSITION
SENSOR
PXS-NC
NOZZLE CARTRIDGE SENSOR
EJECTOR
SOLENOID VALVE
SOLENOID VALVE
FILTER for EJECTOR

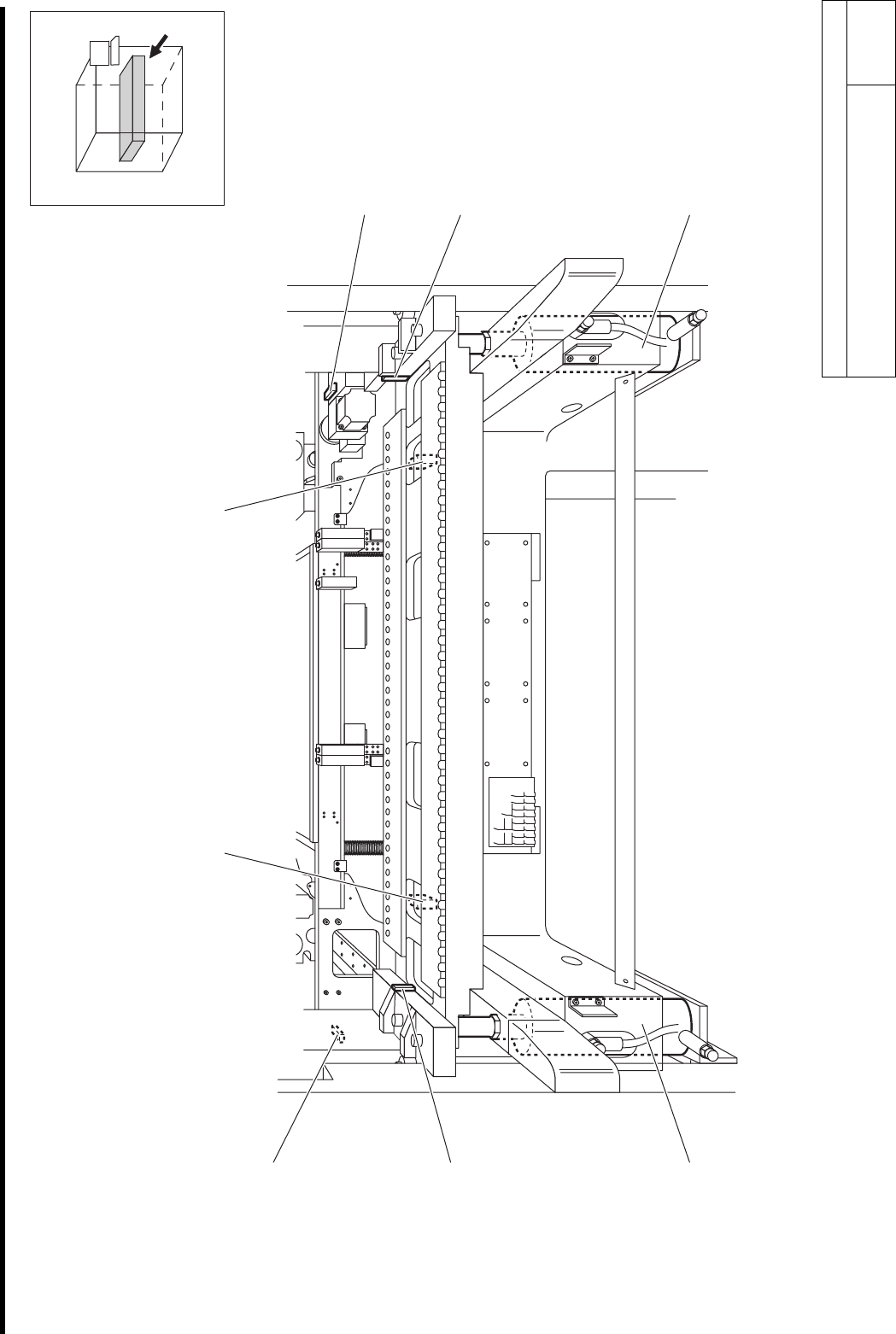

前側供給部周辺
LAF-20111-01
前側供給部周辺
SHEET
1/1
前側供給部周辺
FRONT CASSETTE
PLATE R CYLINDER
FRONT CASSETTE
PLATE L CYLINDER
LS110
FRONT CART CHANGE
POSITIONING DETECT L
(OPTION)
LS111
FRONT CART CHANGE
POSITIONING DETECT R
(OPTION)
BS63R
FRONT CASSETTE
FLOATING DETECT
BS63T
FRONT CASSETTE
FLOATING DETECT
BS112
FRONT CART CHANGE
UPPER DETECT L
(OPTION)
BS113
FRONT CART CHANGE
UPPER DETECT R
(OPTION)
