搬送部コネクタ・モータ LAF-201 15- 01 搬送部コネクタ・モー タ SHEET 1/1 搬送部コネクタ・モータ CONVEYOR ADJUST MOTOR C/V MOTOR 5 C/V MOTOR 3 DRV -CV5 DR V -CV3 DRV -CV2 DRV -CV1 CONVEYOR EJECT MOT OR C/V MOTOR 1 C/V MOTOR 6 DRV -CV6 DRV -CV4 C/V MOTOR 2…

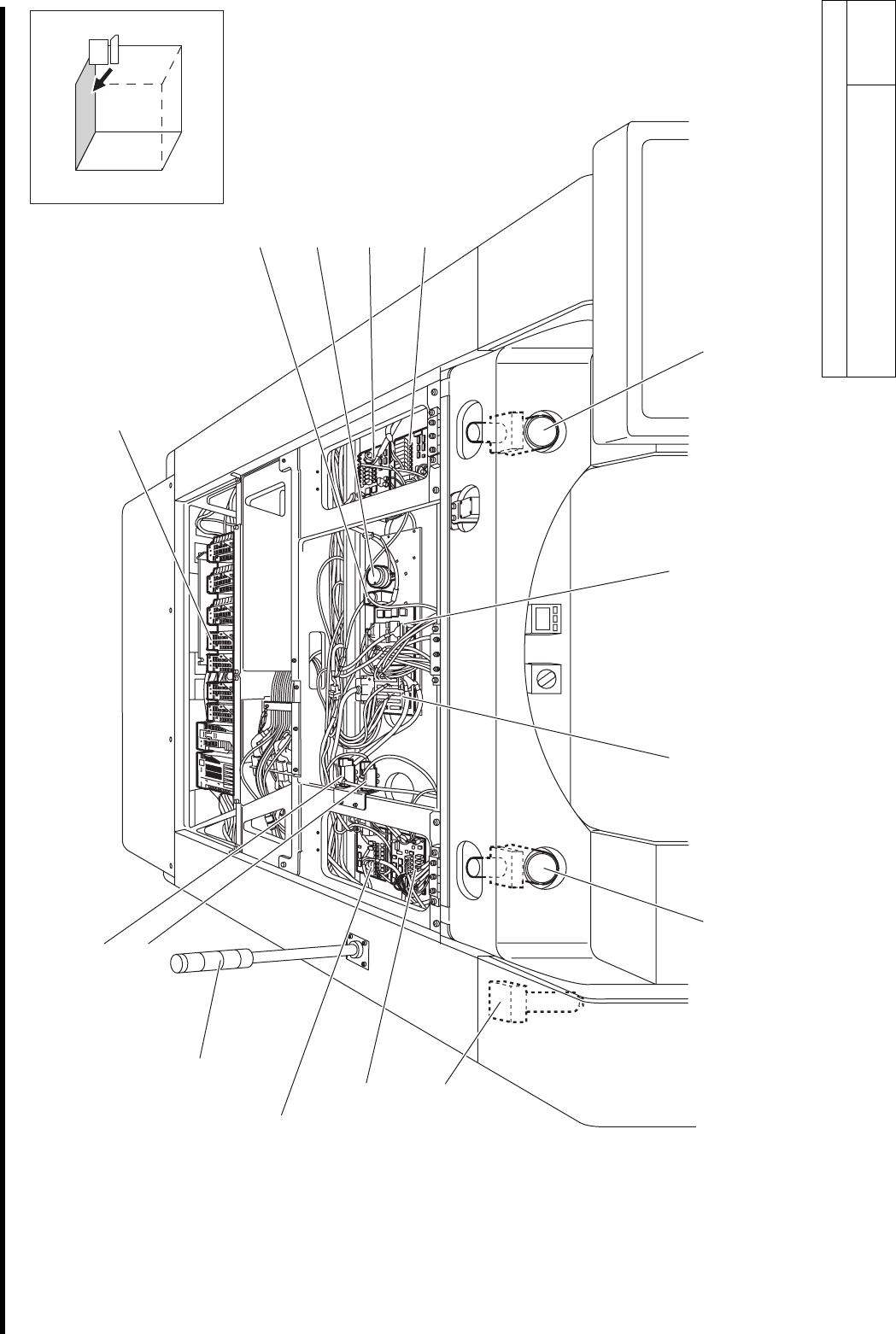

本体上部周辺
LAF-20114-01
本体上部周辺
SHEET
1/1
本体上部周辺
BUZZER
DR1
SDIOC-IN16-CHAT
HANDY CONSOLE
BUZZER
HANDY CONSOLE
CONTROL BOARD
IF II-LS
IF II-LS BOARD
DW1
SDIOC-OUT16
DW2
SDIOC-OUT16
DR2
SDIOC-IN16-CHAT
SIGNAL TOWER
SERVO UNIT
[LAF-20108-01]
REGULATOR for BLOWREGULATOR for VACUUM
MIST SEPARATOR
for BULK
SV1138
VACUUM ON
SV1136
DOOR LOCK

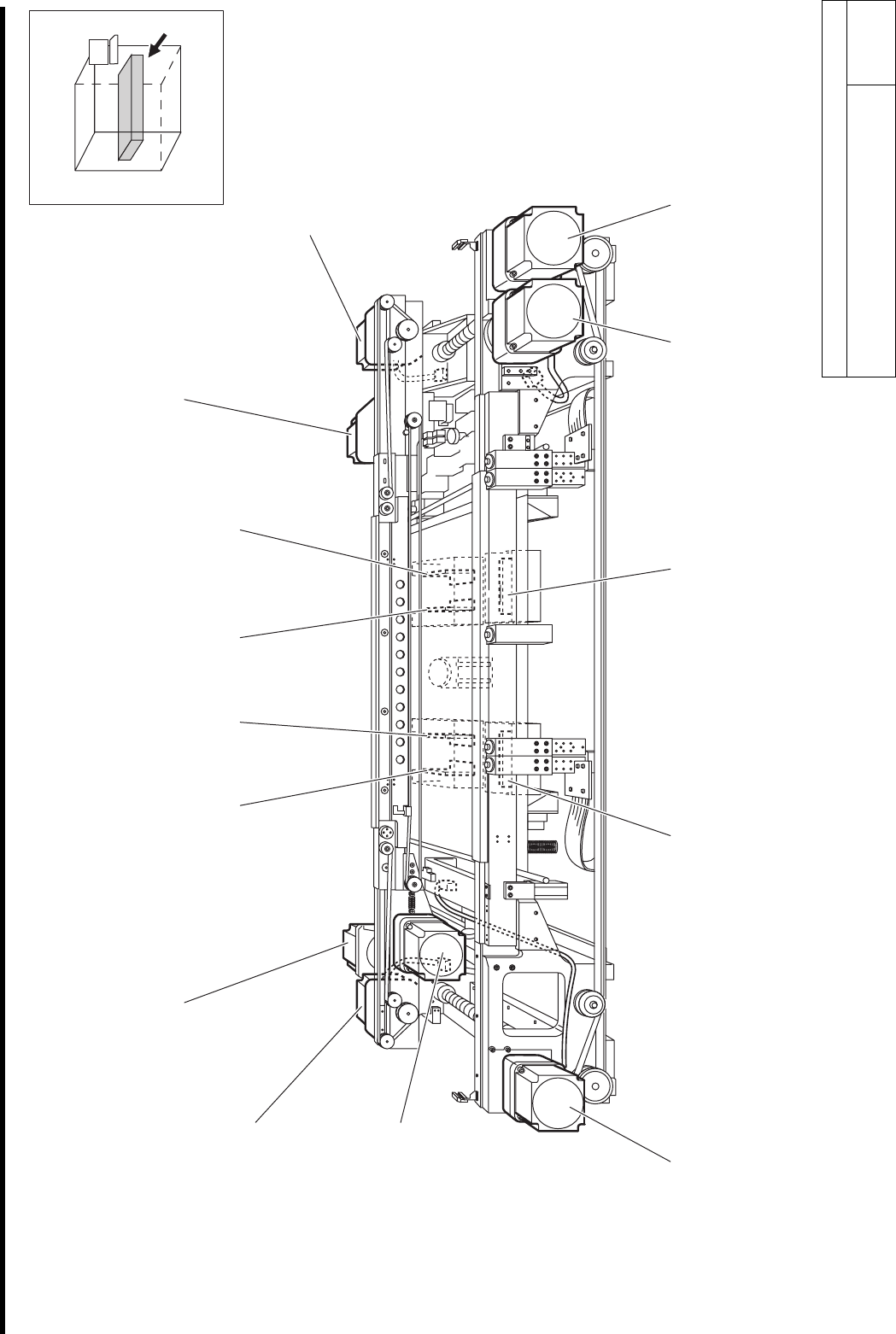

搬送部コネクタ・モータ
LAF-20115-01
搬送部コネクタ・モータ
SHEET
1/1
搬送部コネクタ・モータ
CONVEYOR ADJUST MOTOR
C/V MOTOR 5
C/V MOTOR 3
DRV-CV5 DRV-CV3 DRV-CV2 DRV-CV1
CONVEYOR EJECT MOTOR
C/V MOTOR 1
C/V MOTOR 6 DRV-CV6 DRV-CV4 C/V MOTOR 2 C/V MOTOR 4

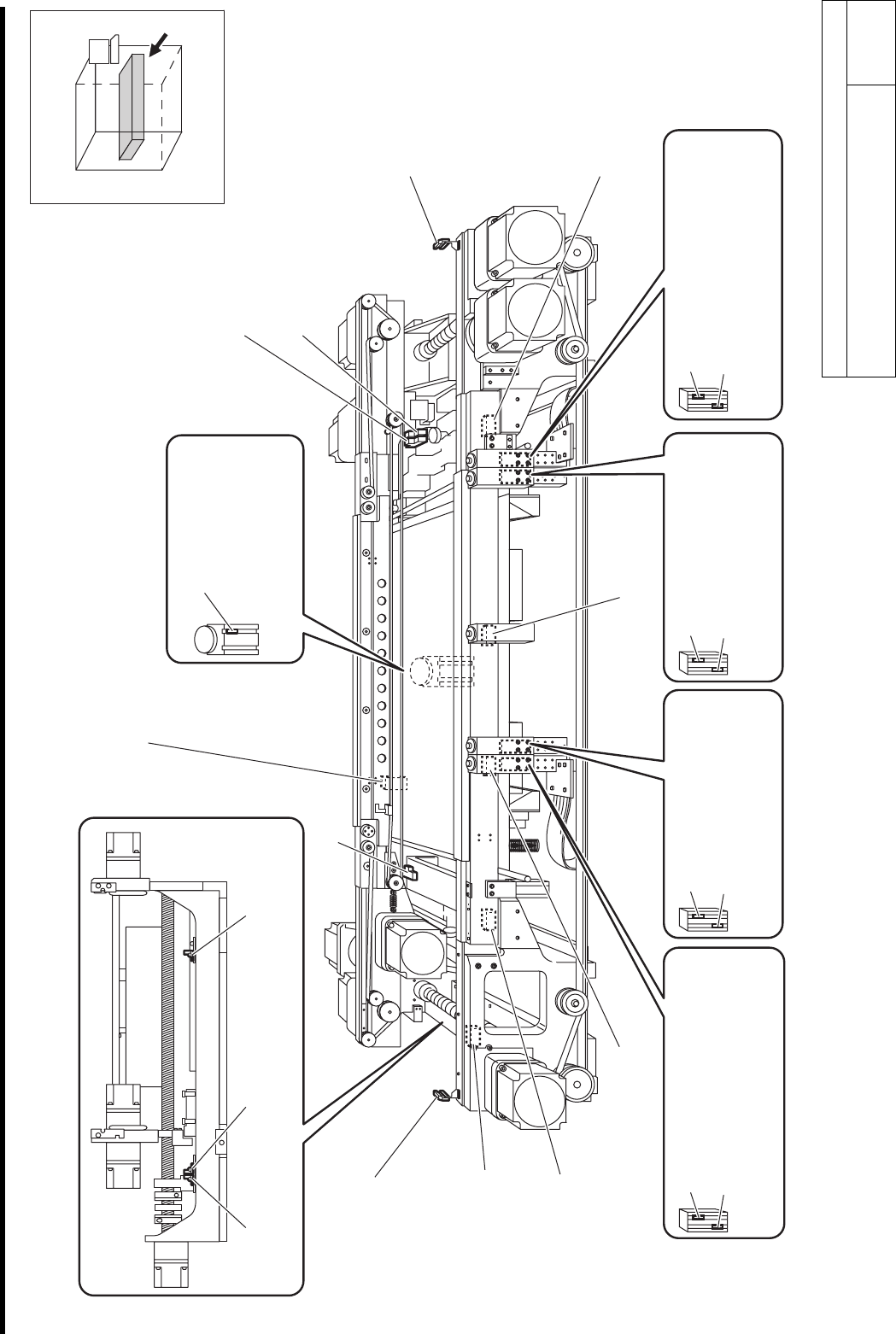

搬送部センサ
LAF-20116-01
搬送部センサ
SHEET
1/1
搬送部センサ
LS57L
PWB STOPPER UPPER-END
LS58L
PWB STOPPER LOWER-END
＜後側＞
LS59
LOCATE L UPPER-END
LS60
LOCATE L LOWER-END
＜後側＞
LS61
LOCATE R UPPER-END
LS62
LOCATE R LOWER-END
＜後側＞
LS57R
PWB STOPPER UPPER-END
LS58R
PWB STOPPER LOWER-END
＜後側＞
BS50
LOADING PWB
DETECT
BS54
UNLOADING PWB
DETECT
BS51
PWB WAITING
DETECT
BS53
PWB DETECT
BS52
PWB ARRIVAL
DETECT
BS118
PWB PASSAGE
DETECT
BS65
PWB SLOWING
DOWN DETECT
LS56
BACKUP PLATE
LOWER-END
LS55
BACKUP PLATE
UPPER-END
＜後側＞
A
D-CCW
A
D-ORG
A
D-CW
＜左側＞
CE-ORG
CE-CCW
CE-CW
