Installation Manual, Station Software Version 705.03 02/2011 Edition The following diagram sh ows the hardware compone nts of the computer sy stem for the SIPLACE SX1/SX2 and DX1/DX2 machines in one-compute r operation: …
Installation Manual, Station Software Version 705.03 02/2011 Edition
Camera system
for 2 placement areas with 4 placement heads
with component Vision and board position recognition
PS
Power supply
Production line
LAN (hub)
Customer LAN
1 2
CAN bus
Remote control
Machine
Structure of the computer unit and its interfaces
SIPLACE X-series
Basic set-up with 2 x Box PC 627B Serie / SW: 705 / 2-computer operation
Programming system
SIPLACE Pro
Programming system
and external networks
LAN
Computer unit
Video multiplexer
with splitter
VGA VGA
VGA VGA
to Box PCs 627B
+5 V
Output
DC/DC
converter
Input
Touch
screen 1
User
interface
Touch
screen 2
Keyboard
1
Keyboard
2
Mouse
1
Mouse
2
Monitor
1
Monitor
2
USB hub
+5 V
+24 V+24 V
to
video multiplexer
and
USB hub
+24 V
+48 V +5 V
Adapter
DVI-I
to VGA
Core 2 Duo T7400 / 2,16 GHz, HSP 1 GB
Vision computer
SIMATIC Box PC 627B
P C I - B u s
Hot-
link
PCI
Hot-
link
PCI
C
O
M
1
D
V
I
-I
U
S
B
1
U
S
B
2
U
S
B
3
HD
40 GB
L
A
N
1
U
S
B
4
L
A
N
2
Connection:
compact
flash drive
Adapter
DVI-I
to VGA
Pentium M 760 2 GHz, HSP 1 GB
Machine computer
SIMATIC Box PC 627B
P C I - B u s
C
O
M
1
D
V
I
-I
U
S
B
1
U
S
B
2
U
S
B
3
HD
40 GB
L
A
N
1
U
S
B
4
L
A
N
2
Connection:
compact
flash drive
CAN
1 2
PCI
COM 168
PCI-...
Core 2 Duo T7400 / 2,16 GHz, HSP 1 GB
Fig. 4-2: Hardware components of the computer system for the SIPLACE X-series in two-computer operation (block diagram)
18 of 58
Installation Manual, Station Software Version 705.03 02/2011 Edition
The following diagram shows the hardware components of the computer system for the SIPLACE
SX1/SX2 and DX1/DX2 machines in one-computer operation:
Camera system
for 1 placement area with 1 - 2 placement heads with
component vision and PCB position recognition
PS
power supply
Production line
LAN (hub)
Customer LAN
1 2
CAN-Bus
Machine
Structure of the computer unit and its interfaces
Use of SIMATIC Box PC 627B SIPLACE SX1/SX2
and DX1/DX2
Basic setup SW: 705 / 1 - Computer operation
Line computer
Siplace Pro
Line computer and
external networks
LAN
Computer unit
Touch -
screen 1
GUI
Touch -
screen 2
Key-
board 1
Key-
board 2
Mouse
1
Mouse
2
Monitor
1
Monitor
2
USB hub
+5 V
+24 V+24 V
zu
- Machine controller
- Video splitter
Video splitter
+24 V
Core 2 Duo T7400 / 2,16 GHz, MM 1 GB
Machine controller / PC1
SIMATIC Box PC 627B
P C I - B u s
Hot-
link
PCI
C
O
M
1
D
V
I
-I
U
S
B
1
U
S
B
2
U
S
B
3
HD
80 GB
L
A
N
1
U
S
B
4
L
A
N
2
+24 V
CAN
1 2
PCI
COM 168
+5 V
LAN hub / only for fall back strategy+5 V
VGA
Fig. 4-3: Hardware components of the computer system for SIPLACE SX1/SX2 and DX1/DX2 in one-computer operation (block
diagram)
For the SIPLACE DX4 machine the hardware components of the computer system in one-computer
operation are the same as displayed in figure 4-3 with the following variations:
- 2GB RAM
- A24 Hotlink cards
19 of 58
Installation Manual, Station Software Version 705.03 02/2011 Edition

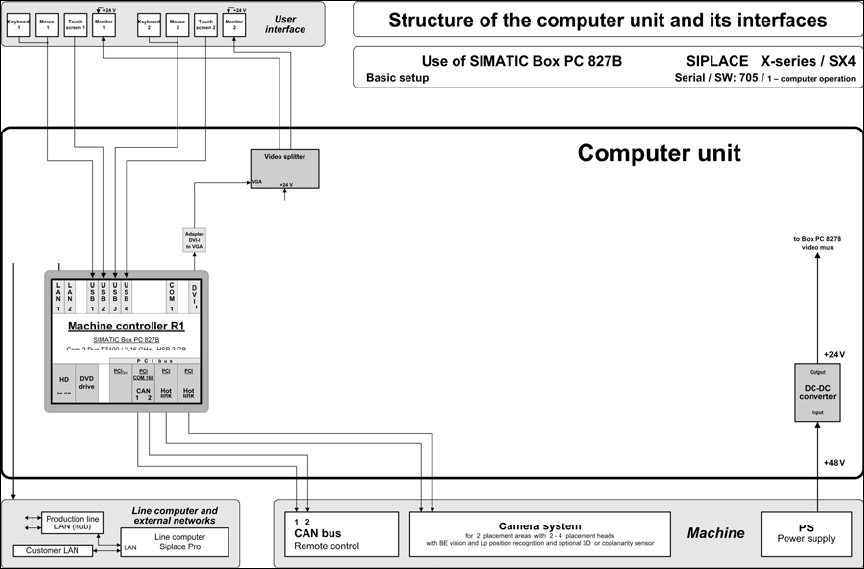

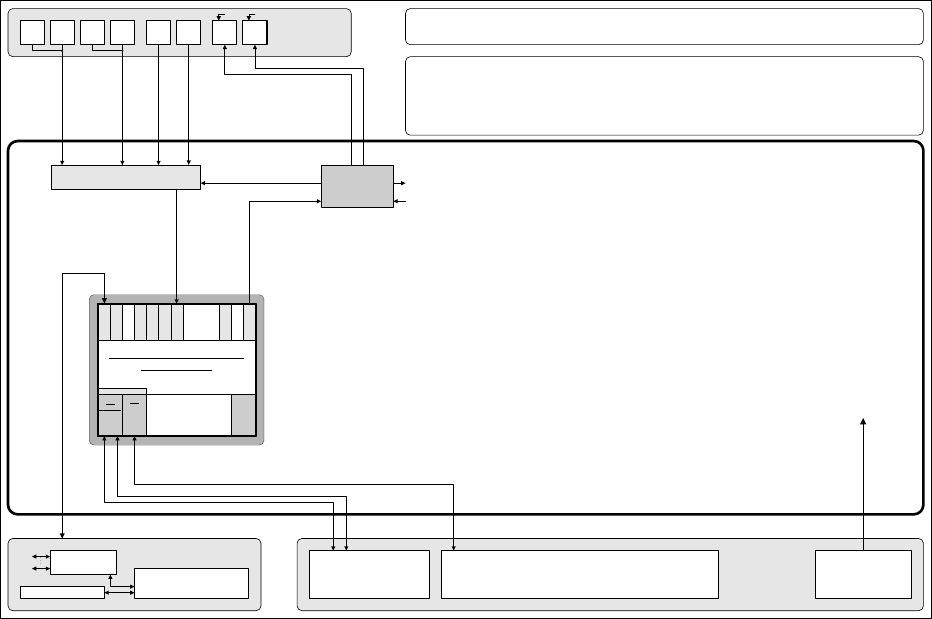

The following diagram shows the hardware components of the computer system for the SIPLACE X-series
and SX4 machines in one-computer operation:
Fig. 4-4: Hardware components of the computer system for the SIPLACE X-series and SX4 in one-computer operation (block
diagram)
20 of 58
