Installation Manual, Station Software Version 705.03 02/2011 Edition 22 of 58 4.2.2 Machine/Vision computer (i n one-computer operation) Name SIMATIC Box PC 627B CPU / clock frequency Core 2 Duo T7400 / 2,16 GHz RAM 1 GB…

100%1 / 116
Installation Manual, Station Software Version 705.03 02/2011 Edition
21 of 58
4.2.1 Machine/Vision computer (in two-computer operation)
Name
SIMATIC Box PC 627
CPU / clock frequency
Pentium M 760 / 2 GHz
RAM
1 GB
Hard disk
Yes
External DVD drive
pluggable via USB
Serial interfaces
1
USB interfaces and
external USB hub
Yes
Network
2x 100 MBit
Table 4-1: Machine/Vision computer hardware SIPLACE X-series
Name
SIMATIC Box PC 627B
CPU / clock frequency
Core 2 Duo T7400 / 2,16 GHz
RAM
1 GB
Harddisk
Yes
External DVD drive
pluggable via USB
Internal DVD drive
No
Serial interfaces
1
USB interfaces and
external USB hub
Yes
Network
2x 100 MBit
Table 4-2: Machine/Vision computer hardware SIPLACE X-series
4.2.1.1 Machine/Vision computer with 3D coplan sensor
The coplanarity module with the 3D coplan sensor (type 37) can be optionally installed in the SIPLACE X2,
X3, X4 and SX1/SX2 placement machines (item no. 00119919-xx for X-series, item no. 00519919-xx for
SX-series).
Installation Manual, Station Software Version 705.03 02/2011 Edition
22 of 58
4.2.2 Machine/Vision computer (in one-computer operation)
Name
SIMATIC Box PC 627B
CPU / clock frequency
Core 2 Duo T7400 / 2,16 GHz
RAM
1 GB (SX1/2 / DX1/2) / 2 GB (DX4)
Harddisk
Yes
External DVD drive
Yes
Internal DVD drive
No
Serial interfaces
1
USB interfaces and
external USB hub
Yes
Network
2x 100 MBit
A24 Hotlink cards
Yes (DX4) / No (SX1/2 / DX1/2)
Table 4-3: Machine/Vision computer hardware SIPLACE SX1/SX2 and DX-series
Name
SIMATIC Box PC 827B
CPU / clock frequency
Core 2 Duo T7400 / 2,16 GHz
RAM
2 GB
Harddisk
Yes
External DVD drive
No
Internal DVD drive
No
Serial interfaces
1
USB interfaces
Yes
External USB hub
No
Network
2x 100 MBit
Table 4-4: Machine/Vision computer hardware SIPLACE X-series and SX4
Installation Manual, Station Software Version 705.03 02/2011 Edition
4.3 Network configuration

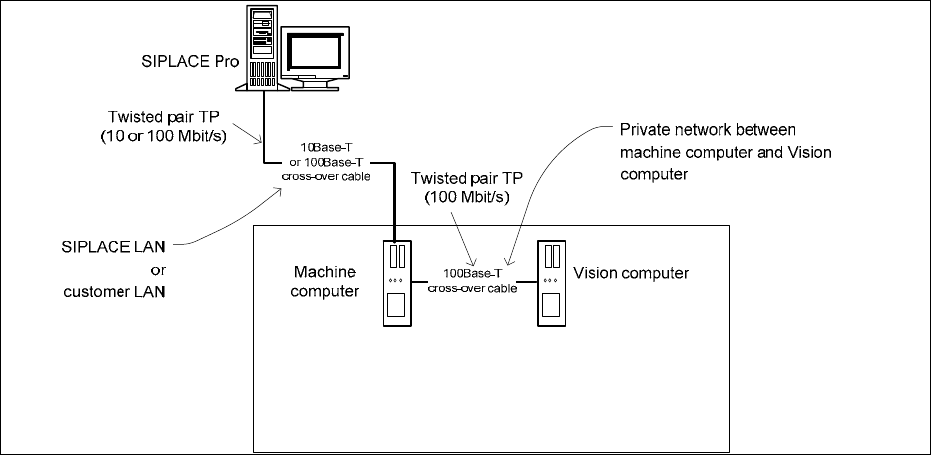

Fig. 4-5: Network connections between the machine and SIPLACE Pro
In two-computer operation a separate private network (100 Mbit/s) is set up between the machine
computer and the Vision computer via a subnet mask.
Fixed IP addresses for the machine computer and the Vision computer can thus be assigned for all
SIPLACE machines. These IP addresses are not known outside the private network, for instance in the
SIPLACE LAN or customer LAN.
These IP addresses need not be further configured by the operator while the station software is being
installed.
23 of 58
