Installation Manual, Station Software Version 705.03 02/2011 Edition As of station software version 705.03 you will have to set, whether the lamp indi cators on the placement machine towers shall be displaye d two-colore…
Installation Manual, Station Software Version 705.03 02/2011 Edition
The user settings are displayed.

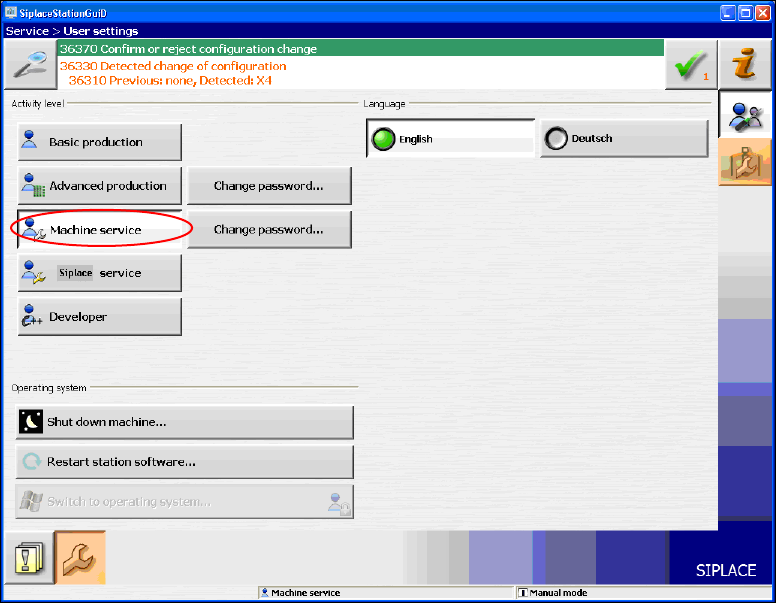

Fig. 7-3: Changing activity level
→ Click the Machine service button and enter the password to change into this activity level.
43 of 58
Installation Manual, Station Software Version 705.03 02/2011 Edition
As of station software version 705.03 you will have to set, whether the lamp indicators on the placement
machine towers shall be displayed two-colored (green / white) or three-colored (green / white / red) for all
placement machines of the SX-series and DX-series. More information about the two lamp indicator
systems can be found in the version description of the station software, item number 00196770-xx.
Fig. 7-4: Setting lamp indicators
→ Select the desired lamp indicators and click the Accept button.
44 of 58
Installation Manual, Station Software Version 705.03 02/2011 Edition
7.1 X-series placement machines
The following window is displayed for the X-series machines. Here you can edit, confirm or reject the Auto-
configuration.
Fig. 7-5: Confirming Auto-configuration for X-series
→ Click the Confirm changes and continue startup button to confirm the Auto-configuration.
If the Coplan computer has been installed, additionally the 3-D Coplan sensor has to be confirmed or
rejected.
computer has been installed, additionally the 3-D Coplan sensor has to be confirmed or
rejected.
45 of 58
