Installation Manual, Station Software Version 705.03 02/2011 Edition 5.2 Prep arations for installing the sof tware 5.2.1 Requirements Requirements for installing the SIPLACE so ftware and the Vision computer software: -…

Installation Manual, Station Software Version 705.03 02/2011 Edition

5 Installing the machine computer

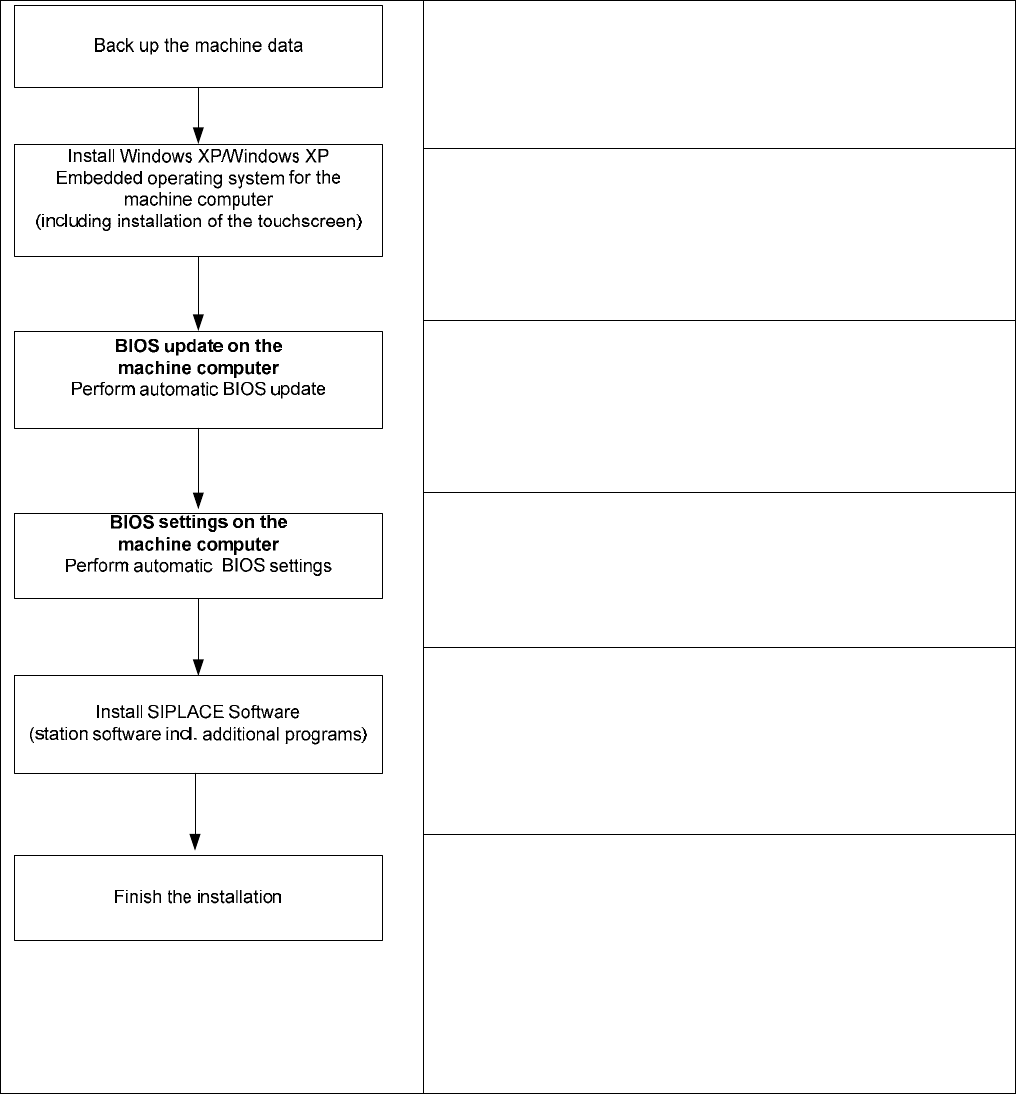

5.1 Installation sequence

See separate Installation Manuals for details on installing the

Windows XP or Windows XP Embedded operating system (item

no. 00196151-xx and 00196737-xx respectively)

For details on calibrating the touchscreen, see section 5.2.3.

See section 5.3.

See section 5.4.

See section 5.4.7.

24 of 58

Installation Manual, Station Software Version 705.03 02/2011 Edition

5.2 Preparations for installing the software

5.2.1 Requirements

Requirements for installing the SIPLACE software and the Vision computer software:

- The Windows XP embedded operating system with Service Pack 2 must be installed on the

machine computer and in two-computer operation on the Vision computer (see "Installation Manual

Operating System Windows XP Embedded SP2 for 70x", item number 00196737-xx)

- The Windows XP Professional operating system with Service Pack 3 and all current hotfixes

(SIPLACE Hotfix CD) must be installed on the machine computer and in two-computer operation on the

Vision computer (see the Installation Manual for the Windows XP operating system, item number

00196151-xx).

Note:

The Windows XP Embedded operating system is only used for new installations. On

upgrading to station software version 704 or higher, there will be no operating system

change from Windows XP Professional to Windows XP Embedded.

Under Windows XP Professional the default Windows display settings have to be changed and the

touchscreen has to be calibrated. Under Windows XP Embedded only the touchscreen has to be

calibrated. You must be logged on as the Administrator

in order to be able to carry out this work.

25 of 58

Installation Manual, Station Software Version 705.03 02/2011 Edition

5.2.2 Changing the display settings

→ Choose Start Æ Settings Æ Control Panel Æ Display.

→ Click the Settings tab.

→ Set the "Screen resolution" slider to "1024 by 768 pixels".

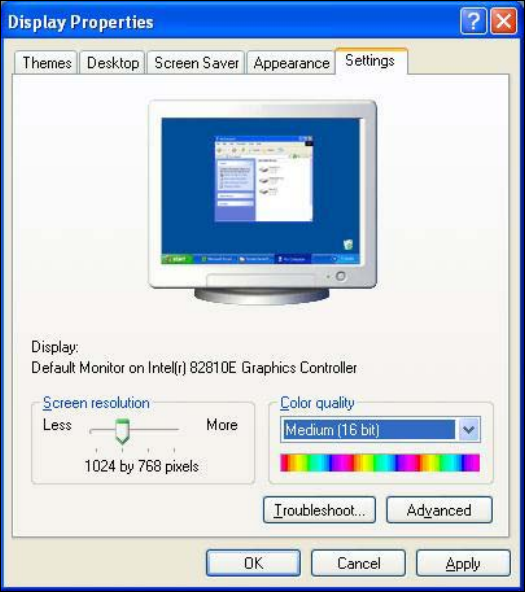

Fig. 5-1: Screen settings

→ Confirm the settings by clicking OK.

26 of 58
