Installation Manual, Station Software Version 705.03 02/2011 Edition 7 First booting af ter inst allation When a machine is booted for the first time after in stallation, the station software detects whi ch hardware comp…
Installation Manual, Station Software Version 705.03 02/2011 Edition
→ To do this, open the Start menu and choose Programs Æ SIPLACE Æ Shutdown Vision_SR (all).
Fig. 6-4: Shutting down the machine computer and Vision computer
→ Switch the machine off when the computer systems have shut down.
→ Switch the machine back on again. This then reboots the Vision computer and the machine computer.
40 of 58
Installation Manual, Station Software Version 705.03 02/2011 Edition
7 First booting after installation
When a machine is booted for the first time after installation, the station software detects which hardware
components are used via the Auto-configuration feature and configures itself accordingly. The operator is
prompted to confirm or reject the Auto-configuration on the GUI.
Fig. 7-1: Auto-configuration
→ Click the + sign in front of Auto-configuration to open the configuration list.
The used hardware components are displayed.
41 of 58
Installation Manual, Station Software Version 705.03 02/2011 Edition

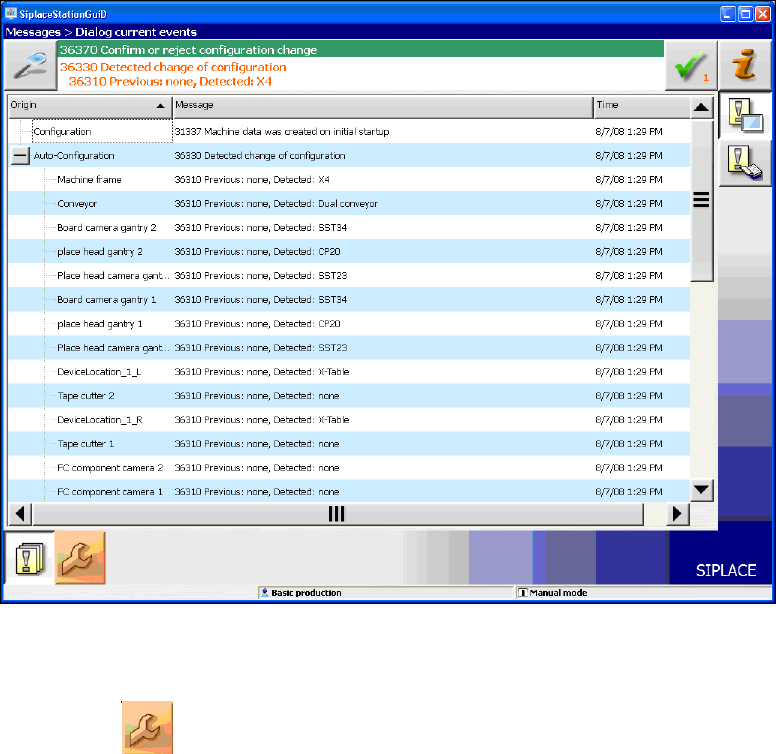

Fig. 7-2: Used hardware components
The Machine service activity level is required to execute the Auto-configuration.
→ Click the
icon to call the user settings.
