Installation Manual, Station Software Version 705.03 02/2011 Edition
As of station software version 705.03 you will have to set, whether the lamp indicators on the placement
machine towers shall be displayed two-colored (green / white) or three-colored (green / white / red) for all
placement machines of the SX-series and DX-series. More information about the two lamp indicator
systems can be found in the version description of the station software, item number 00196770-xx.

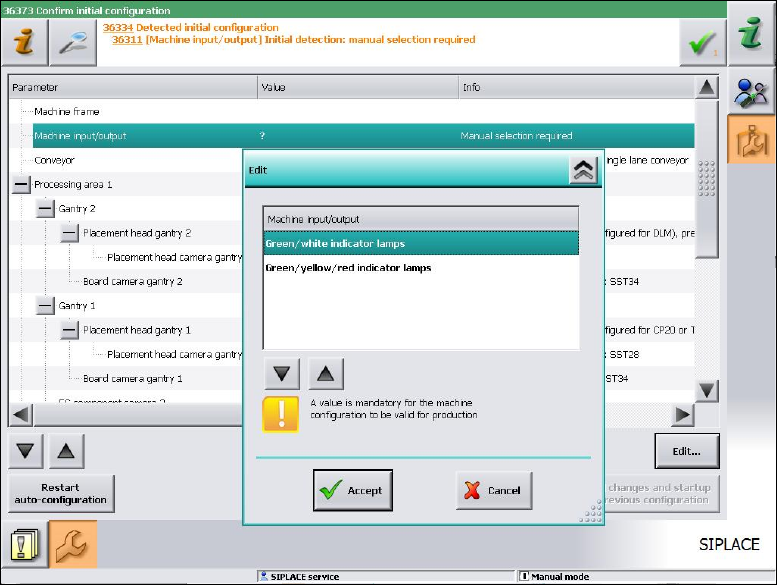

Fig. 7-4: Setting lamp indicators
→ Select the desired lamp indicators and click the Accept button.
44 of 58
Installation Manual, Station Software Version 705.03 02/2011 Edition
7.1 X-series placement machines
The following window is displayed for the X-series machines. Here you can edit, confirm or reject the Auto-
configuration.

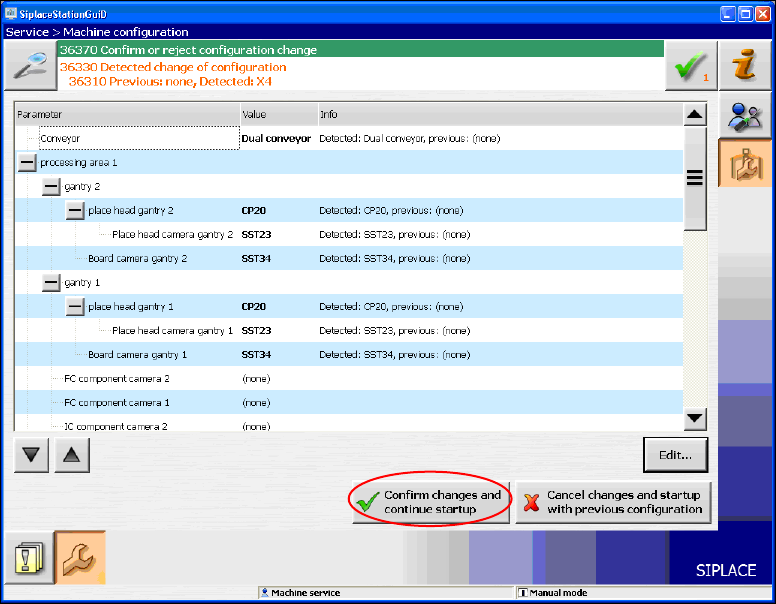

Fig. 7-5: Confirming Auto-configuration for X-series
→ Click the Confirm changes and continue startup button to confirm the Auto-configuration.
If the Coplan computer has been installed, additionally the 3-D Coplan sensor has to be confirmed or
rejected.
computer has been installed, additionally the 3-D Coplan sensor has to be confirmed or
rejected.
45 of 58
Installation Manual, Station Software Version 705.03 02/2011 Edition
7.2 SX1/SX2 placement machine
For the SX1/SX2 placement machine the following window is displayed, in which the Manual selection
required note informs, that the table configuration has to be selected manually, as this is not detected
automatically.

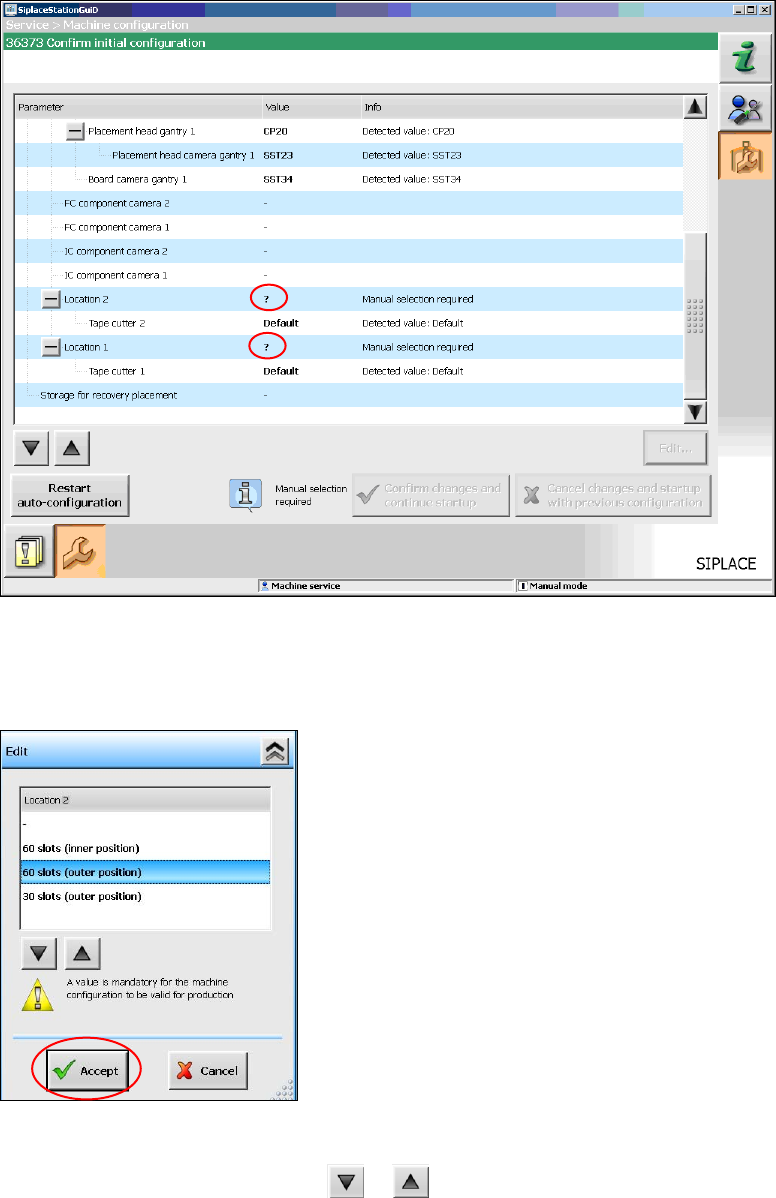

Fig. 7-6: Selecting table configuration
→ Click the ? question mark next to Location 2.
The selectable table configurations are displayed.
Fig. 7-7: Possible table configurations
→ Select a table configuration with or .
→ Click the Accept button.
