Installation Manual, Station Software Version 705.03 02/2011 Edition
5.4.6 Entering the Machine Identification Number (MID)

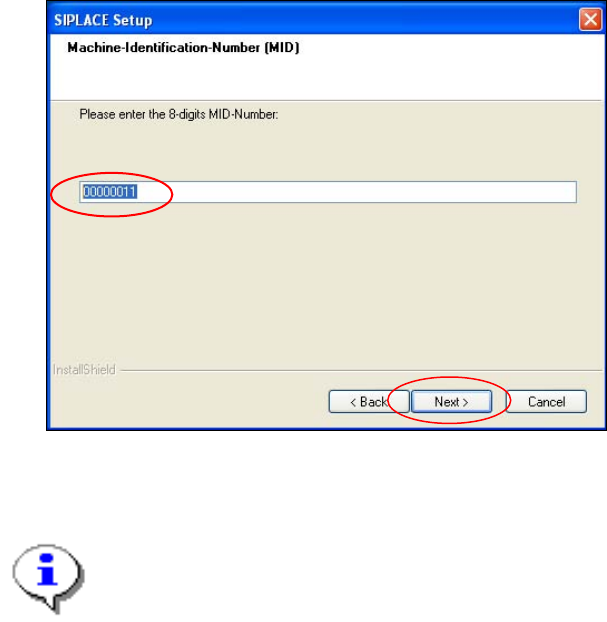

Fig. 5-9: Entering the Machine Identification Number (MID)
→ In the text box, enter the 8-digit machine identification number.
Note:
- You will find the MID on an adhesive label on the side of the protective covers directly below
the label for the number of the relevant location. The number following the dash after the
MID
specifies the location and is not entered here (e.g. 00000001-2 stands for location 2).
- After upgrading (from 60x and 70x) the correct MID is already inserted.
→ Click the Next button.
32 of 58
Installation Manual, Station Software Version 705.03 02/2011 Edition
Note:
The following screen only appears if applications are open which use files which must be
updated during installation of SIPLACE.

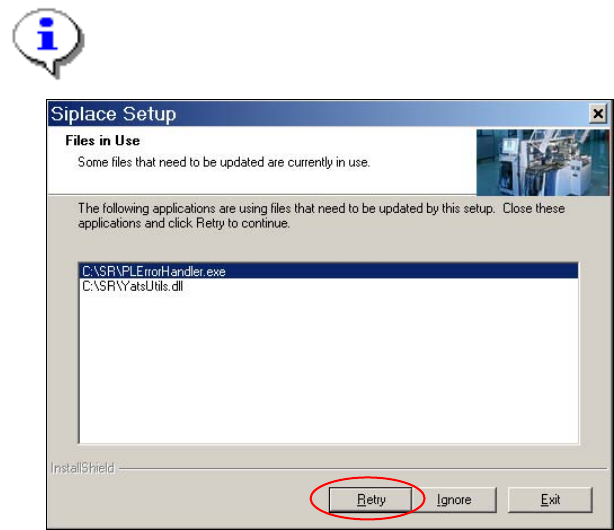

Fig. 5-10: Open applications
→ Close the applications or processes listed here by using the Windows Task Manager and then click
the Retry button.
The installation program now installs additional programs on the machine computer.
33 of 58
Installation Manual, Station Software Version 705.03 02/2011 Edition
5.4.7 Finalizing the installation
Note:
The status only lists the programs that have just been installed. If, for instance, the current
version of SIPLACE Vision was already installed, it is not listed here.
If errors occurred during installation, the status is indicated by the Error button being
displayed next to the program name instead of the Ok button.
→ If you wish to read the log of the installation of any program, click the Ok (or Error) button next to the
name of the program. The Notepad is started and displays the appropriate file.

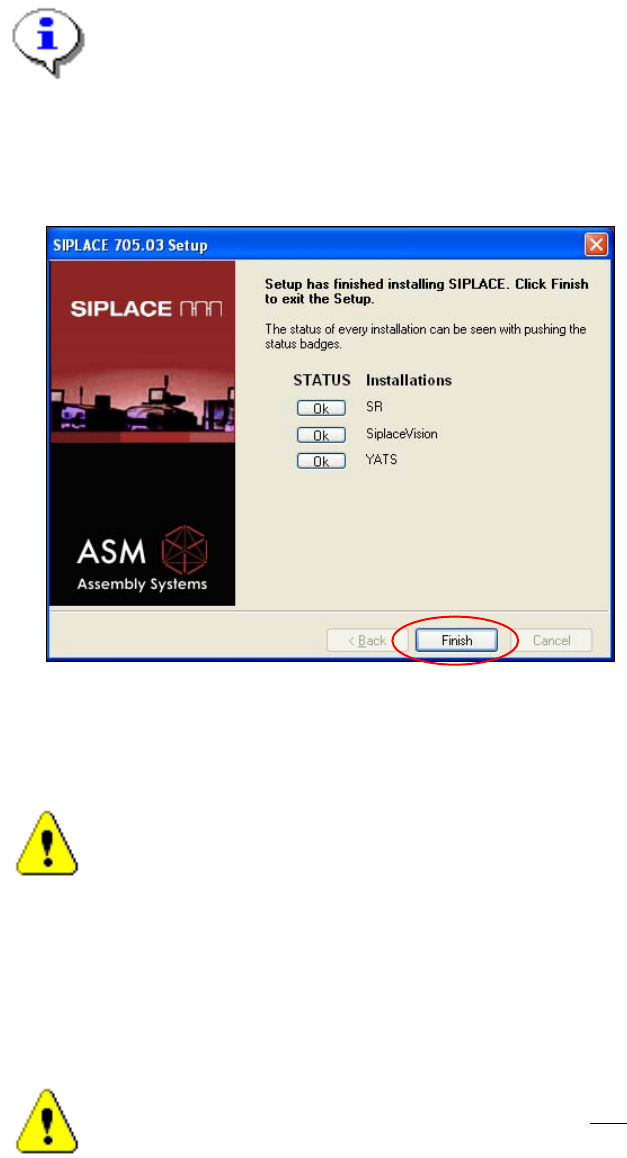

Fig. 5-11: Finalizing the installation
→ Click the Finish button.
Caution:
→ Wait a few seconds after you have clicked the Finish button, before you switch off
the computer / the machine!
As some installation steps are not performed until the end of the installation by the
InstallShield, the installation might otherwise be incomplete, what may cause problems during
further installations.
Optionally, you can now install the SIPLACE Smart GUI.
Caution:
In two-computer operation the Vision computer must also
be installed (see chapter 6)
before you shut down the machine computer, as the station will otherwise not boot
correctly due to version conflicts.
In one-computer operation the Vision computer software is automatically installed during
the station software installation.
