Downloading a
Product File
To download a product file from the printing machine to the Pocket Off Line
Editor, proceed as follows:
1. Ensure the Start Up Section has been carried out.

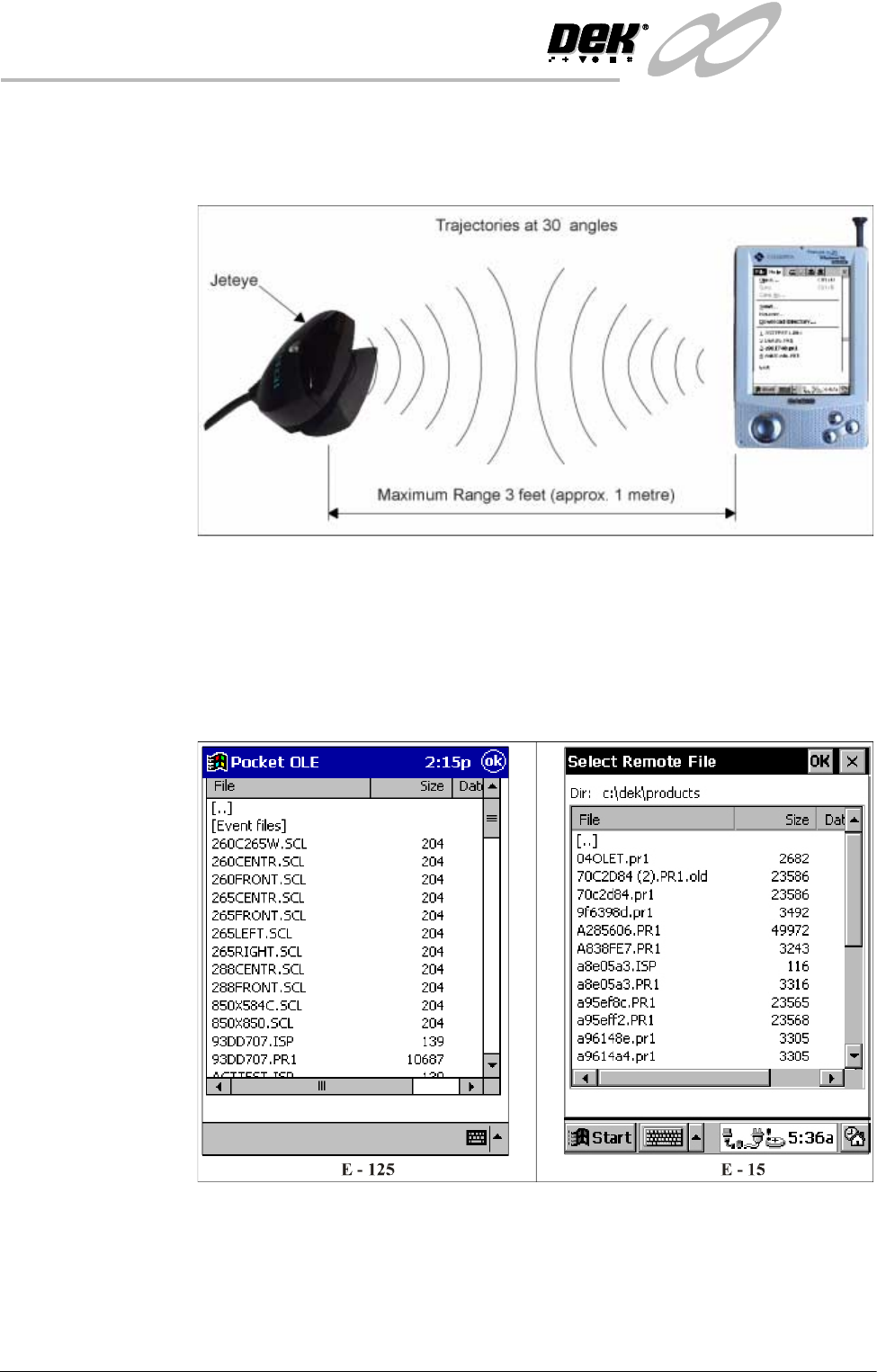

2. With reference to the above figure, aim the infrared port of the Palm-size PC
at the Jeteye.
NOTE
The CASSIOPEIA shown is the E-15, but the information is also valid for the
E-125.
3. Select Receive, the following window is displayed:
4. Select the required product file from the list.
INFINITY
0$&+,1(352*5$00,1*
67$*(&/2$'$352'8&7),/(
Software Version 7 User Manual 1.11

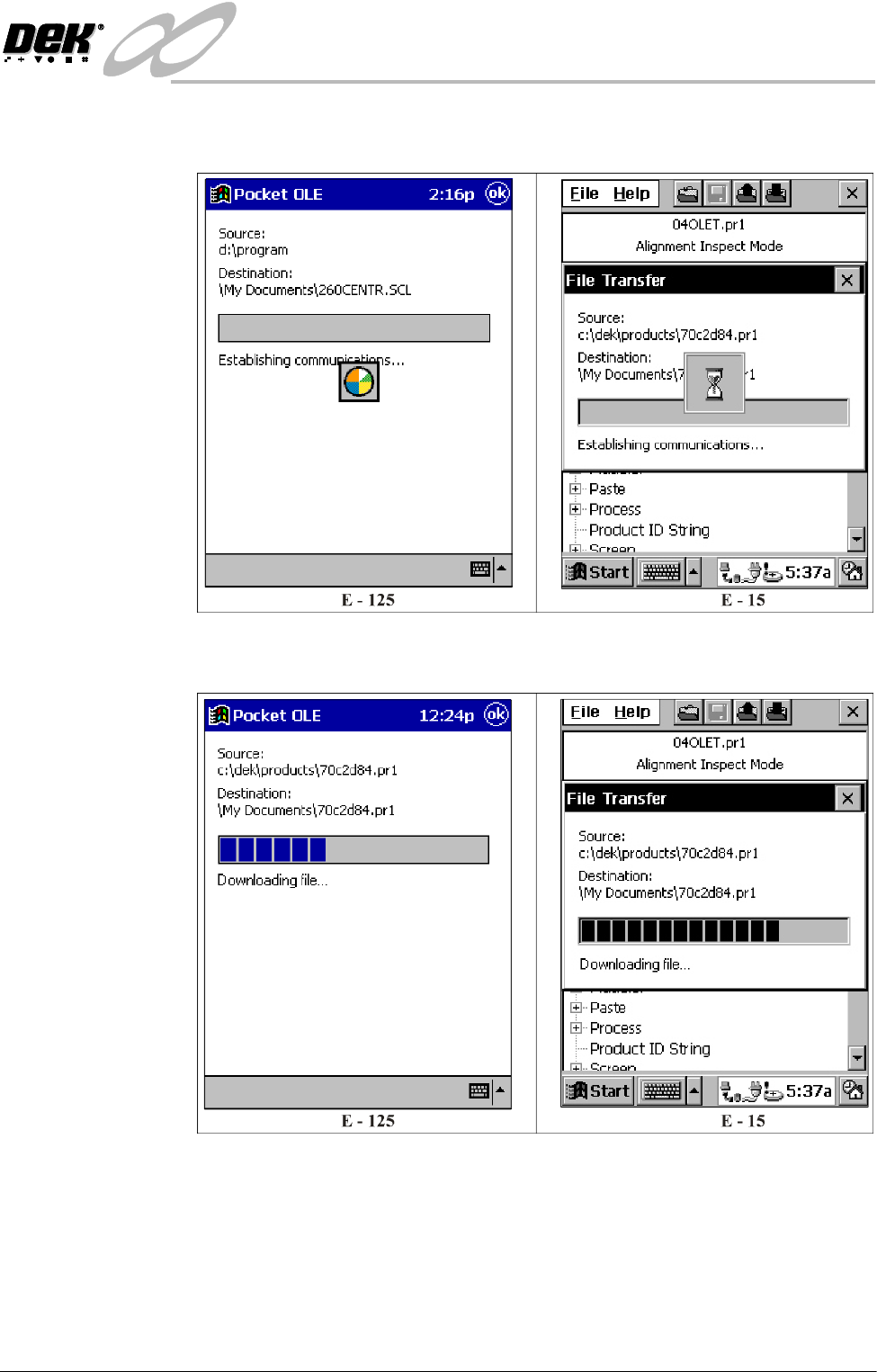

5. Select OK, the following window is displayed whilst the Pocket Off Line
Editor establishes communications with the printing machine.
6. Once communications are established the following window is displayed
whilst the selected product file is downloaded:
INFINITY
0$&+,1(352*5$00,1*
67$*(&/2$'$352'8&7),/(
1.12 User Manual Software Version 7

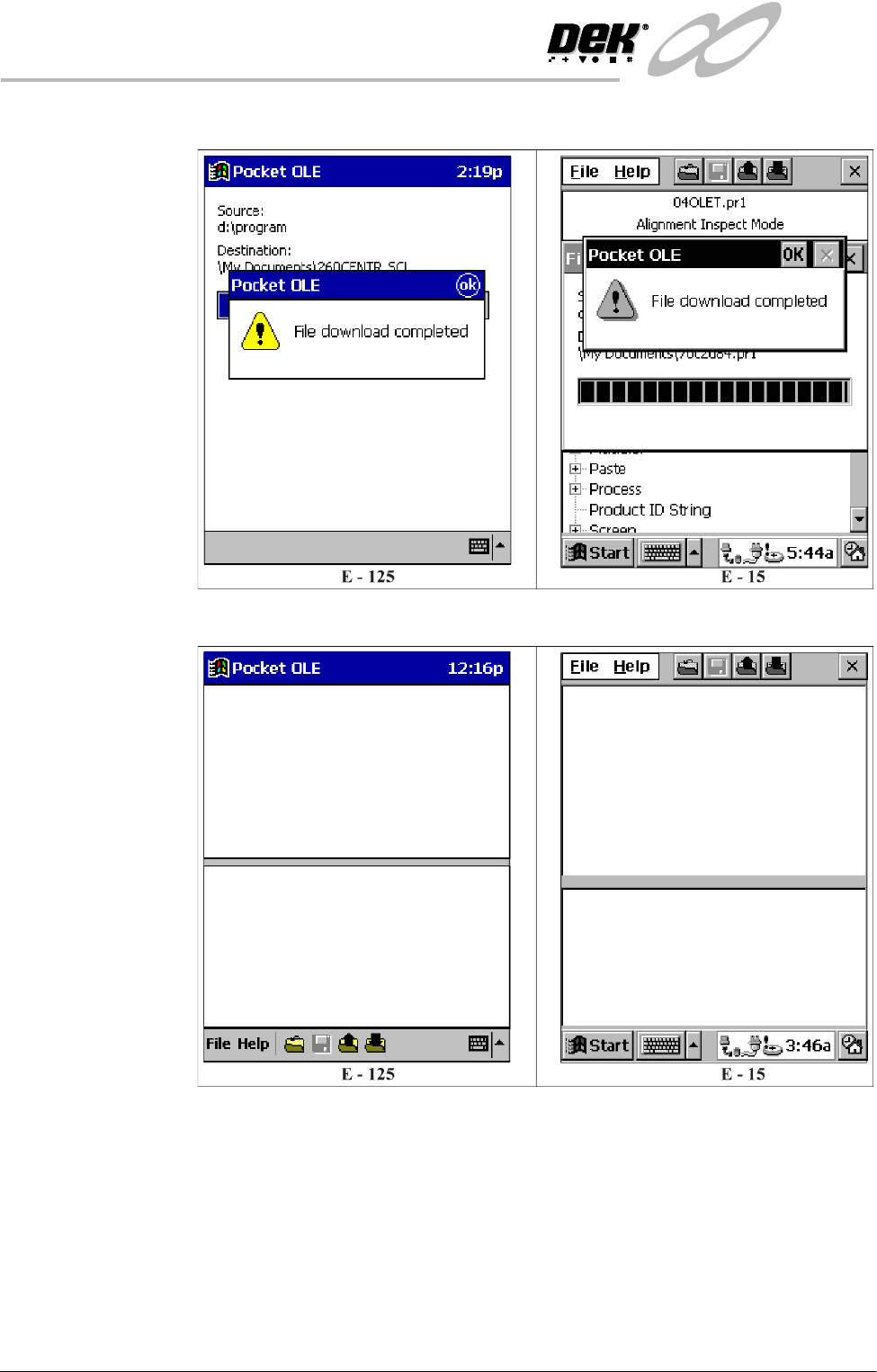

7. Once the download is complete the following window is displayed:
8. Select OK to return to the main menu.
