INFINITY 0$&+,1 (352*5 $00,1* 67$*( 35,17 ,167(30 2'( Soft ware Ver sion 7 User Manual 1.81 4. Load the solder paste onto the screen 5. Close the front printhead cover . 6. Press t he Syste m button. 7.…
INFINITY
0$&+,1(352*5$00,1*
67$*(35,17,167(302'(
1.80 User Manual Software Version 7
STAGE 8 - PRINT IN STEP MODE
If using squeegees with paste dispenser continue with Section Auto Paste
Dispense. If using squeegees without paste dispenser go to Section Manual
Paste Load. If using ProFlow go to Section Run a Product in Step Mode.
Auto Paste
Dispense
1. Select Paste Load (F3).
2. Select Auto Dispense (F1).
3. Select Exit (F8).
4. Go to Section Run a Product in Step Mode.
Manual Paste Load
WARNING
SOLDER PASTE AND SOLVENTS. WHEN USING OR HANDLING ANY SOLDER
PASTE OR SOLVENT FORMULATION THE MANUFACTURERS’ RECOMMEND
SAFETY PRECAUTIONS MUST BE STRICTLY ADHERED TO.
1. Select Paste Load (F3).
2. Select Manual Load (F2).
3. Open the front printhead cover.
Run Head
Paste
Load
Clean
Screen
Adjust Setup Monitor Maint.
Auto
Dispense
Manual
Load
Load
Cart.
Print
Directn
Exit
Auto
Dispense
Manual
Load
Load
Cartrdge
Print
Directn
Exit
Run Head
Paste
Load
Clean
Screen
Adjust Setup Monitor Maint.
Auto
Dispense
Manual
Load
Load
Cart.
Print
Directn
Exit
INFINITY
0$&+,1(352*5$00,1*
67$*(35,17,167(302'(
Software Version 7 User Manual 1.81

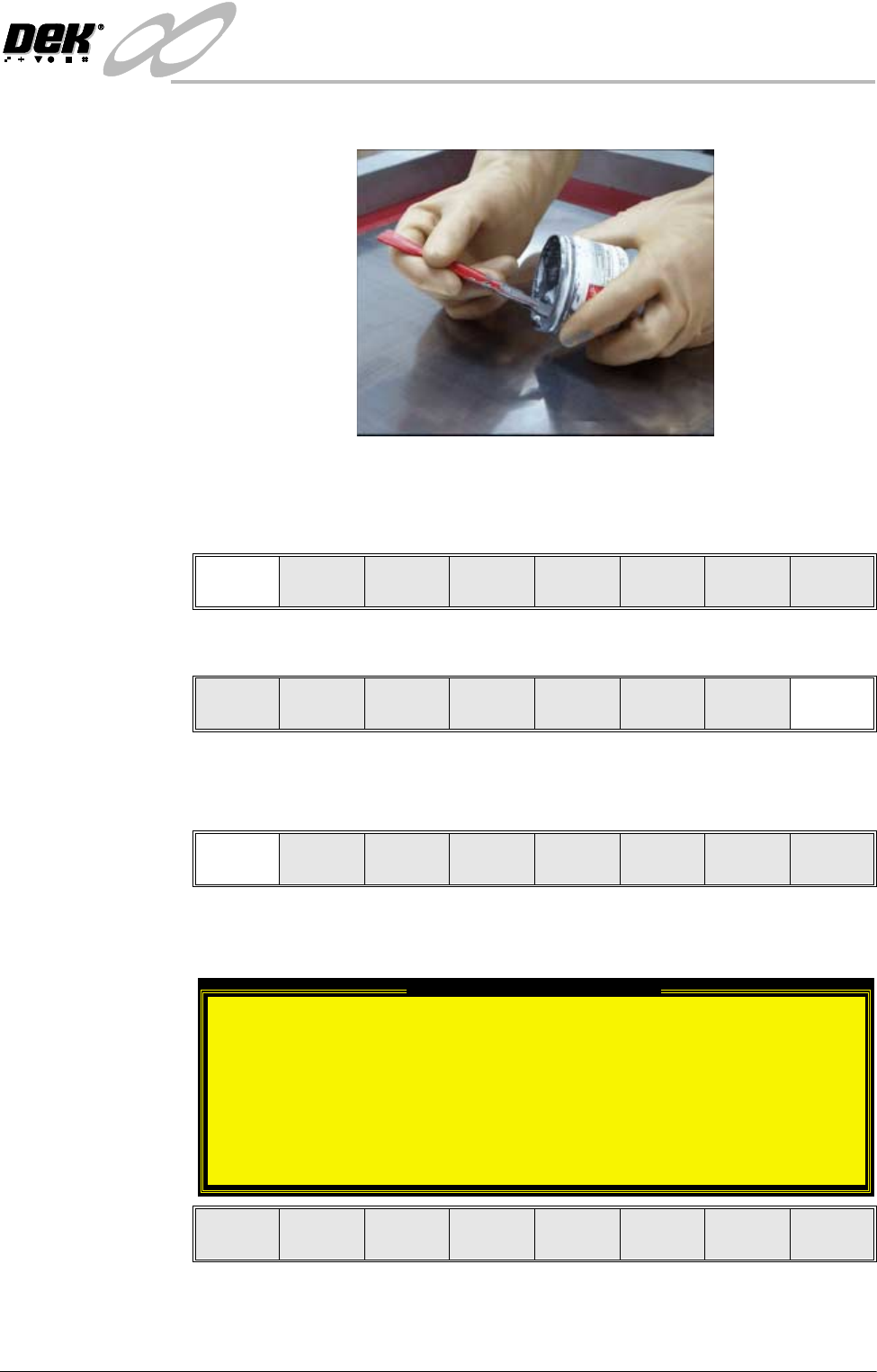

4. Load the solder paste onto the screen
5. Close the front printhead cover.
6. Press the System button.
7. Select Continue (F1).
8. Select Exit (F8)
Run a Product in
Step Mode
1. Select Run (F1).
If the Camera Idle Position in Set Preferences is set to Behind Rail, the
following window and menu bar is displayed:
Selecting Continue Run clears the warning window and the print cycle
continues.
Continue
Auto
Dispense
Manual
Load
Load
Cart.
Print
Directn
Exit
Run Head
Paste
Load
Clean
Screen
Adjust Setup Monitor Maint.
Camera Behind Rail Warning
The CAMERA HOME POSITION is set to 'Behind
Rail'
Ensure that no tooling pins or other
obstructions are on the table behind the
rear rail, as these could cause damage to
the camera.
This option will only have an effect for
boards that are less than 250mm wide.
This option can be disabled from the set
preference page.
Continue
Run
End
Run
INFINITY
0$&+,1(352*5$00,1*
67$*(35,17,167(302'(
1.82 User Manual Software Version 7
Selecting End Run clears the warning window, the print cycle is aborted and
control is returned to the ready page.
If the Unload Board Start in Set Preferences is set to Separation, the follow-
ing window and menu bar is displayed:
Selecting Continue Run clears the warning window and the print cycle
continues.
Selecting End Run clears the warning window, the print cycle is aborted and
control is returned to the ready page.
NOTE
If Camera Idle Position is set to Behind Rail and Unload Board Start is set
to Separation, the warning windows appear one after the other in the order
shown above.
2. Load a board on to the conveyor.
3. Select Auto Board (F1).
4. Select Step (F1).
5. Select Step (F1).
6. Select Step (F1).
Unload Board Speedup Warning
The UNLOAD BOARD SPEEDUP option is set to
'Separation'
With this option enabled it should be noted
that there is only a minimal clearance
between the underside of the board and any
tooling being used, while the board is being
unloaded.
This option must not be used for boards that
are populated on the underside, as this
could damage the boards.
Continue
Run
End
Run
Auto
Board
Manual
Board
Knead
Paste
Exit
Step Head
Inspect
Setup
Single Exit
Step Head
Inspect
Setup
Single Exit
Step Head
Fiducial
Setup
Adjust
Search
Step
Search
Reset
Single Exit
