INFINITY 0$&+,1 (352*5 $00,1* 67$*($ 0 $*1(7,& 3,//$56722/,1 * Soft ware Ver sion 7 User Manual 1.31 15. Se lect Lower Head (F2). The following window and menu bar is displayed: 16. Remove the Head Prop. …
INFINITY
0$&+,1(352*5$00,1*
67$*($0$*1(7,&3,//$56722/,1*
1.30 User Manual Software Version 7

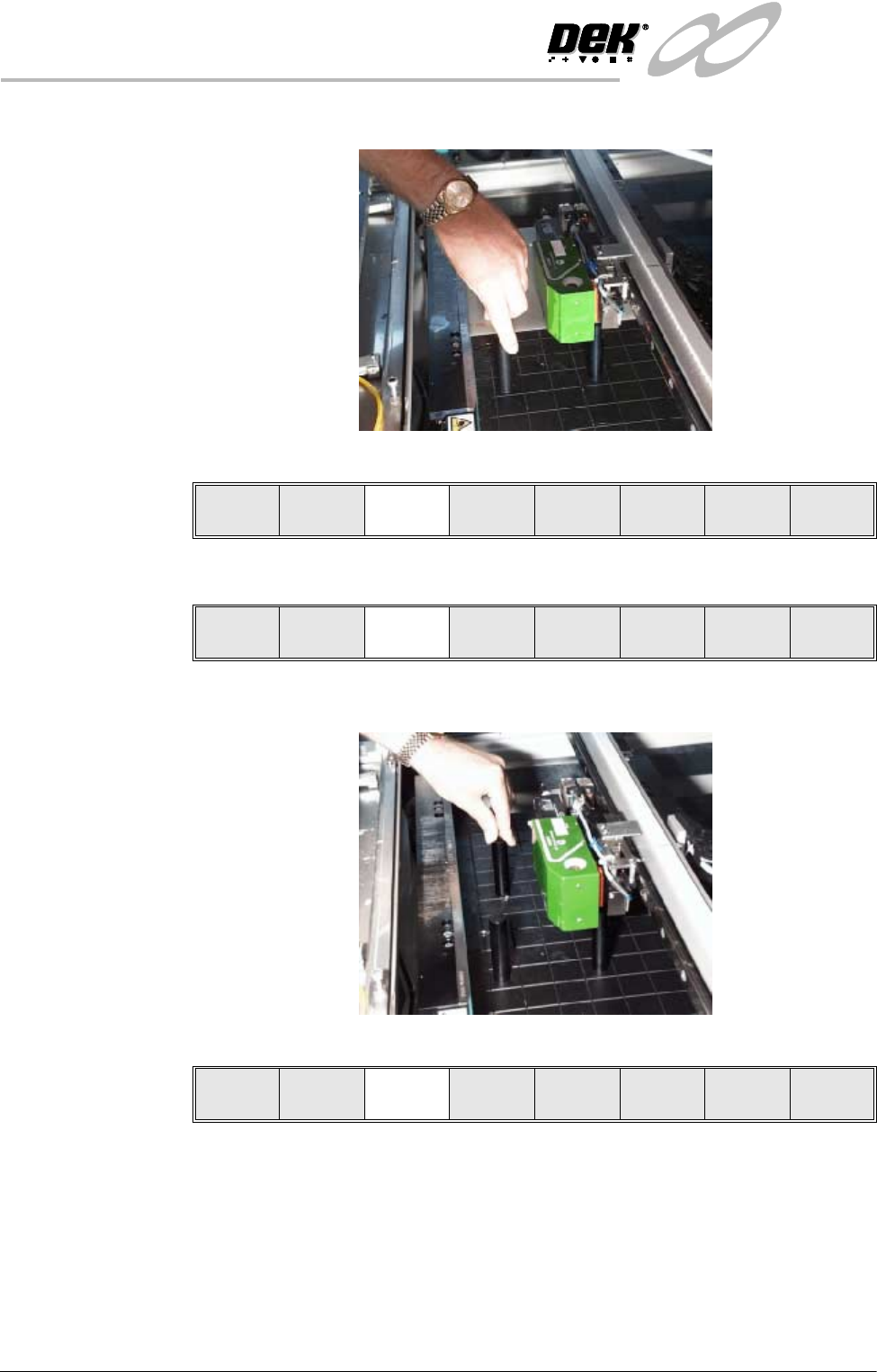

9. Position the outermost support pins on the rising table under the board.
10.Select Board Clamps (F3) to open the clamps.
11. Remove the board and select Board Clamps (F3) to close the clamps.
12.Complete the positioning of the support pins.
13.Select Board Clamps (F3) to open the clamps.
14.Slide the board back along the rails to abut the board stop.
Adjust
Lower
Head
Board
Clamps
Set
Stop
Adjust
Lower
Head
Board
Clamps
Set
Stop
Adjust
Lower
Head
Board
Clamps
Set
Stop
INFINITY
0$&+,1(352*5$00,1*
67$*($0$*1(7,&3,//$56722/,1*
Software Version 7 User Manual 1.31

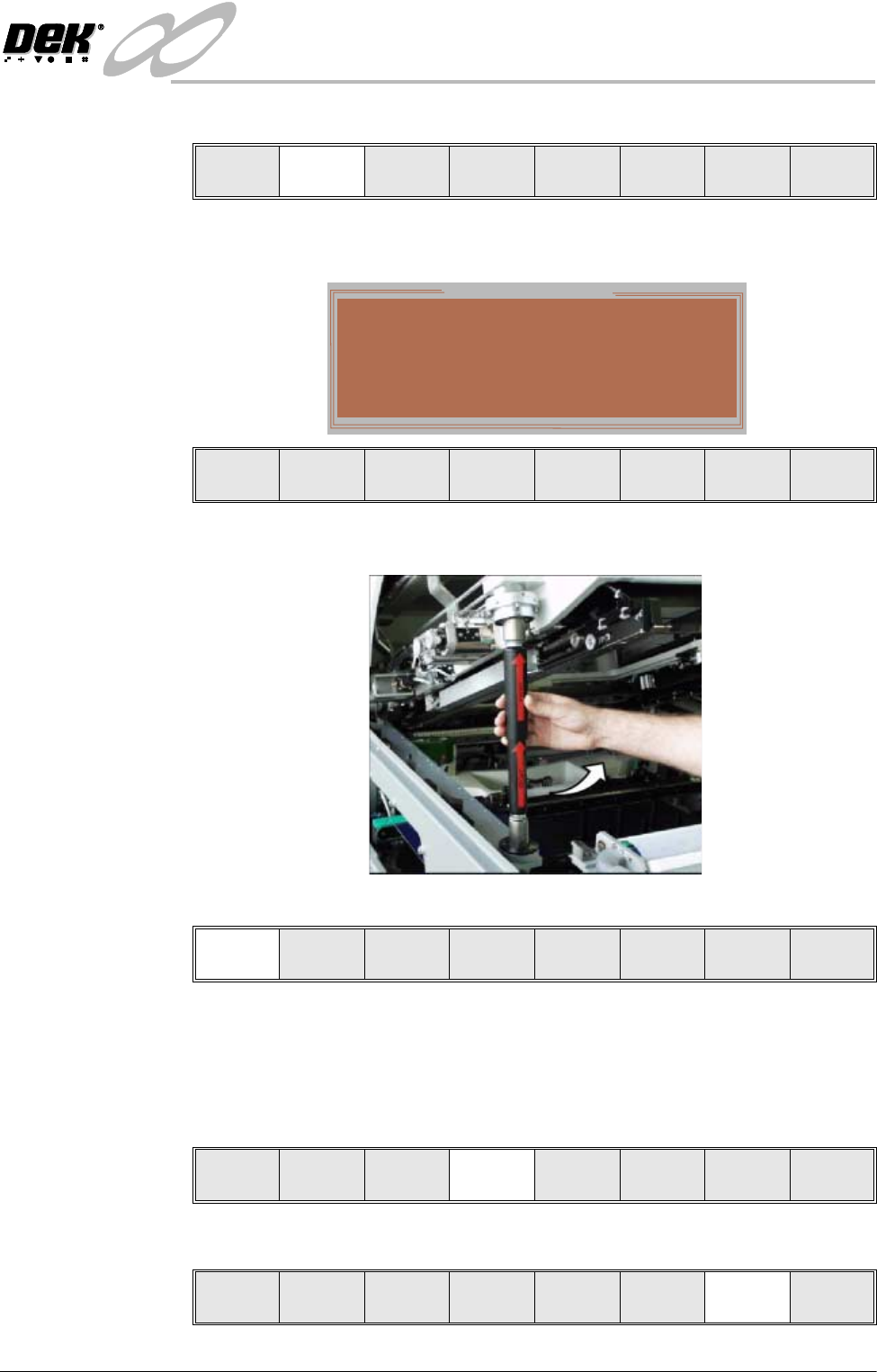

15.Select Lower Head (F2).
The following window and menu bar is displayed:
16.Remove the Head Prop.
17.Select Confirm (F1).
18.Lower the printhead using two button control.
19.Close the front printhead cover.
20.Press the System button.
21.Select Home Camera (F4).
22.Select Print Height (F7).
Adjust
Lower
Head
Board
Clamps
Set
Stop
Hazardous Operation
The head is about to be lowered
Remove the Head Prop and confirm that
everyone is standing clear.
Confirm Cancel
Confirm Cancel
Adjust
Raise
Head
Remove
Cleaner
Home
Camera
Full
Width
Load
Width
Print
Height
Exit
Adjust
Raise
Head
Remove
Cleaner
Board
Stop
Full
Width
Load
Width
Print
Height
Exit
INFINITY
0$&+,1(352*5$00,1*
67$*($0$*1(7,&3,//$56722/,1*
1.32 User Manual Software Version 7

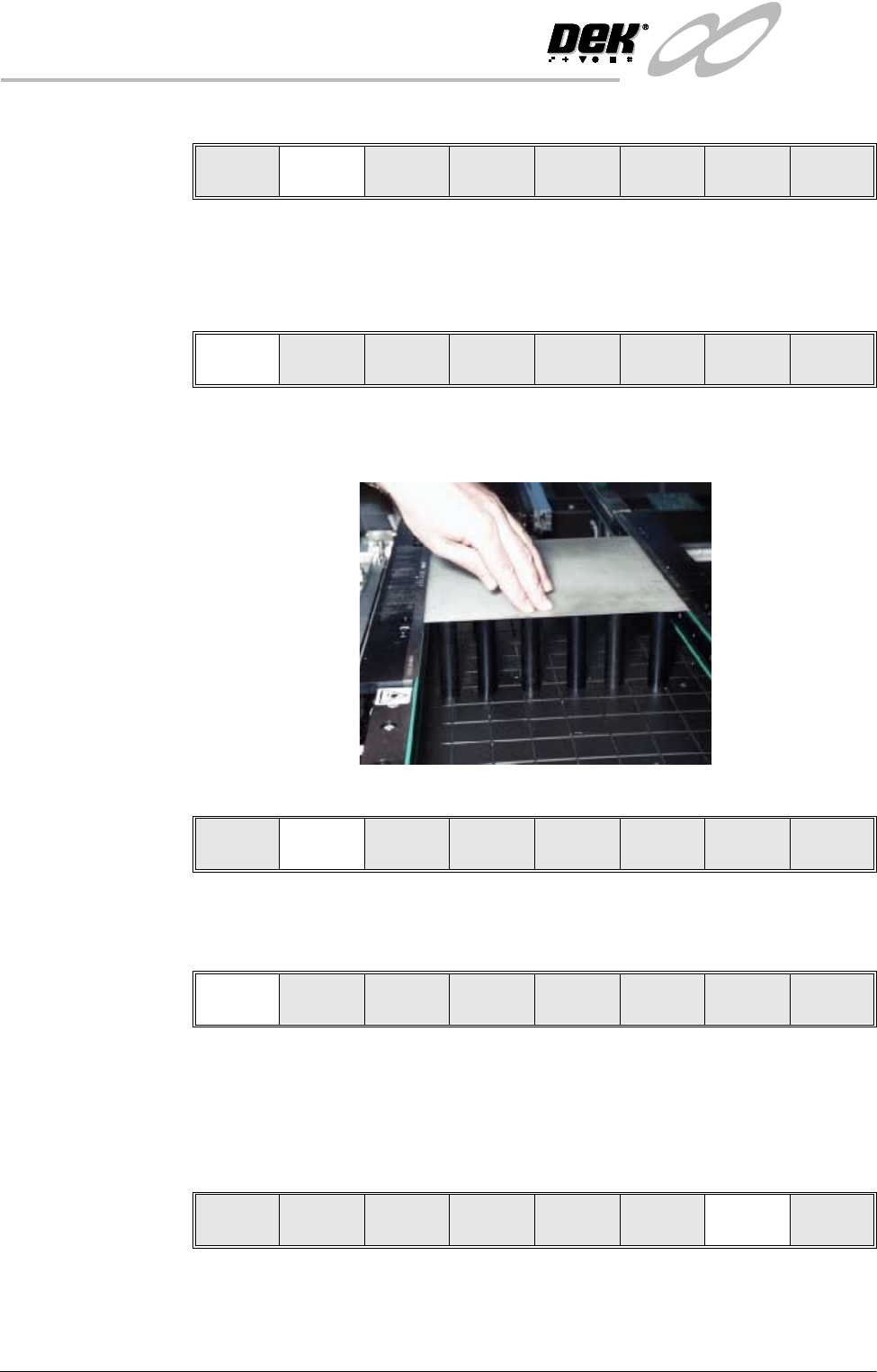

23.Select Raise Head (F2).
24.Raise the printhead using two button control.
25.Fit the head prop.
26.Press Confirm (F1).
27.Check that the setup of the tooling is adequate for the board, adjust as
necessary.
28.Select Lower Head (F2).
29.Remove the Head Prop.
30.Select Confirm (F1).
31.Lower the printhead using two button control.
32.Close the front printhead cover.
33.Press the System button.
34.Select Home Position (F7).
Raise
Head
Home
Position
Exit
Confirm
Lower
Head
Adjust
Lower
Head
Board
Clamps
Set
Stop
Confirm Cancel
Raise
Head
Home
Position
Exit
