Software Version 7 User Manual 1.5
STAGE 2A - LOAD A PRODUCT FILE
Using Function
Keys
1. For an existing product, the product file has already been written. If the
product is new, either edit an existing or a default file.
NOTE
The product file displayed after the machine has been initialized is the same
one that was resident in the printer when it was powered down. If this file is
correct for the product, continue to Stage 10 - Print in Run Mode. If the
product file is incorrect for the current product, continue with this procedure
2. Press Setup (F6).
3. Press Load Data (F2).
The following Load Data File Window is displayed:
4. Use Left, Right, Up or Down function keys (F4-F7) to highlight the required
file.
5. Press Load (F1). The selected file is now displayed on the monitor.
If this is the correct file for the product proceed to Stage 4. If the file has to
be edited proceed to Stage 3.
Run Head
Paste
Load
Clean
Screen
Adjust Setup Monitor Maint.
Mode
Load
Data
Edit
Data
Setup
Squeegee
Change
Screen
Change
Tooling
Change
Language
Exit
Load Data File
Search
Product ID
training
265TEST1
265TEST1
ANDYH
CALIBRA
DEFAULT
DEK04
GASLITE2
JKJKJKJK
TESTE-GR
Load
Bar
Code
Rebuild
List
Left Right Up Down Exit
Load
Bar
Code
Rebuild
List
Left Right Up Down Exit
INFINITY
0$&+,1(352*5$00,1*
67$*(%/2$'$352'8&7),/(
1.6 User Manual Software Version 7
STAGE 2B - LOAD A PRODUCT FILE
Using Bar Code A product with a barcode can be loaded by using either the product light pen or
by using the keyboard. From the status page:
1. Press Setup (F6).
2. Press Load Data (F2).
3. Select Bar Code (F2).
The Bar Code Product Data Selection window is displayed:
4. Swipe the barcode at a steady speed, left to right, or right to left, or enter the
code using the keyboard.
5. Select Exit (F8).
6. Go to Stage 4.
Run Head
Paste
Load
Clean
Screen
Adjust Setup Monitor Maint.
Mode
Load
Data
Edit
Data
Setup
Squeegee
Change
Screen
Change
Tooling
Change
Language
Exit
Load
Bar
Code
Rebuild
List
Left Right Up Down Exit
Entered Code:
Use light pen to swipe the bar code strip, or enter
the code number using the keyboard.
BAR CODE PRODUCT DATA SELECTION
Load
Bar
Code
Rebuild
List
Left Right Up Down Exit
INFINITY
0$&+,1(352*5$00,1*
67$*(&/2$'$352'8&7),/(
Software Version 7 User Manual 1.7
STAGE 2C - LOAD A PRODUCT FILE
Using Pocket Off Line Editor

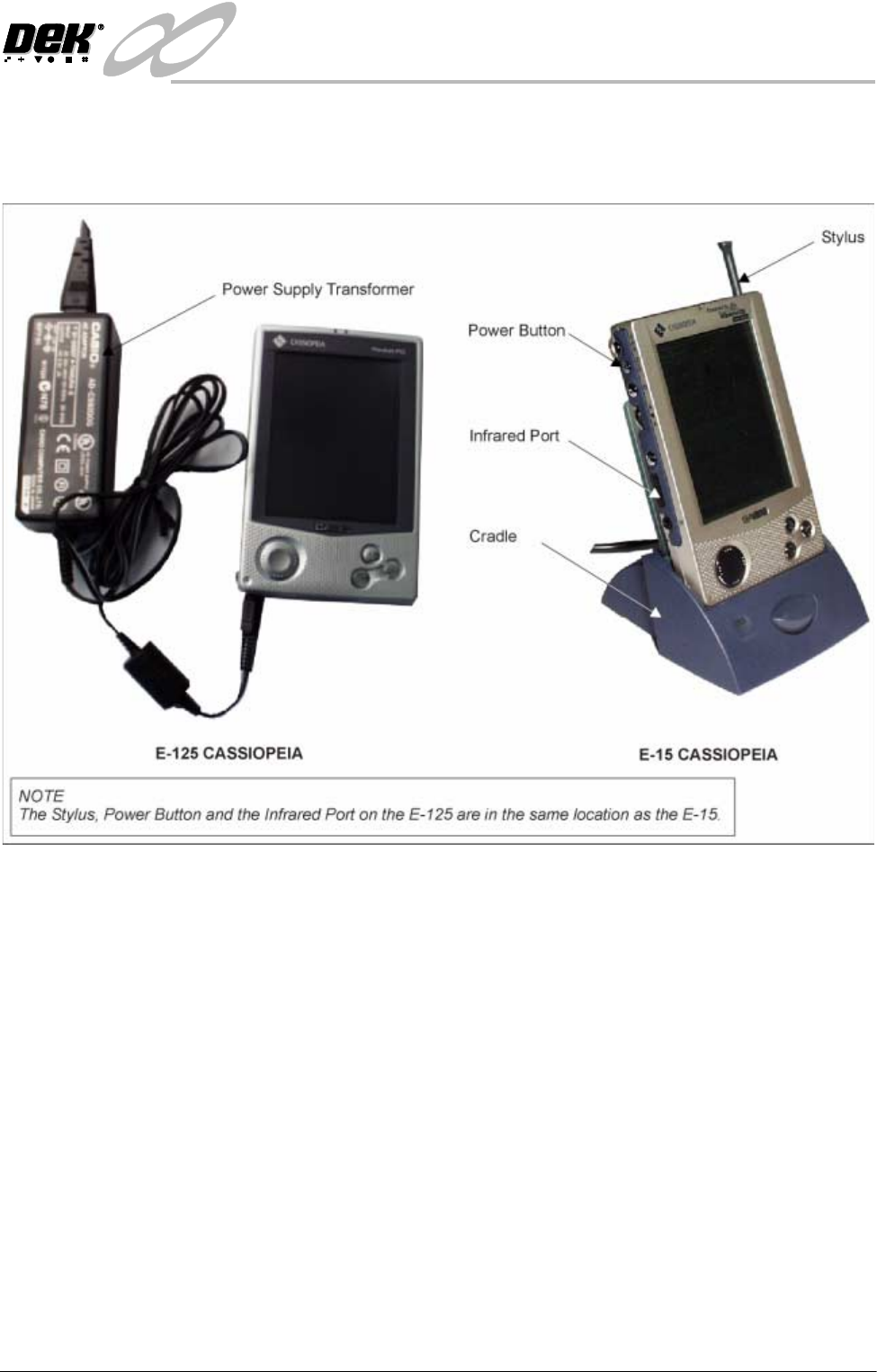

Introduction Two versions of the
CASSIOPEIA are used as the Pocket Off Line Editor.
Earlier machines were shipped with the E-15 palm size PC. Current machines
are shipped with the E-125 pocket PC. This procedure details the following:
• Downloading a product file from the printing machine
• Editing a product file in the Pocket Off Line Editor
• Uploading a product file from the Pocket Off Line Editor
For information on the Management Information Viewer refer to the House
Keeping chapter of this manual.
For information on the other functions of the E-15 palm size PC refer to the
Getting Started with the CASSIOPEIA (Hardware Manual) and the Palm-size
PC User’s Guide, supplied with the unit.
For information on the other functions of the E-125 pocket PC refer to the
Hardware Manual and Pocket PC User’s Guide, which are both included as PDF
files on the CASSIOPEIA CD-ROM, supplied with the unit.
