Installation
Installing the Gantry
Gantry Exchange Portaltausch 65
Temperature sensor cable
► Fix the cable of the temperature sensor into place. Read the relevant section in the service manual.
Fitting the cable harness and the hoses
► Fit the cable harness and the corresponding hoses to the gantry. For details, refer to the service
manual.
► Connect the cable from the incremental encoder and
temperature control to the gantry interface (1) (see
also "4.1.1 Gantry interface" [ ➙ 69]).
► (2) Connect the motor cable to the gantry interface.
First, use a side cutter to remove the lug (3) on the
connector (2) from the side facing the middle of the
gantry interface . Fasten the cable to the other lug
with a cable tie.
► Continue to secure the cable so that it does not get
caught in the trailing cable running next to it.
CAUTION
Cable routing
► Make sure that the end stops (red buffers) do not rub against the cable of the board.
► Make sure that the cable for the board can not collide with the X axis end stopper.
CAUTION
Always handle the trailing cable with care
► If a vacuum pump is fitted, also observe the relevant assembly instructions [00196845-xx].
► Always handle the new trailing cable with care.
► Make sure that the flat ribbon cable and the pneumatic hoses are not rubbed against any
parts or folded. Look out for sharp edges.
► Clean the trailing cable contact surface on the machine base with a dry cloth.
► Carefully insert the trailing cable into the prescribed position. Make sure you do not twist it.
► Take care of the rubber mat under the holder.
► Check that the power track chain runs parallel to the machine base. Move the gantry back
and forth.
► Secure with screws with Loctite 243.
► If it is difficult to push the hoses onto the tubes, moisten these first with ethanol or isopro-
panol (IPA).
► Fit the board cover. Make sure that you do not cause a short circuit.
Installation
Installing the Gantry
66 Gantry Exchange Portaltausch
Fitting the magnets
Fit the magnets. Proceed as follows:
► Keep holding the magnets so long until they have been fixed with the first screw.
► Tighten the remaining screws with a torque wrench. Use a torque of 9.5 Nm.
► Fit the remaining magnets, one after the other, as described in the above mentioned steps.
The magnets attract each other and there is a risk of fingers setting trapped between the magnets.
Fitting the buffer
► Fit the buffer to the X axis.
Fit the pin picker, if required
► Fit the pin picker. Read the assembly instructions "Smart Pin Support - X-Series S" [00197394-xx].
Fitting the placement head
► Fit the placement head. For details, refer to the service manual.
DANGER
Risk of trapped limbs - observe the safety data sheet!
The magnets are very powerful. There is a risk of body limbs being trapped.
► Risk of trapped limbs - observe the safety data sheet 00195600-xx.
DANGER
Risk of trapped limbs - observe the safety instructions!
The magnets are very powerful. There is a risk of body limbs being trapped.
► Please make sure you observe the applicable section "1.1.3 Safety Instructions for Working
with Strong Magnetic Fields (internal)" [ ➙ 42].
► The magnets attract each other and there is a risk of fingers setting trapped between the
magnets.
► Observe the magnet pole direction "N". The magnet pole direction "N" must be on the same
side for all magnets.
► Place the magnet on the machine frame and push the magnet gently into the mounting po-
sition.
► Only ever remove one magnet at a time and place it on its own in suitable packaging.
► Keep a safe distance between the individual magnets.
► Never place the magnets down on a work surface without securing them. When storing the
magnets, always use the prescribed packaging (box lid for magnet 150x64-128 [03105100-
xx]).
► Keep emergency protective equipment ready in case an accident occurs:
Plastic wedge, 65 x 180 mm [03097870-xx]
Copper hammer, 750 g [03097897-xx]
► The copper hammer and wedges are used in case of accidents, to separate the magnets.
► When working with magnets, enlist the help of an additional person.
NOTICE
Installation
► Connect all hoses and cables that lead to the pin picker. Observe how the cables are run.
Replace the cable ties.
► Tighten the three screws fastening the pin picker.
Installation
Final work
Gantry Exchange Portaltausch 67
Fitting the side cover
► Fit the side cover.
Warning label, if needed
► Attach the warning labels to the new gantry. Clean the adhesive surfaces first with ethanol or isopro-
panol (IPA).
3.5
3.5 Final work
Final work
► Switch on the machine
► Move the component trolley into the machine.
► Perform a complete calibration.

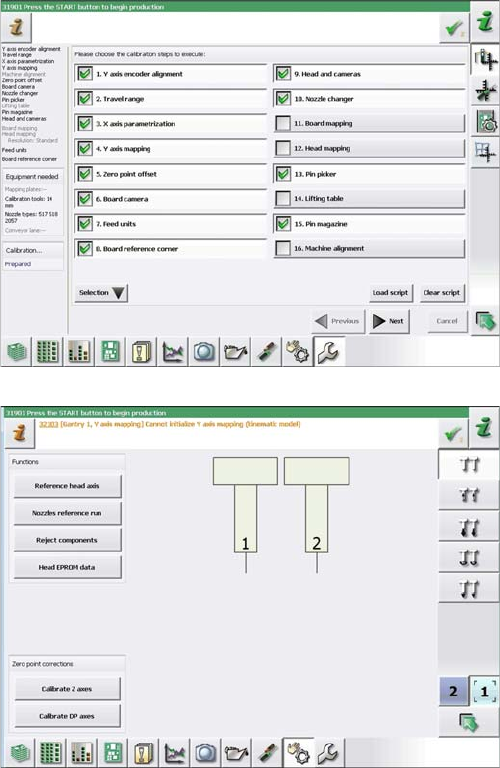

► If a TwinHead is installed, you will need to calibrate
the height of the TwinHead. Select "Calibrate Z ax-
es".
