4OM-1505
0906-001 2-B
4OM-1505
2-1
1. "ERROR" Window : Chap.2
1002-002
1. "ERROR" Window

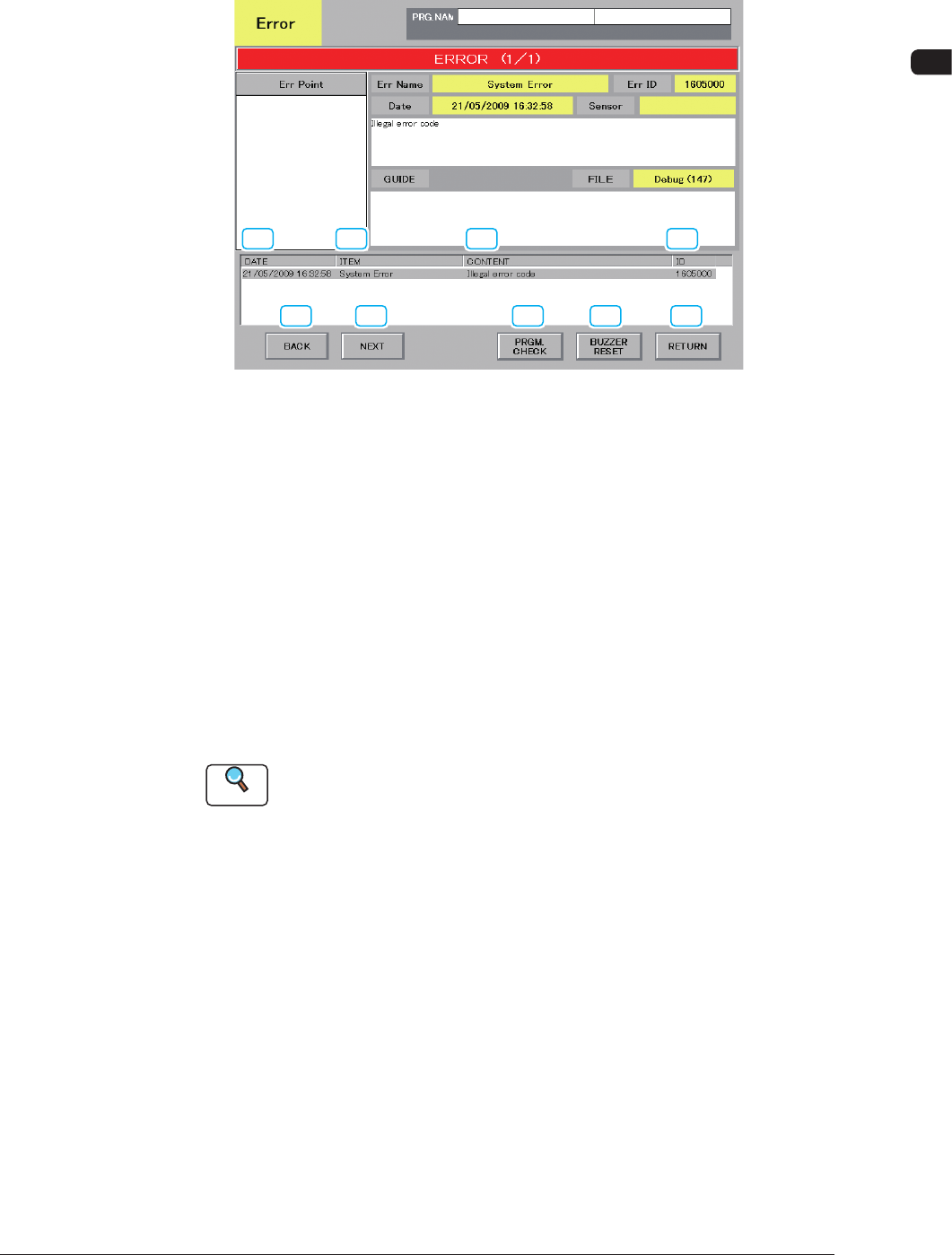

When the machine detects an error, the following window opens.
[1] [2]
[3]
[4]
[5] [6]
[7] [8] [9]
F4B1 "ERROR" Window
[1] DATE
Displayed are the date and time of error occurrence.
[2] ITEM
Displayed is an error item.
[3] CONTENT
Displayed are the contents of an error.
[4] ID
Displayed is a number that identies an error.
Reference
When an error has occurred, use this ID as an index and refer to "2.2
Troubleshooting after Error Display" in "Chapter 2" for details.
4OM-1505
2-2
1. "ERROR" Window : Chap.2
1002-002
[5] [BACK] Button
In the case that this button is pressed while two or more error descriptions
are displayed, the previous error description is highlighted.
[6] [NEXT] Button
In the case that this button is pressed while two or more error descriptions
are displayed, the previous error description is highlighted.
[7] [PRGM. CHECK] Button
The pattern program data is checked. When this button is pressed unless the
description indicated in the Item data box, is Program Data Error, nothing is
indicated in the display section.
[8] [BUZZER RESET] Button
Pressing this button cancels an alarm (sound) only.
[9] [RETURN] Button
Both the alarm buzzer sound and error display, are reset and the previous
window is returned.
Note
When the mark recognition error is indicated, the 7.2.3 Manual Alignment
Operation in Chapter 3, Volume 2, is performed.
When [STOP] is pressed on the operation panel after the manual alignment
operation, the window displayed immediately before the Error window is
returned.
•
Reset Procedure from "ERROR" Window
Procedure
(1) Take notes of the descriptions under "ID", "ITEM", and "CONTENT".
When you have forgotten an error message, refer to the list of errors in the "Machine
Error Recall" window. (Operation Sequence: [RECALL MSG.] Button → "Machine
Error Recall" Window)
(2) Press the [RETURN] button to resume the original window.
Use the found ID as an index and refer to "2.2
Troubleshooting after Error
Display
" for details. Then, reset the machine to its normal condition.
