4OM-1505

1-37

3. Maintenance Spots : Chap.1

Solvent Tank, Solvent Pan,

and Hose Joint

Check if industrial alcohol is leaking

or not.

If leakage is found, wipe off the alcohol

with a rag.

Check the joint and packing.

Every Day Check and Cleaning

Solvent Tank and Pan

F4A29

0906-001

4OM-1505

1-38

3. Maintenance Spots : Chap.1

3.2.9 Transparent Cover

Every 6 Months Lubrication

Transparent Cover Gas Damper

(Upper)

(Total of 4 locations in the front,

rear and on the left and right)

Apply grease with a brush and

grease gun.

Every 6 Months Lubrication

Transparent Cover Gas Damper

(Lower)

(Total of 4 locations in the front,

rear and on the left and right)

Apply grease with a brush and

grease gun.

F4A30

Hingi Section

(Front Side, Rear Side)

Every 6 Months Lubrication

Apply grease with a brush.

F4A31

0906-001

4OM-1505

1-39

3. Maintenance Spots : Chap.1

3.2.10 Blower Unit

Vacuum Filter

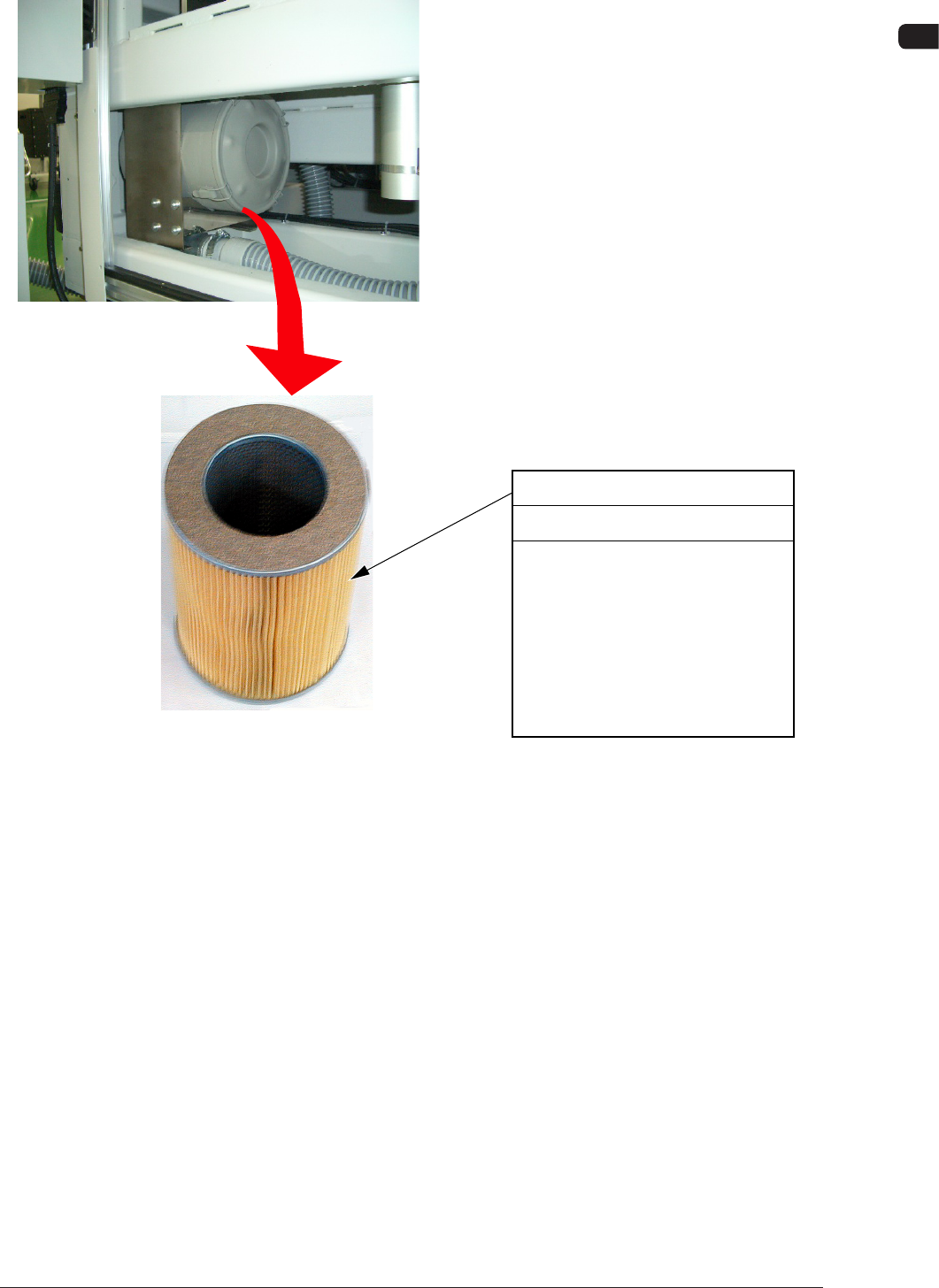

Detach the vacuum filter and

blow off dust with air or remove

dust with an air gun and a

vacuum cleaner.

Replace the filter with a new one

when it is stained excessively.

Refer to "4.1.3 Replacement of

Blower Filter" for details.

Every 6 Months Check, Cleaning

Blower Unit

F4A32
