4OM-1505 2-54 2. T roubleshooting on Each Section : Chap.2 (19 Stencil Recognition) T4B51 Error ID Error Name, Description, Cause, and Remedy 1901000 Stencil Recog. #1 1901001 Stencil Recog. #1 [Camera ID] exceeds the ra…
4OM-1505
2-53
2. Troubleshooting on Each Section : Chap.2
0906-001
T4B50
Error ID Error Name, Description, Cause, and Remedy
1807038 Recog. Transaction
Unavailable ducial mark polality was set.
1807040 Recog. Transaction
Unavailable ducial mark area was set.
1807043 Recog. Transaction
Recognition system error.
1807056 Recog. Transaction
Recog. transaction time over.
(Cause 1) Self-Diagnostics Error Message
(Remedy 1) Shut down the power of the machine once and power up the machine again.
After that, restart the operation. When the same error still occurs, contact our
service personnel for details.
4OM-1505
2-54
2. Troubleshooting on Each Section : Chap.2
(19 Stencil Recognition)
T4B51
Error ID Error Name, Description, Cause, and Remedy
1901000 Stencil Recog. #1
1901001 Stencil Recog. #1
[Camera ID] exceeds the range of setting.
(Cause 1) Self-Diagnostics Error Message
(Remedy 1) Zero all axes and restart the operation. If the machine is not reset to its
normal condition, shut down the power of the machine once and power up
the machine again. After that, restart the operation. When the same error still
occurs, contact our service personnel for details.
1901003 Stencil Recog. #1
[Camera Gain] exceeds the range of setting.
1901004
Stencil Recog. #1
[Camera Level] exceeds the range of setting.
1901011 Stencil Recog. #1
[Mark Size D1] exceeds the range of setting.
1901012 Stencil Recog. #1
[Mark Size D2] exceeds the range of setting.
1901014 Stencil Recog. #1
[Mark Judge Level] exceeds the range of setting.
(Cause 1) The data has exceeded the allowable range.
(Remedy 1) Set correct parameters.
0906-001
4OM-1505
2-55
2. Troubleshooting on Each Section : Chap.2
0906-001
T4B52
Error ID Error Name, Description, Cause, and Remedy
1901029 Stencil Recog. #1
Image around ducial mark was unstable.
1901030 Stencil Recog. #1
Error of mark gure similitude was extensive.
1901031 Stencil Recog. #1
Error of mark similitude or mark size was extensive.
1901032 Stencil Recog. #1
Specied mark was not found in window of recog.monitor.
(Cause 1) The ducial marks do not conform to the coordinates X and Y of the ducial
marks or the recognition mark data in the pattern program.
(Remedy 1) Follow the steps below to reset the machine to the normal condition.

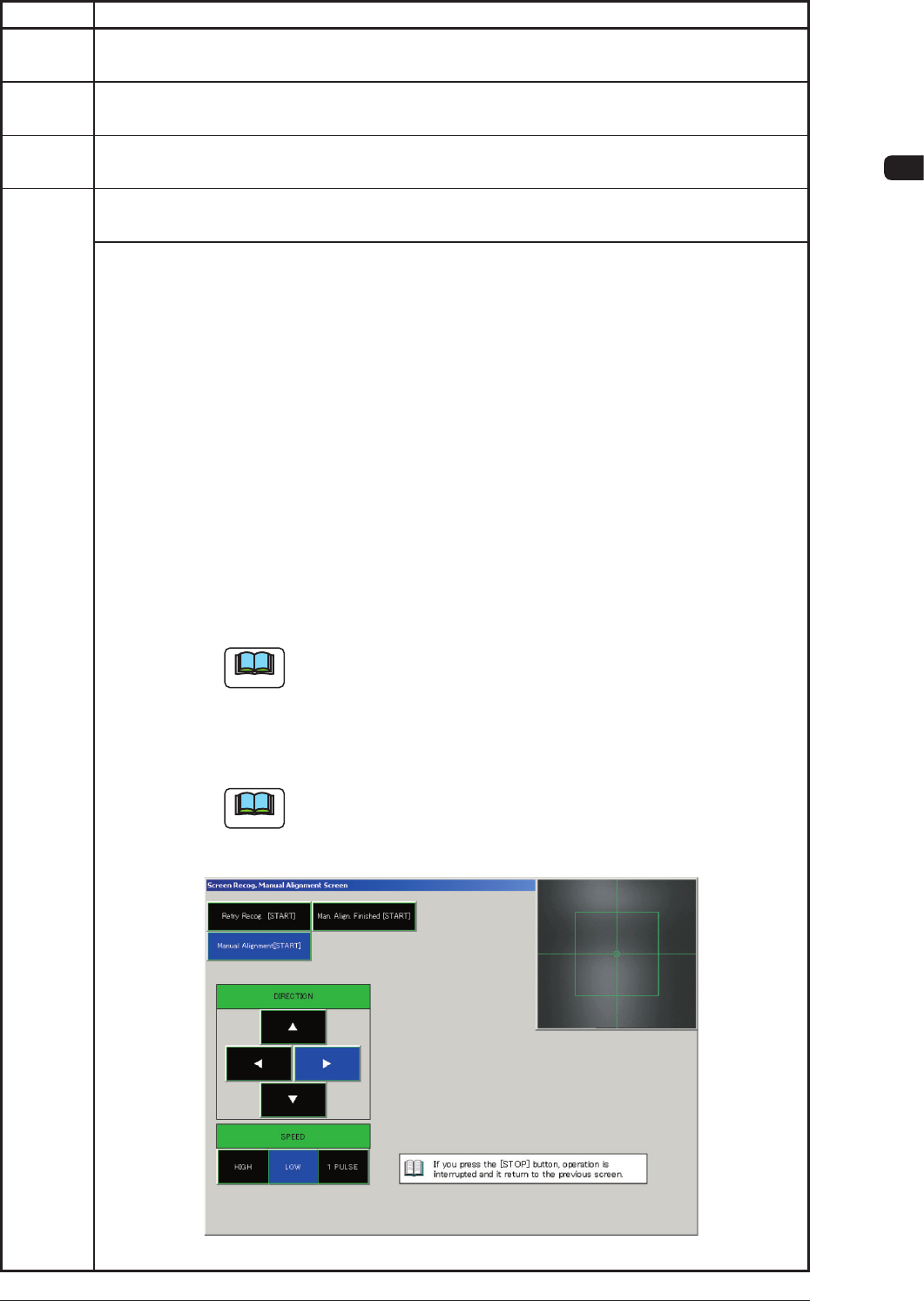

(1) When the [RETURN] button is pressed, the following window opens.
(2) When the actual ducial mark is out of the recognition area, move the
camera such that the mark can enter the recognition area. Select the
[Manual Alignment [ST
ART]] button and press one of the arrow buttons
in the "DIRECTION" and one of the "SPEED" buttons. While the [START]
button is being pressed, the camera keeps on moving.
(3) Select the [Retry Recog. [START]] button and press the [START] button.
When the recognition is completed successfully, this window automatically
closes.
(4) When the recognition still failed after the re-recognition operation, move
the camera such that the actual ducial mark can stay at the ducial mark
template (located at the center of the cross hair).
Note
Be sure to adjust the position of the ducial mark as accurately
as possible because the printing accuracy is affected by this
adjustment.
(5) Select the [Man. Align. nished [START]] button and press the [START]
button. The original window resumes.
Note
If the [STOP] button is pressed while the "Manual Alignment"
window is active, the processing is interrupted and the original
window resumes.
F4B6
