4OM-1505 1-19 3. Maintenance Spots : Chap.1 3.2.2 Squeegee Head Section Squeegee Every Day Cleaning Clean the squeegees with a rag soaked in industrial alcohol (solvent) or directly with industrial alcohol (solvent). Rem…
4OM-1505
1-18
3. Maintenance Spots : Chap.1
3.2 Inspection, Cleaning, and Lubrication Spots
The following describes about the maintenance tasks required for each individual
units.
Reference
Refer to "2. Maintenance Check List" for the maintenance items classied based
on frequency.
3.2.1 Air Source
Drain
Follow the steps below to purge the drain.
(1) Put a container under the drain outlet.
(2) Press the orange button.
Every Week Cleaning
Drain Button
F4A4
0906-001
4OM-1505
1-19
3. Maintenance Spots : Chap.1

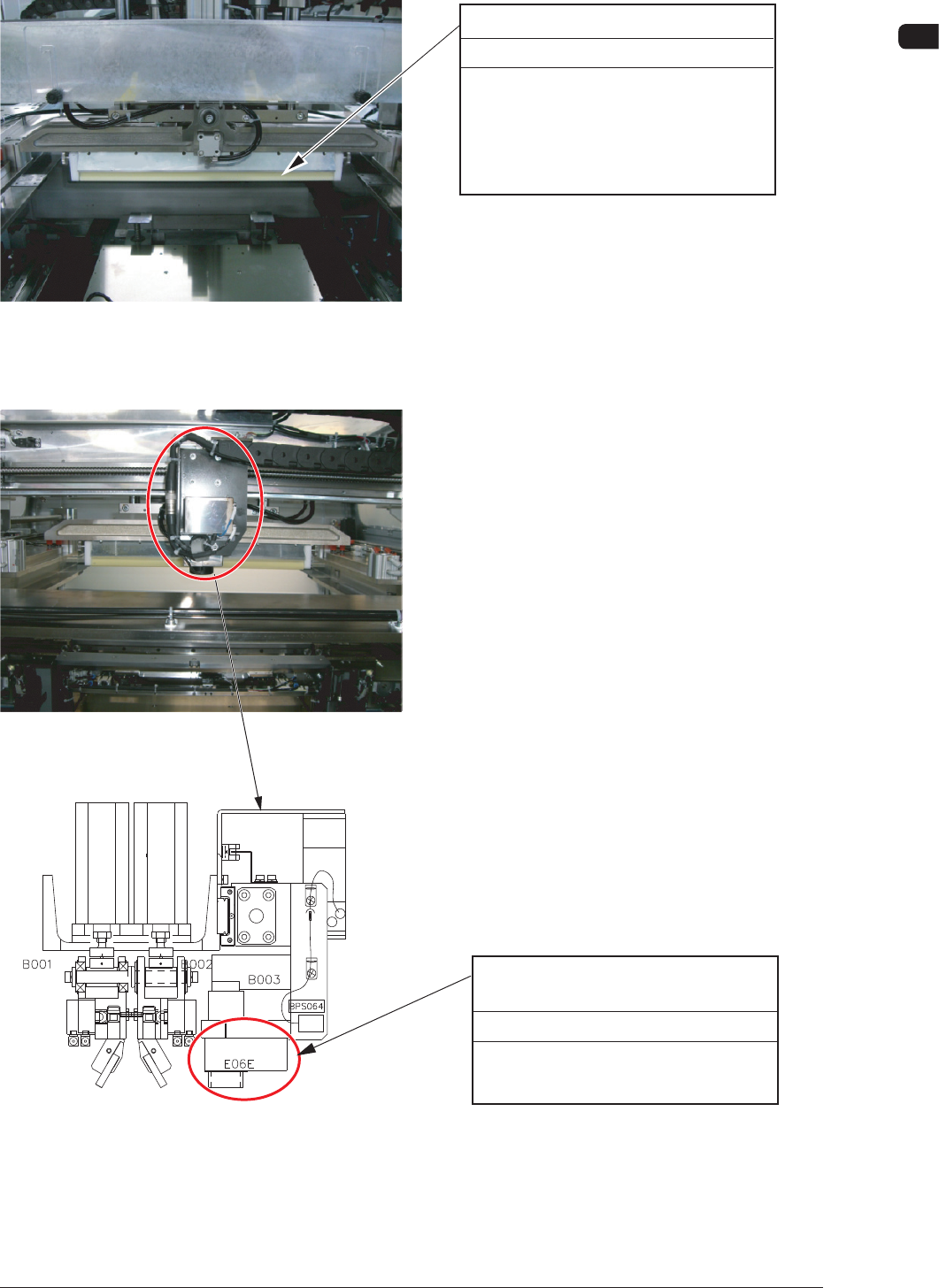

3.2.2 Squeegee Head Section
Squeegee
Every Day Cleaning
Clean the squeegees with a rag soaked
in industrial alcohol (solvent) or
directly with industrial alcohol
(solvent).
Remove deteriorated solder paste.
Front Side
F4A5
Stencil Recognition Lighting
Glass Surface
Every Month Cleaning
Remove dirt and dust, etc.,
with an air blow brush for camera.
Rear Side
Lens
Camera
Lighting
F4A6
0906-001
4OM-1505
1-20
3. Maintenance Spots : Chap.1
Every 5 years Lubrication
Squeegee Head Y-Axis Linear Guide
(One each in front and rear)
Inject new grease from the grease nipple
with a grease gun.
The used attachments should be
the U- and P-types or the SPK-3C.
Rear Side
Front Side
Note
Note
Note
Note
Note
If a large amount of grease is
applied, it may be dispersed
over a PCB and the stencil.
After applying grease, brush
the surface or scrape with a
spatula until a small amount
of grease remains on the
surface of the ball screw.
Every 5 years Lubrication
Squeegee Head Y-Axis Ball Screw
(Only on the right side)
Every Month Cleaning
Squeegee Head Y-Axis Linear
Guide (Right Side)
Do not leave any waste
threads after cleaning.
Every 5 years Lubrication
Squeegee Head Y-Axis Linear
Guide (Left Side)
Inject new grease from the grease
nipple with a grease gun.
The used attachments should
be the U- and P-types or the
SPK-3C.
Clean the stopper with an oiled rag.
Every Month Cleaning
Squeegee Head Y-Axis Linear
Guide (Left Side)
Do not leave any waste
threads after cleaning.
Apply grease with a brush or a
spatula.
Clean the stopper with an oiled rag.
F4A7
