Brief description Product Description Stationary Camera Typ e 25/33 Stationäre Kamera Typ 25/33 61 2 2 B r ie f d e s c r ip t io n Brief description 2.1 2 . 1 P r o d u c t D e s c r ip t io n Product Description SIPLAC…

Introduction

Staff Qualifications and Training 1.3.4 Validity of Document

60 Stationary Camera Type 25/33 Stationäre Kamera Typ 25/33

1.3.3.5

1.3.3.5 Dispatching ESD Modules

Dispatching ESD Modules

► Always store modules and components in conductive packaging (e.g. metallized plastic bags or met

al sleeves) and dispatch them in conductive packaging.

► If the packaging is not conductive, place the modules in a conductive envelope before packaging.

Use conductive foam rubber, ESD bags, domestic aluminum foil or paper, for example. NEVER use

plastic bags or film.

► If the module has integral batteries, ensure that the conductive packaging does not touch or short-

circuit the battery terminals and, if necessary, first cover the terminals with insulating tape or mate

rial.

1.3.4

1.3.4 Validity of Document

Validity of Document

This document is valid for all SIPLACE TX machines.

The work described in this manual is divided into modules and is largely identical for all machine types:

▪ If the work required for specific machines should differ from the standard procedure, this will be in

dicated with reference to the machine number, series and delivery state.

▪ Diagrams should be seen as examples e.g. the diagram of a specific machine type or a machine with

different paint finish does not mean that the following information only applies to the machine type

shown.

Please read the circuit diagram folder for any electrical checks.

1.3.5

1.3.5 Release History

Release History

1.4

1.4 Staff Qualifications and Training

Staff Qualifications and Training

Qualified or adequately trained personnel means that these people are familiar with the setting up, op

eration and maintenance of automatic placement systems and add-on devices and are suitably qualified,

e.g.:

▪ Have been trained, instructed or authorized to switch on and off, isolate, earth and identify electrical

circuits and system components in accordance with normal safety standards.

▪ Have been trained or instructed in the upkeep and use of appropriate safety equipment in accord

ance with normal safety standards.

▪ Have received first aid training.

Document

SIPLACE TX Series

Stationary camera type 25/33

Assembly Instructions

Edition Changes

02/2016 First edition

Brief description

Product Description

Stationary Camera Type 25/33 Stationäre Kamera Typ 25/33 61

2 Brief description

Brief description

2.1

2.1 Product Description

Product Description

SIPLACE TX1 and TX2 machines can accommodate an FC camera type 25 or an IC camera type 33 in

location 1.

NOTE: The upper section of the camera is assigned specifically to the lower section of the camera!

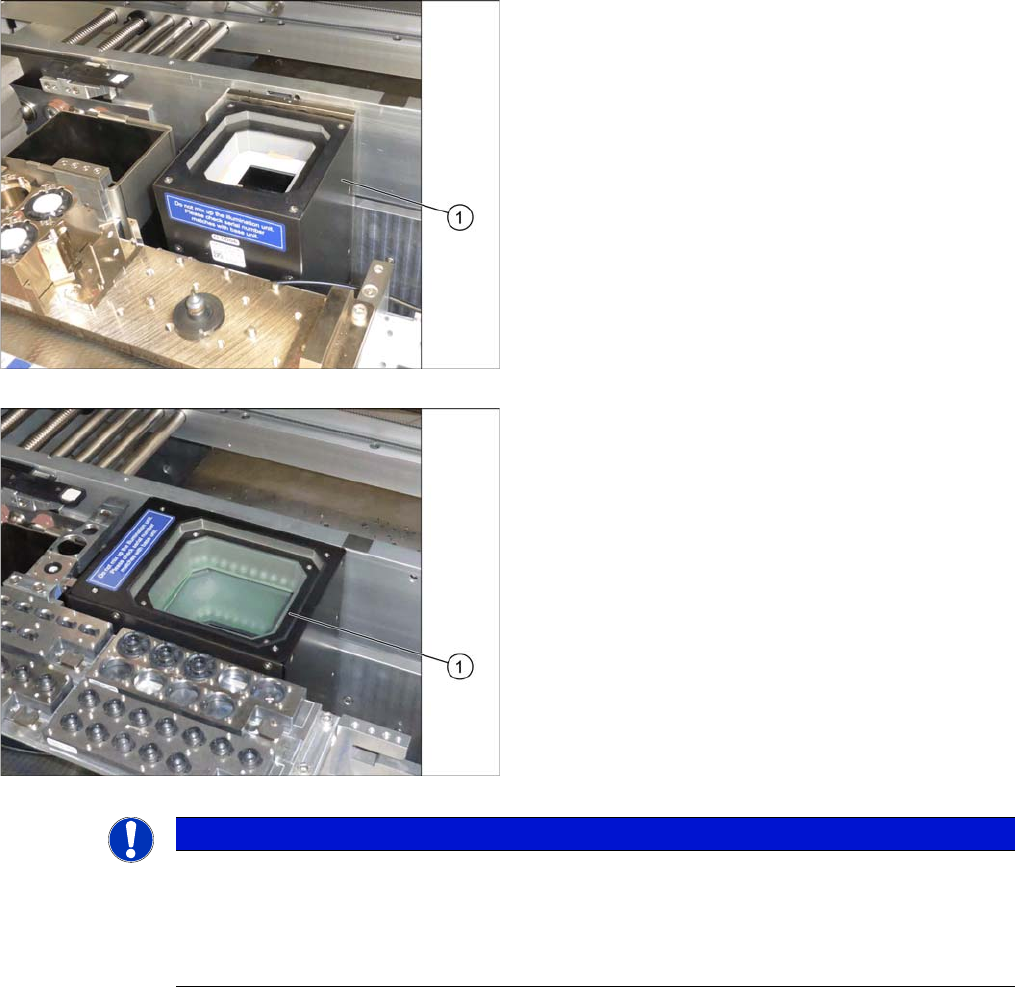

1. FC camera type 25 in the machine

1. IC camera type 33 in the machine

NOTICE

The upper section of the camera is assigned specifically to the lower section of the camera!

The upper section of the camera may not be used with a different bottom section. Both the up

per and lower sections are mechanically and electrically coordinated and may not be ex

changed for use with other cameras. The serial and version numbers of the top and bottom

sections of the camera must be identical.

Brief description

Overview of TX Series Machines 2.2.1 Serial number of the placement machine

62 Stationary Camera Type 25/33 Stationäre Kamera Typ 25/33

2.2

2.2 Overview of TX Series Machines

Overview of TX Series Machines

2.2.1

2.2.1 Serial number of the placement machine

Serial number of the placement machine

2.3

2.3 Prerequisites

Prerequisites

A stationary camera can be installed in all SIPLACE TX1 and SIPLACE TX2 machines.

SIPLACE TX2i machines cannot be equipped with a stationary camera.

2.4

2.4 Restrictions

Restrictions

A stationary camera can be installed in location 1 only.

Only a stationary camera of type 25 or type 33 can be installed.

1. Location 1

2. Location 2

3. Power Supply

4. Pneumatic System

5. BoxPC (behind the waste tape chute)

T = transport direction

The serial number of the placement machine is printed on

the typeplate (1) that can be found on the inside of the

machine frame in location 1.
