Installation
Fitting the Stationary Camera Type SST33
78 Stationary Camera Type 25/33 Stationäre Kamera Typ 25/33

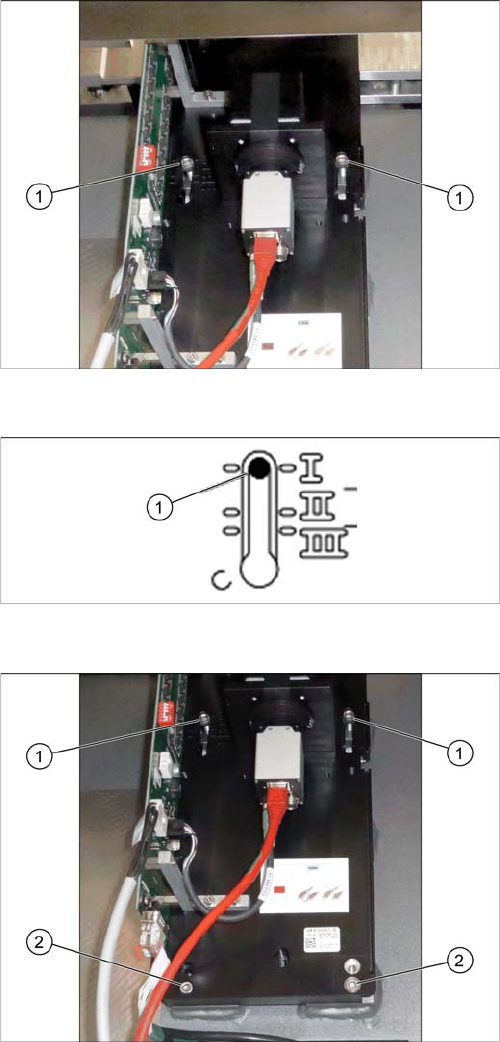

Hooking in the basic camera unit
► Place the basic camera unit at its installation position
from above.
► Hook the basic camera unit on the two screws (1) us
-
ing the upper keyholes.
Checking the installation height
► Check the installation height of the camera. The cam
-
era must be fitted to the lowest position I (1).
► Screw two more screws (2) ISO4762-M6x25-A2-70
[03042575
-
xx] into the lower keyholes.
► Screw all four screws (1) and (2) tight.
Installation
Fitting the Stationary Camera Type SST33
Stationary Camera Type 25/33 Stationäre Kamera Typ 25/33 79

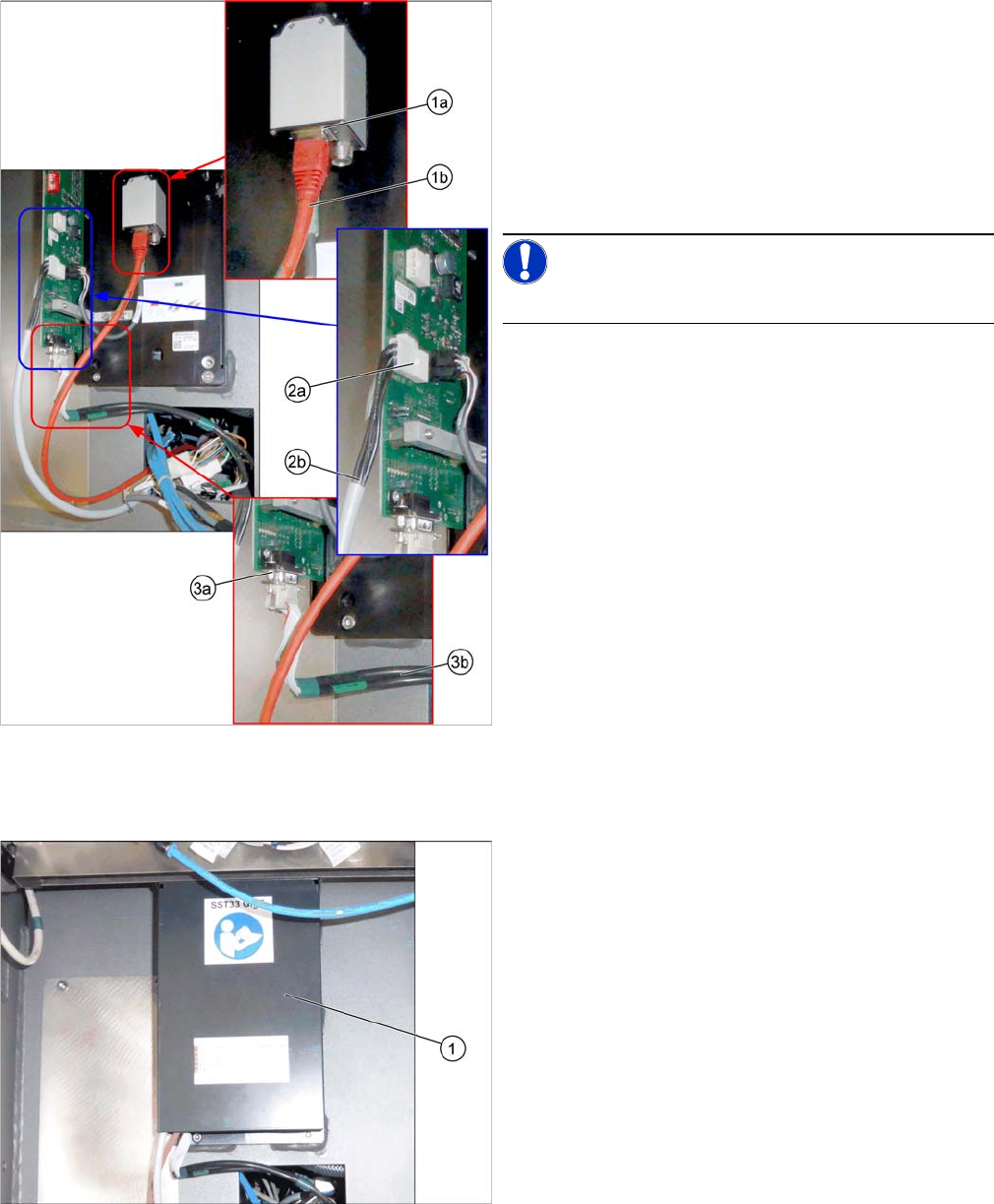

Establishing Electrical Connections
Hooking in the bottom cover
Establishing Electrical Connections
1. a) GigE cable W122 [03112124
-
xx]
b) Connection for GigE cable
2. a) Power cable W28.1 [03112125
-
xx]
b) Connection for power cable
3. a) CAN bus cable W102 [03112166-xx]
b) Connection for CAN bus cable
► Connect the cables.
NOTICE!
Make sure to connect the GigE cable correctly.
Hooking in the bottom cover
► Hook the bottom cover (1) of the camera in.
Installation
Fitting the Stationary Camera Type SST33
80 Stationary Camera Type 25/33 Stationäre Kamera Typ 25/33
Inserting the Dust Cover
Putting on the Upper Part and Checking the Installation Height
NOTE: The upper section of the camera is assigned specifically to the lower section of the camera!
Inserting the Dust Cover
► Insert the dust cover made of foam plastic (1) into the
bottom cover.
NOTICE
The upper section of the camera is assigned specifically to the lower section of the camera!
The upper section of the camera may not be used with a different bottom section. Both the up
-
per and lower sections are mechanically and electrically coordinated and may not be ex
-
changed for use with other cameras. The serial and version numbers of the top and bottom
sections of the camera must be identical.
Putting on the upper part
► Put the upper part (1) on the basic unit.
