Brief description
Overview of TX Series Machines 2.2.1 Serial number of the placement machine
62 Stationary Camera Type 25/33 Stationäre Kamera Typ 25/33
2.2
2.2 Overview of TX Series Machines
Overview of TX Series Machines
2.2.1
2.2.1 Serial number of the placement machine
Serial number of the placement machine
2.3
2.3 Prerequisites
Prerequisites
A stationary camera can be installed in all SIPLACE TX1 and SIPLACE TX2 machines.
SIPLACE TX2i machines cannot be equipped with a stationary camera.
2.4
2.4 Restrictions
Restrictions
A stationary camera can be installed in location 1 only.
Only a stationary camera of type 25 or type 33 can be installed.

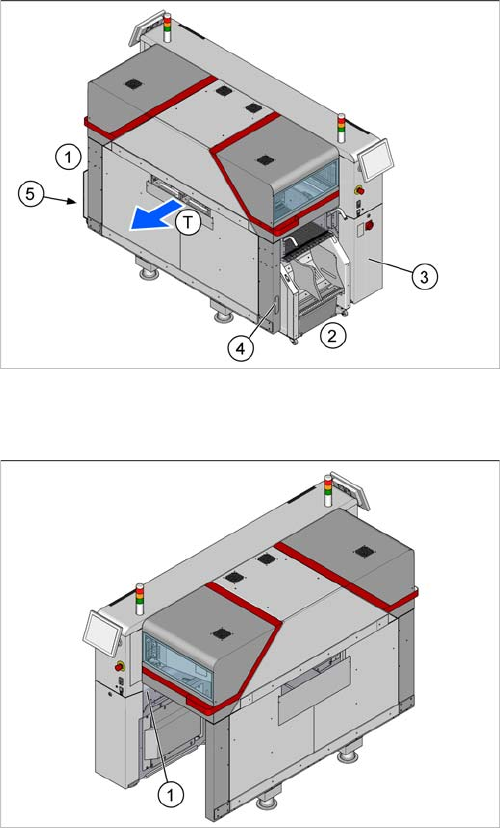

1. Location 1
2. Location 2
3. Power Supply
4. Pneumatic System
5. BoxPC (behind the waste tape chute)
T = transport direction
The serial number of the placement machine is printed on
the typeplate (1) that can be found on the inside of the
machine frame in location 1.
Brief description
2.5.1 Stationary Camera Type 25 TH SIPLACE TX [00588101-xx] Scope of Delivery
Stationary Camera Type 25/33 Stationäre Kamera Typ 25/33 63
2.5
2.5 Scope of Delivery
Scope of Delivery
You need the following:
▪ Stationary Camera Type 25 TH SIPLACE TX [00588101-xx]
or
Stationary Camera Type 33 CPP Head SIPLACE TX [00588100-xx]
▪ Assembly Instructions "Stationary Cameras GigE TX" [00198142-xx]
If not present yet, you will need the following parts in addition:
▪ Reject Box / Nozzle Station IC Camera [03112806-xx]
2.5.1
2.5.1 Stationary Camera Type 25 TH SIPLACE TX [00588101-xx]
Stationary Camera Type 25 TH SIPLACE TX [00588101-xx]
2.5.1.1
2.5.1.1 Overview of Parts
Overview of Parts
Quanti
-
ty
Designation Item No.
1 CO camera stat. P&P (type25) 16x16 GigE 03105205-xx
1 Support plate FC 03077911-xx
1 ISO 8734 - 5 x 18 - A-ST 03015784-xx
4 ISO4762 - M6 x 20-A2-70 03042574-xx
2 DIN EN ISO 4026 - M6 x 50-45H 03106014-xx

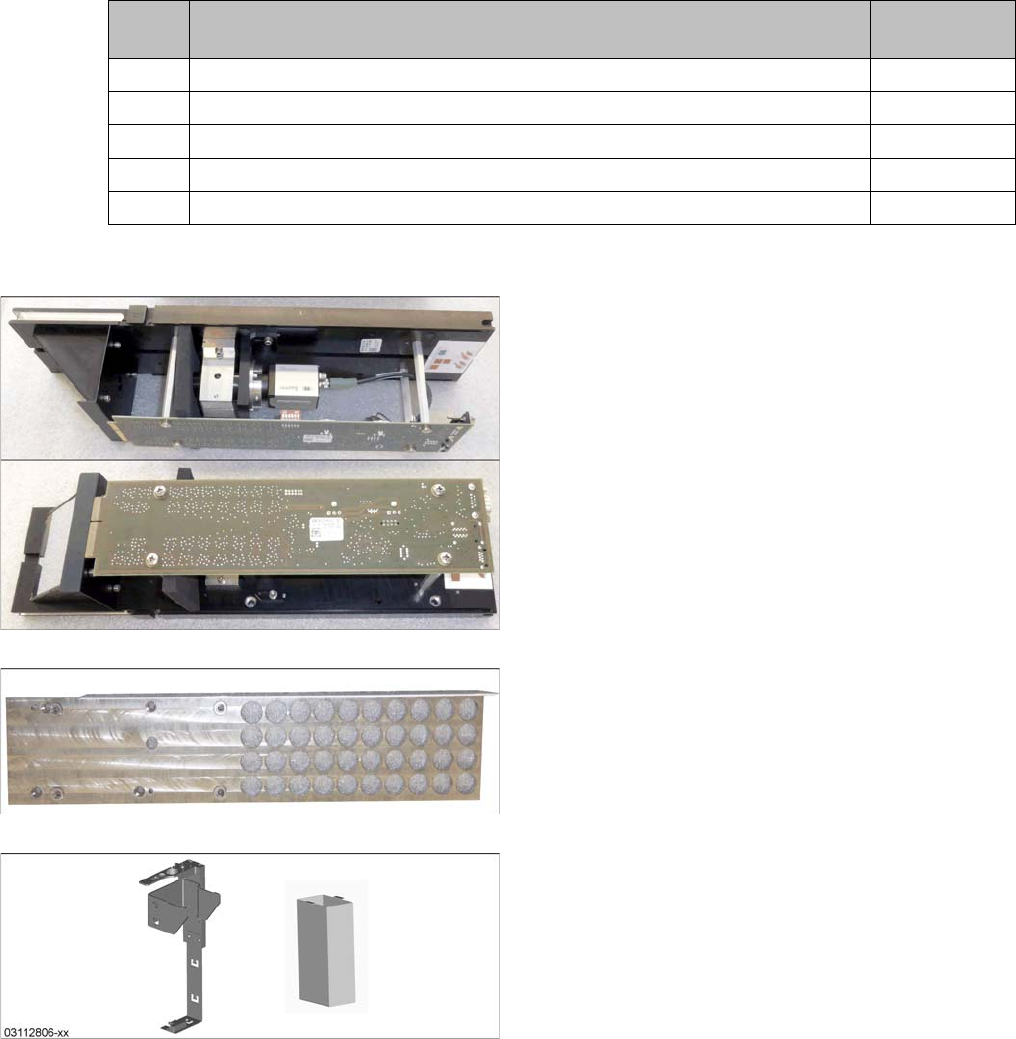

Basic camera unit SST25
Support plate
Reject Box / Nozzle Station IC Camera
Brief description
Scope of Delivery 2.5.2 Stationary Camera Type 33 CPP Head SIPLACE TX [00588100-xx]
64 Stationary Camera Type 25/33 Stationäre Kamera Typ 25/33
2.5.2
2.5.2 Stationary Camera Type 33 CPP Head SIPLACE TX [00588100-xx]
Stationary Camera Type 33 CPP Head SIPLACE TX [00588100-xx]
2.5.2.1
2.5.2.1 Overview of Parts
Overview of Parts
Quanti
-
ty
Designation Item No.
1 Component Camera, Stationary, P&P (Type 33) 55x45 03105198-xx
4 ISO4762 - M6 x 25-A2-70 03042575-xx
Basic camera unit SST33
Reject Box / Nozzle Station IC Camera
