Appendix 4.2.1 Stationary cameras Description of Boards Stationary Camera Typ e 25/33 Stationäre Kamera Typ 25/33 87 4.2 4 . 2 D e s c r ip t io n o f B o a r d s Description of Boards 4.2.1 4 . 2 . 1 S t a t io n a r y …
Appendix
Excerpts from the Service Manual 4.1.2 Nozzle Changer Setting
86 Stationary Camera Type 25/33 Stationäre Kamera Typ 25/33
4.1.2.3
4.1.2.3 Jumpers on the Nozzle Changer
Jumpers on the Nozzle Changer
Overview
Preparation
Setting
► Set the correct value on the jumper for your head type, software and control method.
Nozzle Changer CP20P - Jumper X10
Jumper X10
Jumpers on the Nozzle Changer
1. Jumper X10
The jumper X10 needs to be set at the following nozzle
changers:
▪ Nozzle changer basic structure CPx/all assembly -
short [03103649-xx]
▪ Nozzle changer basic structure CPx/all assembly -
long [03103514-xx]
NOTICE
Before installation
Due to the design, this setting must be performed before installation in the machine.
► If the new nozzle changer is being fitted as a spare part in a machine with I/O module con
-
trol, you will need to reconnect the jumper to pin 1-2.
Checking the I/A module control
To check whether the machine has I/O module control,
proceed as follows:
► Switch over to the operator level Service.
► Select the button.
► Select the button Embedded Software.
► Select the button Update Subsystem.
► If I/O module control is present, you will see the entry
Nozzle Changer at I/O Module.
Head SW <= 706.x SW >= 707.x
I/O controller XFCU I/O controller XFCU
CPx, DLM 1-2 1-2 1-2 2-3
C&P20 P --- --- --- 2-3 (factory settings)
Appendix
4.2.1 Stationary cameras Description of Boards
Stationary Camera Type 25/33 Stationäre Kamera Typ 25/33 87
4.2
4.2 Description of Boards
Description of Boards
4.2.1
4.2.1 Stationary cameras
Stationary cameras
4.2.1.1
4.2.1.1 Vision LED Controller VLC25 GigE DTC [03117587-xx]
Vision LED Controller VLC25 GigE DTC [03117587-xx]
This board is part of the stationary cameras SST25 GigE.
DIP switch S1 for SST25 [03117981-01]
1 DIP switch SW1
Switch Status Signal name Description
S1.1 OFF VCU_CODE OFF: normal operation, ON: Reset
Gantry 1 Gantry 2 Gantry 3 Gantry 4
S1.2 ON/OFF PORTAL_ID_0 OFF ON OFF ON
S1.3 ON/OFF GANTRY_ID_1 OFF OFF ON ON
S1.4 OFF SMD_LED OFF: standard LED, ON: SMD LED
S1.5 OFF CAN_H OFF: with CAN terminator
ON: without CAN terminator
S1.6 OFF CAN_GROUP OFF: FC camera, ON: IC camera
Appendix
Description of Boards 4.2.1 Stationary cameras
88 Stationary Camera Type 25/33 Stationäre Kamera Typ 25/33
4.2.1.2
4.2.1.2 Vision LED Controller VLC33 GigE DTC [03117981-xx]
Vision LED Controller VLC33 GigE DTC [03117981-xx]
This board is part of the stationary cameras SST33 GigE.

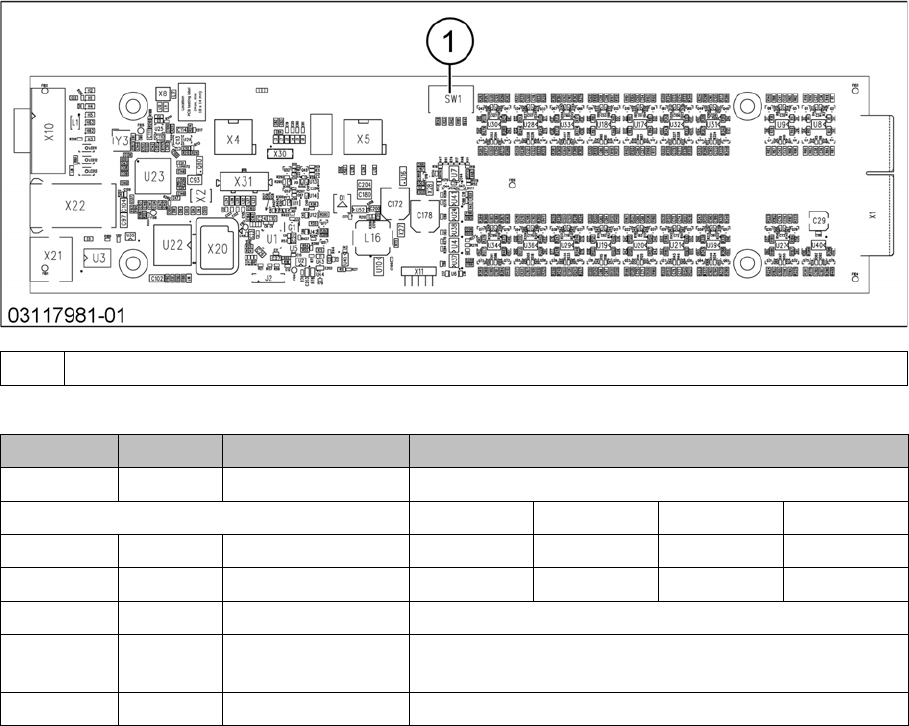

DIP switch S1 for SST33 [03117981-01]
1 DIP switch SW1
Switch Status Signal name Description
S1.1 OFF VCU_CODE OFF: normal operation, ON: Reset
Gantry 1 Gantry 2 Gantry 3 Gantry 4
S1.2 ON/OFF PORTAL_ID_0 OFF ON OFF ON
S1.3 ON/OFF GANTRY_ID_1 OFF OFF ON ON
S1.4 OFF SMD_LED OFF: standard LED, ON: SMD LED
S1.5 OFF CAN_H OFF: with CAN terminator
ON: without CAN terminator
S1.6 ON CAN_GROUP ON: IC camera , OFF: FC camera
