PCP Series Manual
Revision B / October 2021
Page 13 of 56
Pump Shutdown Procedure
1. Remove the needle from the manifold.
2. Purge material through the manifold.
3. Completely clean the manifold material outlet.
4. Install a night cap on the manifold material outlet.
5. Release the fluid supply pressure. Refer to the workcell manual if necessary.
PCP Series Manual
Revision B / October 2021
Page 14 of 56
Disassemble and Clean the Pump
Remove the Pump from the Workcell
1. Remove the motor connection from the motor assembly of the pump.
2. Turn the luer lock dispense tip counterclockwise and pull to remove.
3. Discard the luer lock dispense tip.
4. Use a wrench to remove the material fitting from the fluid body.
5. Install a cap on the material fitting.
6. Use a 2.5 mm hex key to remove the bolt from the back of mount plate in the back
of the fluid body.

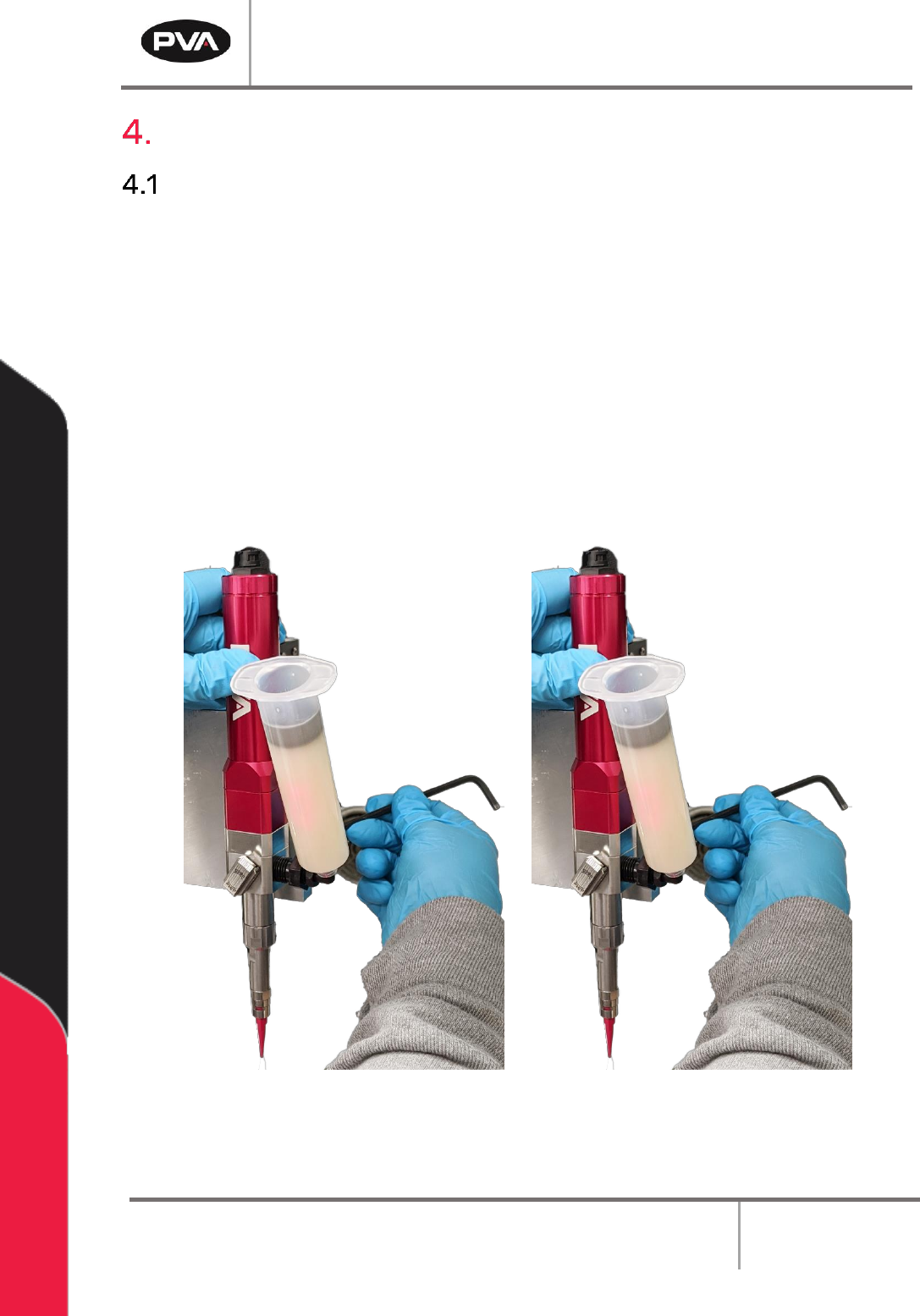

Figure 2: Remove Pump from Workcell
7. Remove the pump from the workcell.
PCP Series Manual
Revision B / October 2021
Page 15 of 56
Disassemble the Pump
1. Place the pump on a clean work surface.
2. Use a 2.5 mm hex key to remove the two M3 x 55 mm socket head cap screws from
the rotor assembly.
3. Separate the motor from the rotor assembly.
Figure 3: Separate Motor from Rotor Assembly
4. Remove the blue coupling from the rotor assembly.
Figure 4: Remove Coupling
