PCP Series Manual Revision B / October 2021 Page 52 of 56 Drawings Figure 70 : PCP Drawing Dimensions
PCP Series Manual
Revision B / October 2021
Page 51 of 56
Technical Specifications
Operating Temperature
10 - 40°C (50 - 104° F)
Viscosity Range
1 - 500,000+ cps
Max Inlet Fluid Pressure
85 psi
Wetted Components
Stainless Steel/FFKM
Carbide/EPDM
*Dimensions, Flow Rate, and Fluid Inlet will vary based on pump size.
Model Number
Flow Rate
Dimensions (mm)
Fluid Inlet
PCP015
0.015 - 1.8 ml/min
27 x 27 x 230
1/4” NPT
PCP015-C
0.015 - 0.15 ml/min
27 x 27 x 230
1/4” NPT
PCP050
0.05 - 6 ml/min
27 x 27 x 230
1/4” NPT
PCP050-C
0.05 - 0.5 ml/min
27 x 27 x 230
1/4” NPT
PCP150
0.15 - 18 ml/min
29 x 29 x 280
1/4” NPT
PCP150-C
1.2 - 1.5 ml/min
29 x 29 x 280
1/4” NPT
PCP500
0.5 - 60 ml/min
29 x 29 x 280
1/4” NPT
PCP500-C
0.5 - 5 ml/min
29 x 29 x 280
1/4” NPT
PCP1000
1 - 120 ml/min
29 x 29 x 312
1/4” NPT
PCP1000-C
1 - 10 ml/min
29 x 29 x 312
1/4” NPT
Figure 69: Model Specifications
PCP Series Manual
Revision B / October 2021
Page 52 of 56
Drawings

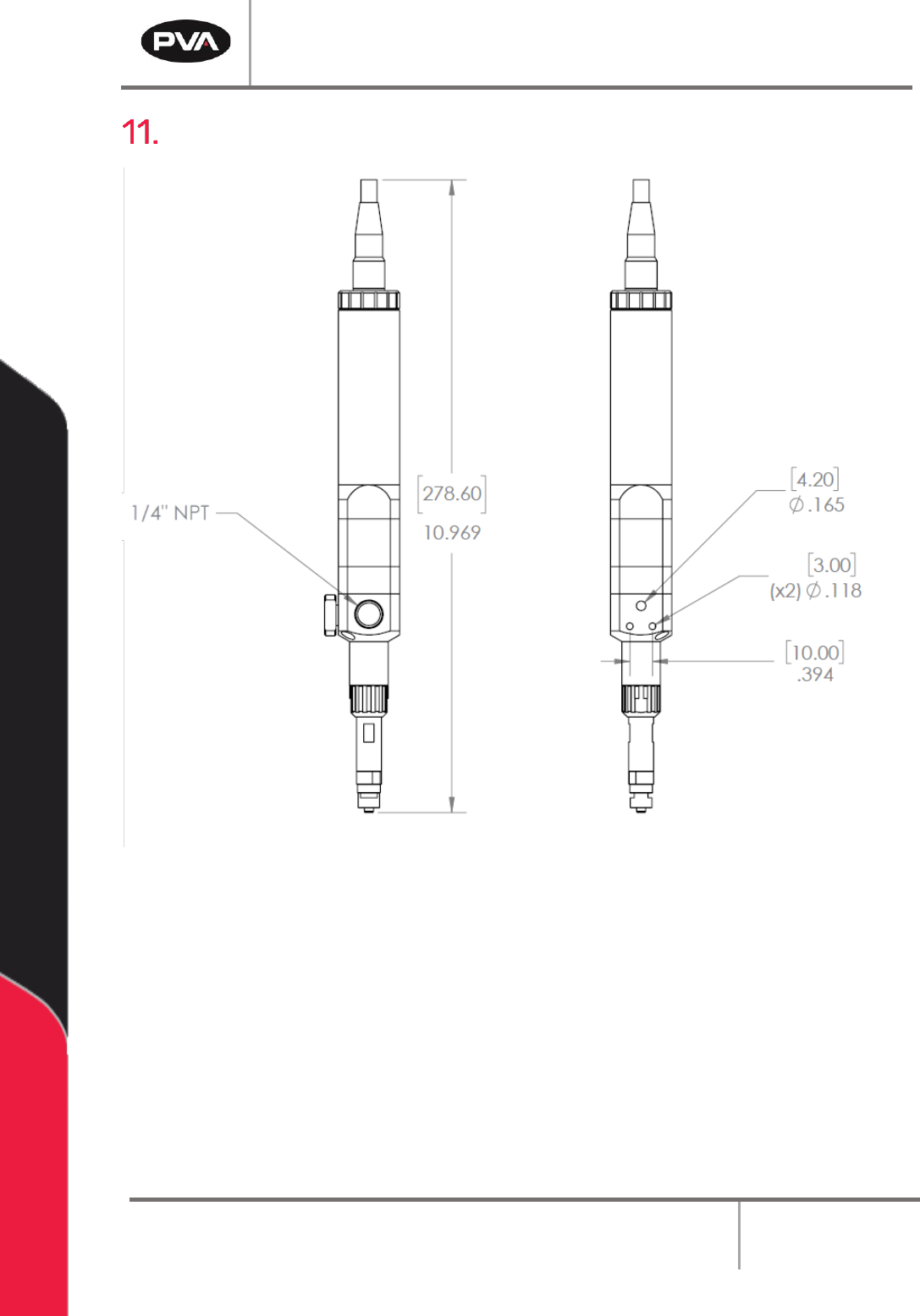

Figure 70: PCP Drawing Dimensions
PCP Series Manual
Revision B / October 2021
Page 53 of 56
Troubleshooting
Troubleshooting Problem
Possible Cause
Corrective Action
Pump does not cycle or too
little material dispenses
Motor not connected correctly
Check motor connections
Cured material in pump section
Disassemble pump and clean
Static mixer is blocked
Replace the static mixer
Stator is swollen or worn
Replace stator
Dispenser speed is too low
Increase speed
Inadequate supply of material
Supply the material, examine the
hose, and check the primary
pressure, increase if necessary;
bleed again to equalize cartridge
pack.
Electrical connection is incorrect
Connect correctly at the motor
housing and at the mains, make
sure the prongs in the motor are
not bent
Rotor is broken
Install a new rotor assembly
Material leaks from the pump
tip
Fluid pressure too high (5.8 bar
max)
Decrease inlet fluid pressure
Not enough snuff back on rotor
Increase snuff back.
Stator is worn
Replace stator.
Air bubbles in material
Refer to the “Air bubbles in
material” section under the
Troubleshooting Problem heading
in this table
Material is compressible
Degas the material
Pump leaks between seal
block and fluid body
Seal is worn between fluid body and
the sealing block
Replace seal
Pump does not dispense when
triggered
Fluid pressure is too low
Increase fluid pressure (5.8 bar
max)
Cured material in pump section
Disassemble pump and clean
Motor running in the wrong
direction
Check motor settings
Air bubbles in material
Pump not correctly purged
Cycle pump open to purge air
Needle not correctly purged
Make sure installation is correct
Problem with fluid delivery system
Diagnose and repair
