PCP Series Manual
Revision B / October 2021
Page 48 of 56
PCP1000 and PCP1000-C
PCP1000 Bill of Materials
Figure 64: PCP1000 Disassembled
Item
Part Number
Description
Qty
1
PCP1000-A3
MOTOR ASSEMBLY, PCP1000
1
2
PCP-1000-8
COUPLING, URETHANE, PCP1000
1
3
PCP-1000-K
SHCS, M3 x 35mm, PCP1000
2
4
PCP-1000-A2
ROTOR, SUS303, PCP1000
1
5
PCP-1000-J
SHCS, M3 x 55mm, PCP1000
2
6
PCP-1000-6
SEAL BLOCK, AL2024, PCP1000
1
7
PCP-1000-7
SEAL, ROTARY, UHMW-PE, PCP1000
3
8
PCP-1000-I
O-RING, FKM, AS015, PCP1000
3
9
PCP-1000-H
O-RING, FKM, AN016, PCP1000
1
10
PCP-1000-4-TL
CHAMBER, LEFT, SUS303, PCP1000
1
11
PCP-1000-5
PURGE KNOB, CLIP, SUS303, PCP1000
1
12
PCP-500-K
O-RING, SS5, PCP1000
3
13
PCP-1000-B
O-RING, FKM, AS017, PCP1000
2
14
PCP-1000-D
O-RING, FKM, AS019, PCP1000
1
15
PCP-1000-A1
STATOR, FFKM, PCP1000
1
16
PCP-1000-A
O-RING, SS15, FFKM, PCP1000
1
17
PCP-1000-3
UNION CAP, SUS303, PCP1000
1
18
PCP1000-2-A
LUER ADAPTER, SUS303, PCP1000
1

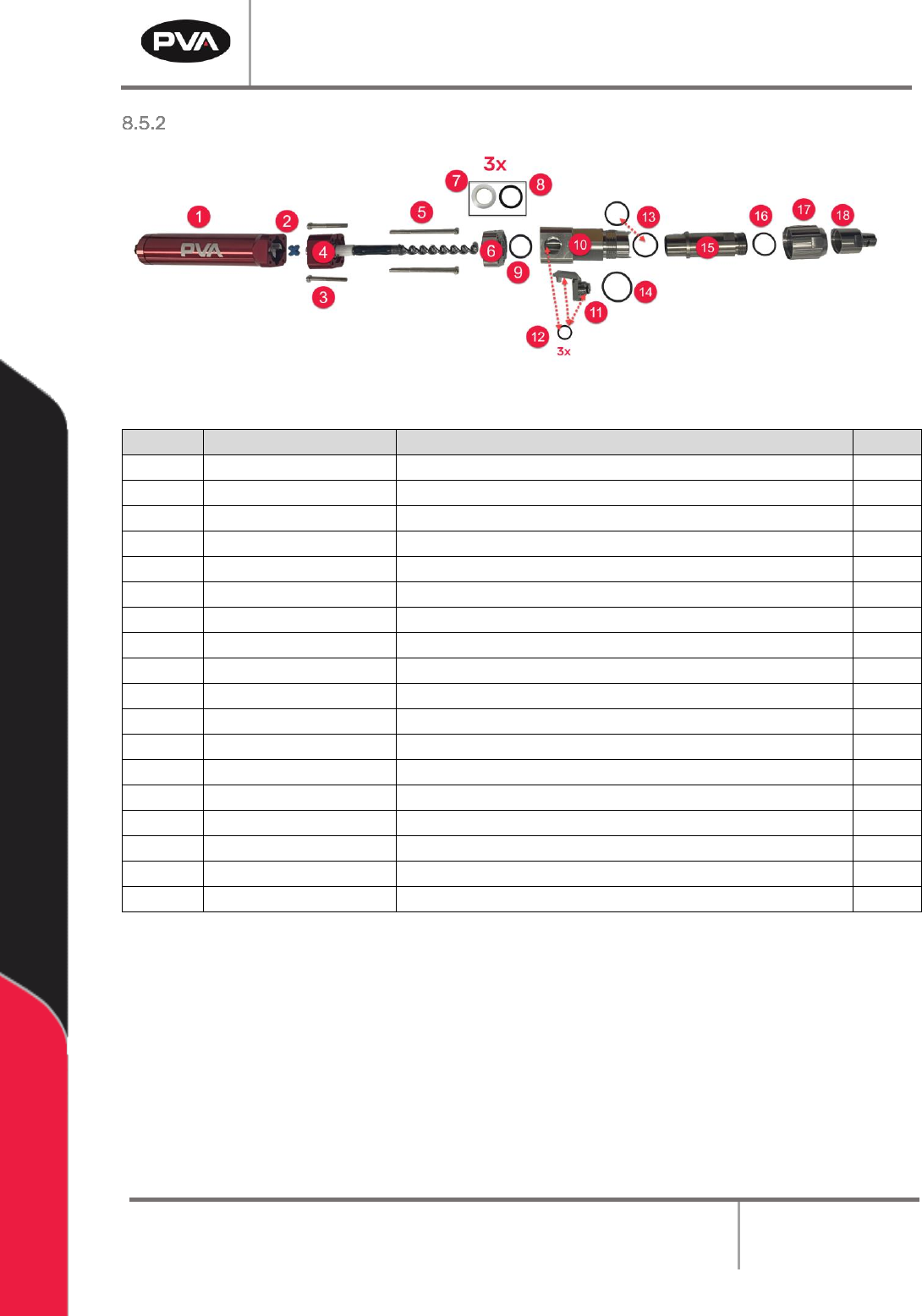

Figure 65: PCP1000 Bill of Materials
PCP Series Manual
Revision B / October 2021
Page 49 of 56
PCP1000-C Bill of Materials
Figure 66: PCP1000-C Disassembled
Item
Part Number
Description
Qty
1
PCP1000-A3
MOTOR ASSEMBLY, PCP1000
1
2
PCP-1000-8
COUPLING, URETHANE, PCP1000
1
3
PCP-1000-K
SHCS, M3 x 35mm, PCP1000
2
4
PCP-1000-A2-WC
ROTOR, TUNGSTEN CARBIDE, PCP1000-C
1
5
PCP-1000-J
SHCS, M3 x 55mm, PCP1000
2
6
PCP-1000-6
SEAL BLOCK, AL2024, PCP1000
1
7
PCP-1000-7
SEAL, ROTARY, UHMW-PE, PCP1000
3
8
PCP-1000-I
O-RING, FKM, AS015, PCP1000
3
9
PCP-1000-H
O-RING, FKM, AN016, PCP1000
1
10
PCP-1000-4-TL
CHAMBER, LEFT, SUS303, PCP1000
1
11
PCP-1000-5
PURGE KNOB, CLIP, SUS303, PCP1000
1
12
PCP-500-K
O-RING, SS5, PCP1000
3
13
PCP-1000-B
O-RING, FKM, AS017, PCP1000
2
14
PCP-1000-D
O-RING, FKM, AS019, PCP1000
1
15
PCP-1000-A1-HFS
STATOR, HFS, PCP1000-C
1
16
PCP-1000-A
O-RING, SS15, FFKM, PCP1000
1
17
PCP-1000-3
UNION CAP, SUS303, PCP1000
1
18
PCP1000-2-A
LUER ADAPTER, SUS303, PCP1000
1
Figure 67: PCP1000-C Bill of Materials
PCP Series Manual
Revision B / October 2021
Page 50 of 56
Spare Parts
A spare parts kit is available to prevent machine downtime.
Part Number: 612-10811-1
ITEM
PART NUMBER
DESCRIPTION
QTY
1
12830
O-RING, SS5, PCP050
8
2
12831
O-RING, AN016, PCP050
2
3
12836
O-RING, FKM, AS013, PCP050
2
4
12837
O-RING, FKM, P9, PCP050
2
Figure 68: Spare Parts Kit
