PCP Series Manual
Revision B / October 2021
Page 30 of 56

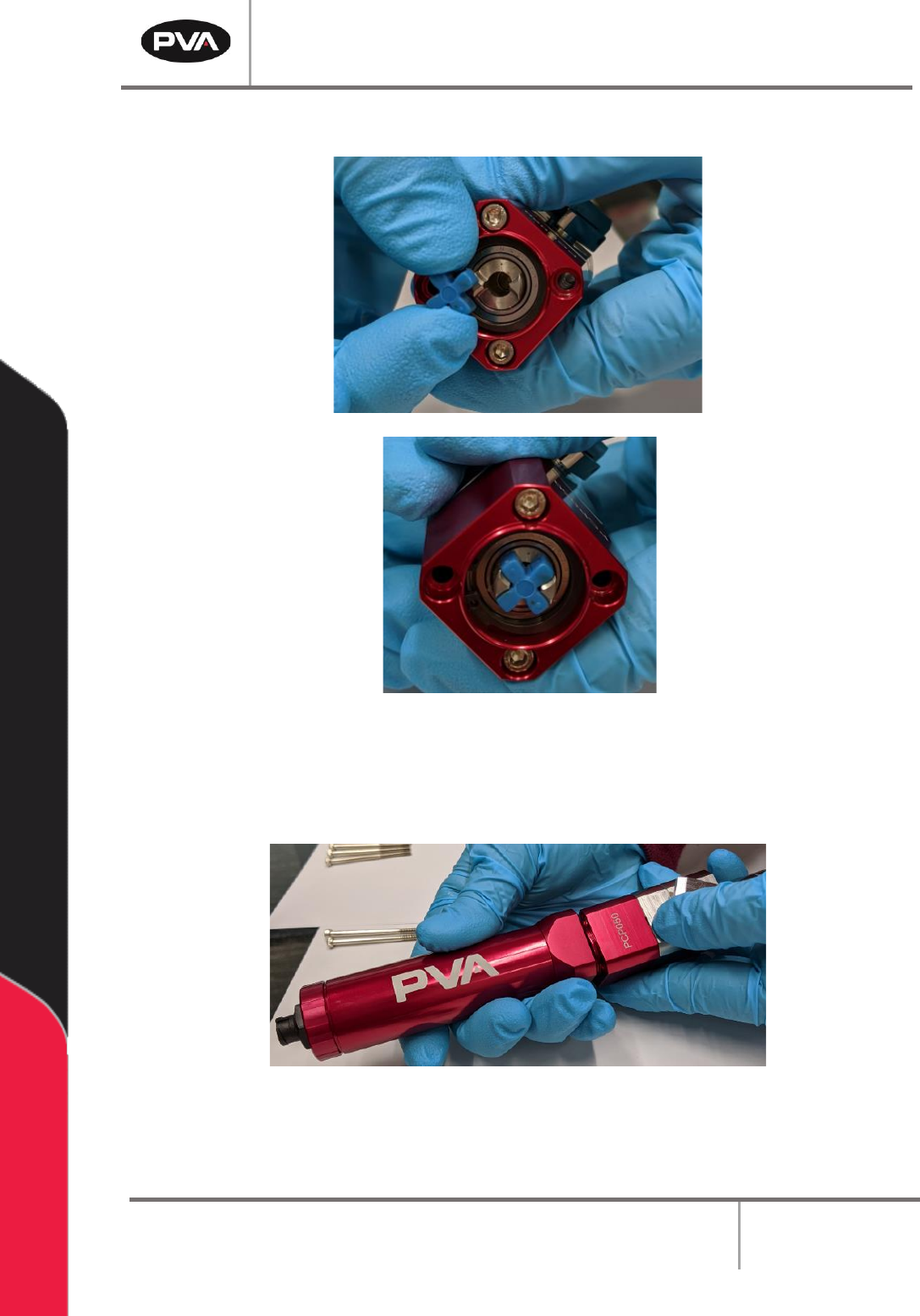

19. Install the blue coupling onto the rotor assembly.
Figure 36: Install Blue Coupling
20. Install the motor onto the rotor assembly.
Figure 37: Install Motor
PCP Series Manual
Revision B / October 2021
Page 31 of 56
21. Install the two M3 x 55 mm socket head cap screws. Tighten with 2.5 mm hex key.
Figure 38: Install Screws
22. Install the luer lock onto the stator sleeve.
Figure 39: Install Luer Lock
PCP Series Manual
Revision B / October 2021
Page 32 of 56
Figure 40: PCP Assembled
Install the Pump on the Workcell
1. Install the bolt through the mount plate into the back of the fluid body.
2. Connect the material fitting to the fluid body.
3. Install the new luer lock dispense tip onto the stator sleeve.
4. Turn the luer lock dispense tip clockwise until it is tight.
5. Attach the motor connection.
