PCP Series Manual
Revision B / October 2021
Page 27 of 56
14. Apply pump conditioner to the rotor.
15. Install the stator tool onto the rotor assembly.
Figure 30: Install Stator Tool
16. Face the tabs of the stator toward the fluid block assembly. Hold the stator tool to
stabilize and twist on the stator.
Figure 31: Install Stator onto Rotor Assembly
PCP Series Manual
Revision B / October 2021
Page 28 of 56

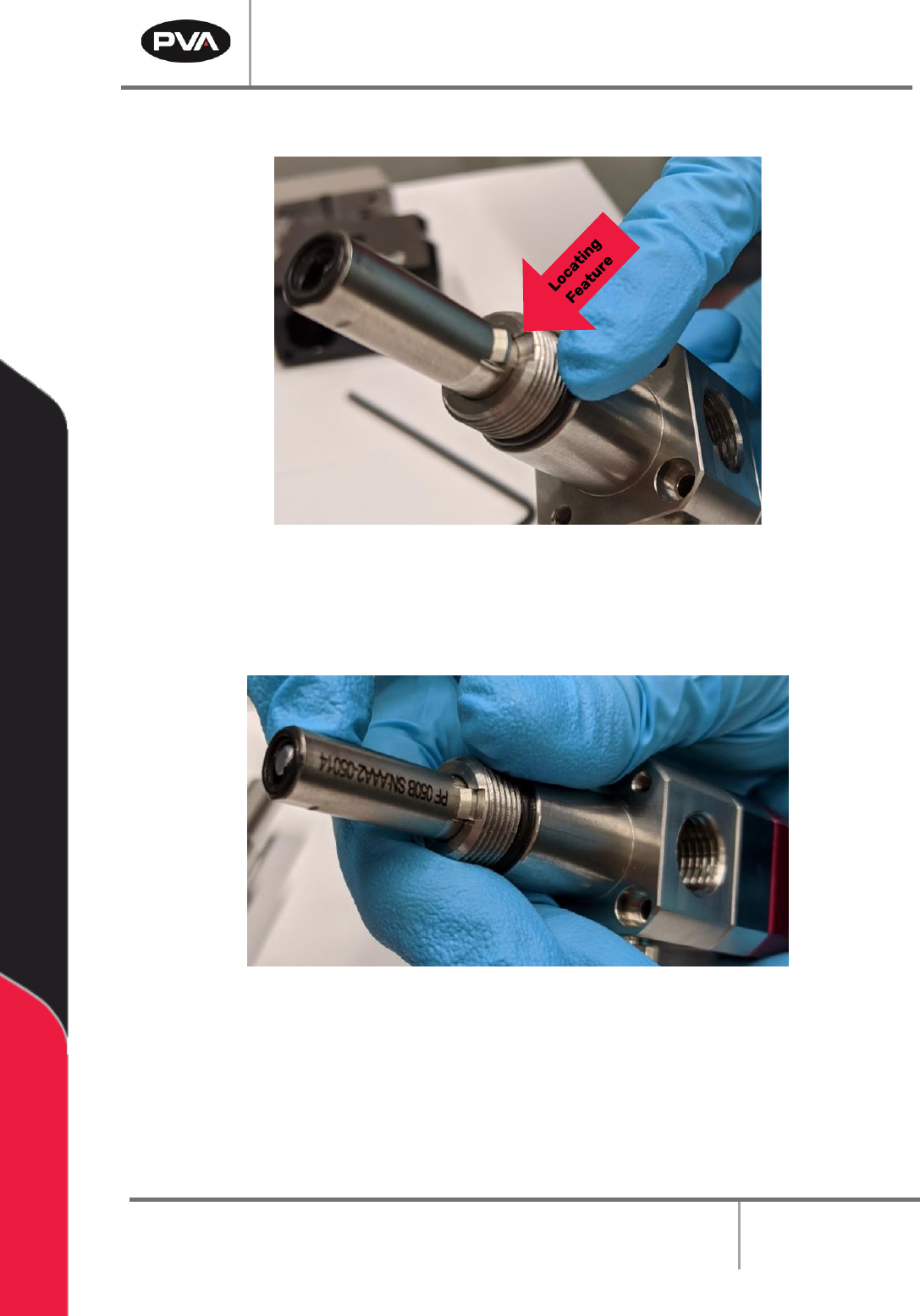

Note: Align the tabs with the locating features.
Figure 32: Align Tabs with Locating Features
Note: The rotor should be flush with the bottom of the stator.
Figure 33: Rotor and Stator
PCP Series Manual
Revision B / October 2021
Page 29 of 56

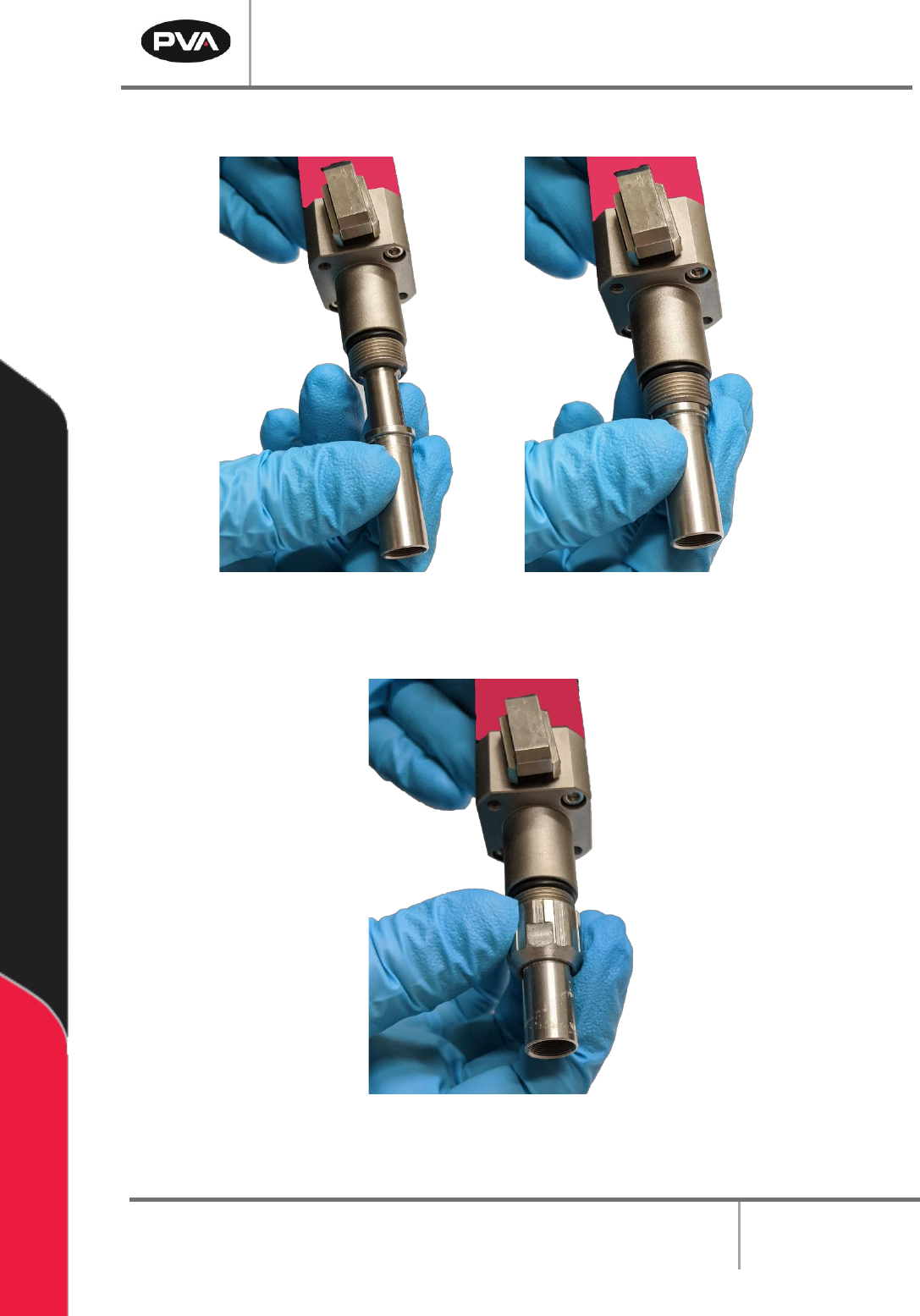

17. Slide the stator sleeve over the stator.
Figure 34: Install Stator Sleeve
18. Slide the union cap over the stator sleeve. Twist until it is secure.
Figure 35: Install Union Cap
