PCP Series Manual Revision B / October 2021 Page 23 of 56 Assembly Instructions Assemble the Pump 1. Install the seal block onto the rotor assembly. Figure 19 : Install Seal Block on Rotor Assembly Note: When installed, …
PCP Series Manual
Revision B / October 2021
Page 22 of 56

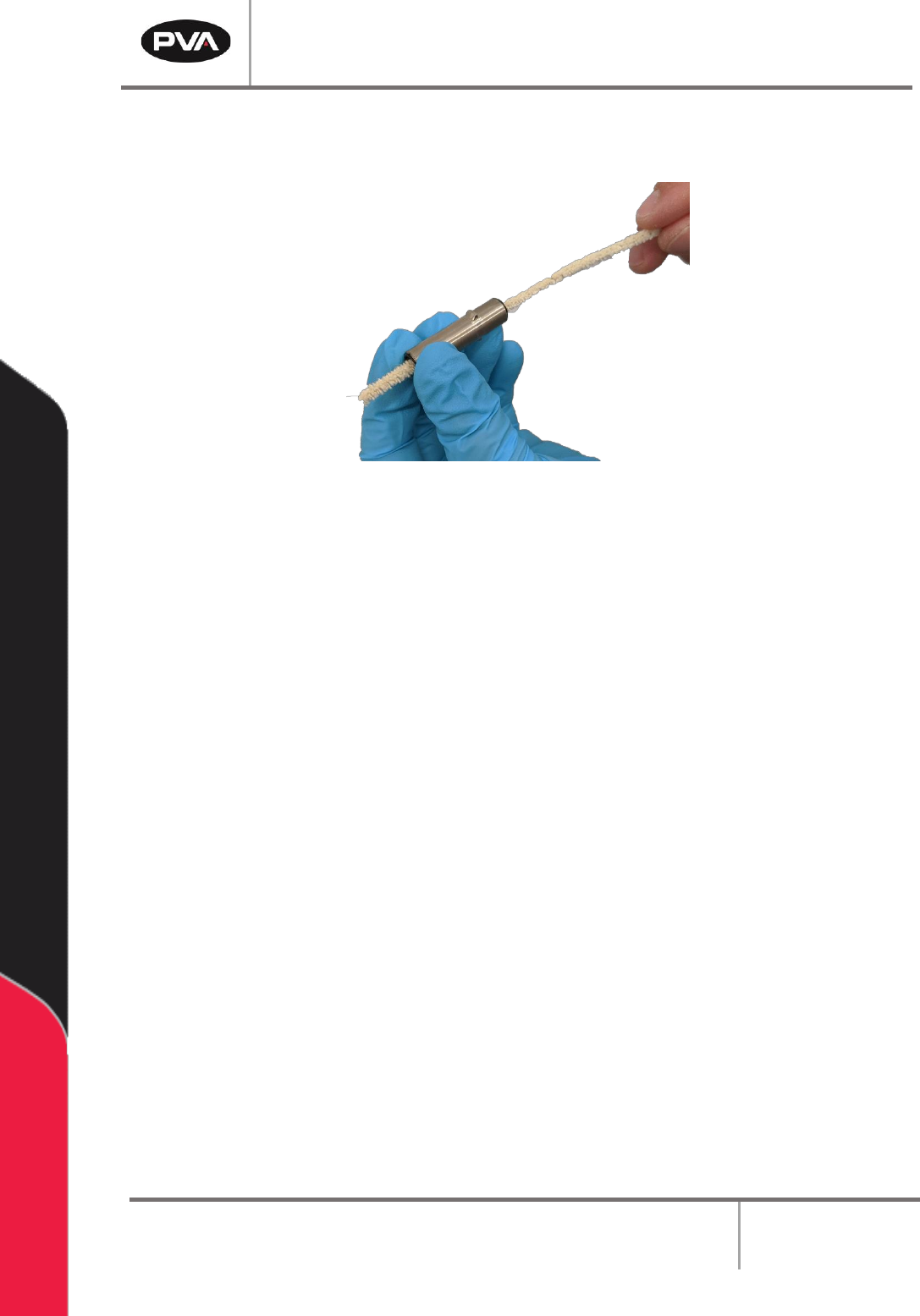

5. Make sure all material is removed from the inside and outside of the stator using a
pipe cleaner.
Figure 18: Clean the Stator
6. Make sure material is removed before assembling the pump.
7. Clean both the mix clip and manifold with solvent, cotton tipped applicators and lint
free disposal wipes.
PCP Series Manual
Revision B / October 2021
Page 23 of 56

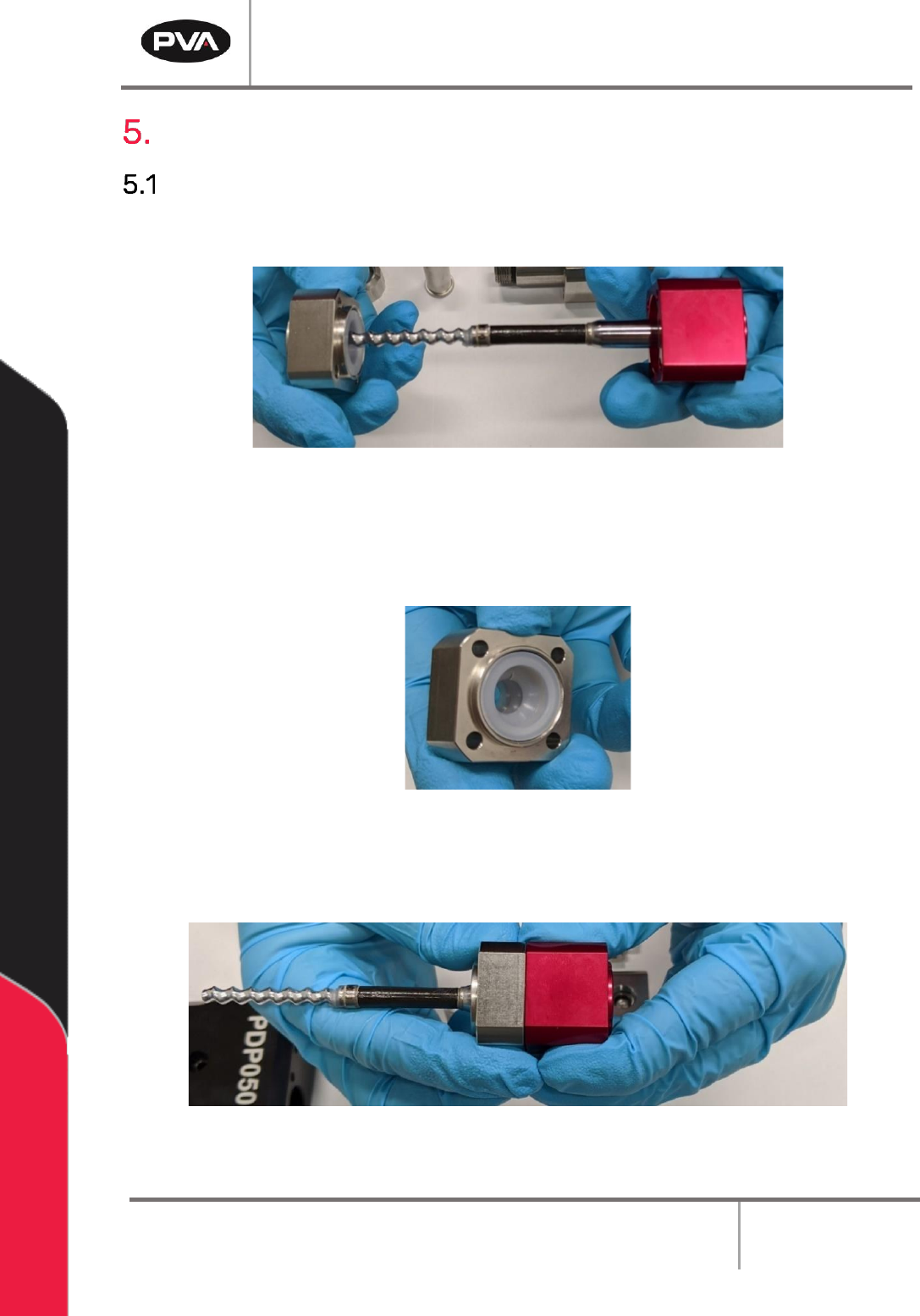

Assembly Instructions
Assemble the Pump
1. Install the seal block onto the rotor assembly.
Figure 19: Install Seal Block on Rotor Assembly
Note: When installed, the four small holes on the seal block should be facing away
from the rotor assembly. The side in the image below should be facing towards the
rotor assembly.
Figure 20: Seal Block Direction
2. Press the seal block and rotor assembly together. To avoid damage to the seals,
ensure that the seal block and rotor assembly are concentric.
Figure 21: Seal Block and Rotor Assembly
PCP Series Manual
Revision B / October 2021
Page 24 of 56
3. Lubricate the AN016 O-ring with pump conditioner.
4. Install the AN016 O-ring onto the seal block.
Figure 22: Install O-Ring on Seal Block
5. Install the fluid block onto the seal block/rotor assembly.
Figure 23: Install Fluid Block
Note: When installing the fluid block, ensure that the bleed port is on the front and
the fluid inlet is on the outer side of the pump. For example, in the left pump pictured
above, the fluid inlet is on the left side.
Bleed Port
Fluid Inlet
