PCP Series Manual
Revision B / October 2021
Page 46 of 56
PCP500 and PCP500-C

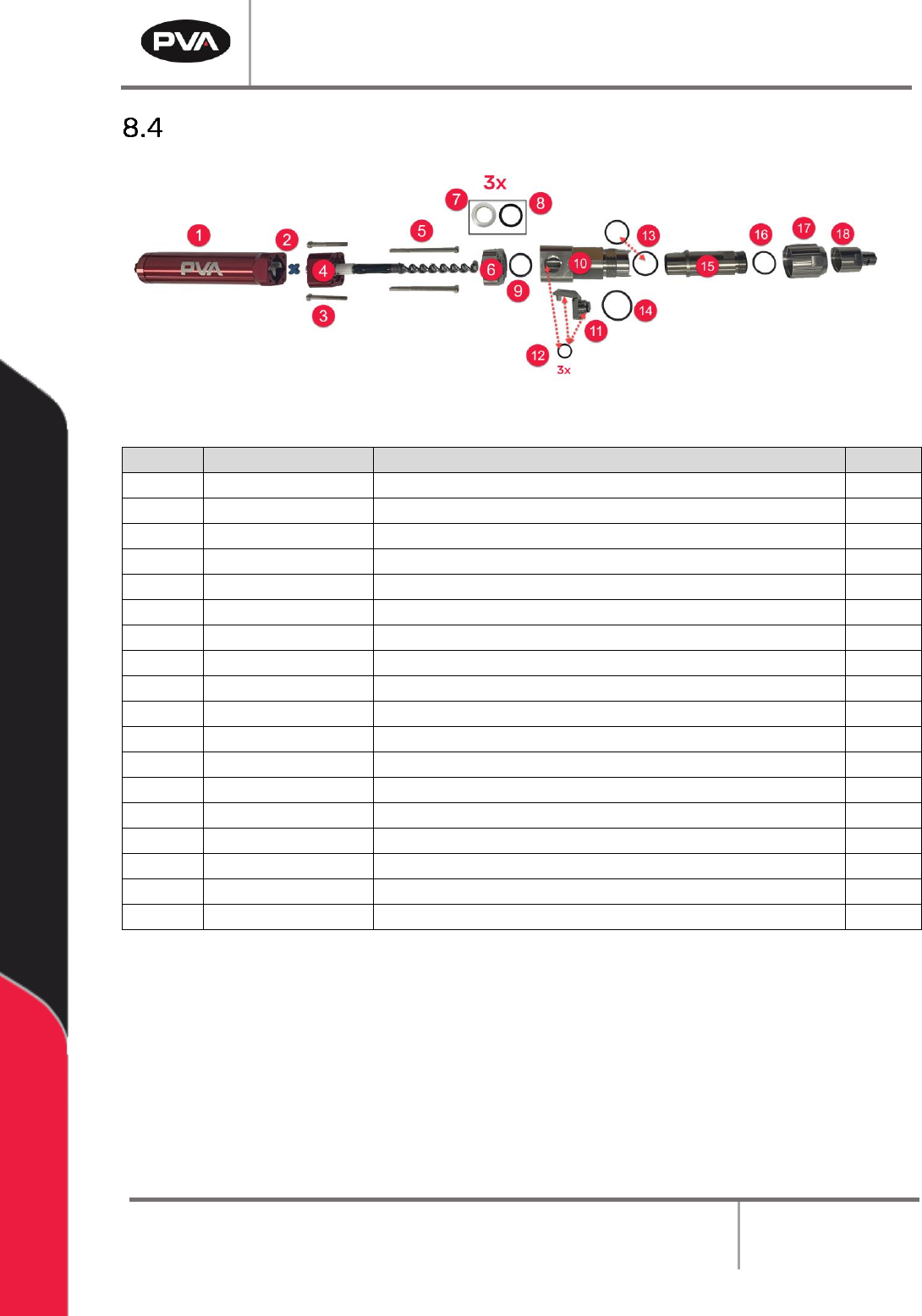

Figure 60: PCP500 Disassembled
Item
Part Number
Description
Qty
1
PCP-500-A3
MOTOR ASSEMBLY, PCP500
1
2
PCP-500-8
COUPLING, URETHANE, PCP500
1
3
PCP-500-J
SHCS, M3 x 35mm, PCP500
2
4
PCP-500-A2
ROTOR, SUS303, PCP500
1
5
PCP-500-I
SHCS, M3 x 55mm, PCP500
2
6
PCP-500-6
SEAL BLOCK, AL2024, PCP500
1
7
PCP-500-7
SEAL, ROTARY, UHMW-PE, PCP500
3
8
PCP-500-H
O-RING, FKM, AS015, PCP500
3
9
PCP-500-G
O-RING, FKM, AN016, PCP500
1
10
PCP-500-4-TL
CHAMBER, LEFT, SUS303, PCP500
1
11
PCP-500-5
PURGE KNOB, CLIP, SUS303, PCP500
1
12
PCP-500-K
O-RING, SS5, PCP500
3
13
PCP-500-B
O-RING, FKM, AS017, PCP500
2
14
PCP-500-C
O-RING, FKM, AS019, PCP500
1
15
PCP-500-A1
STATOR, FFKM, PCP500
1
16
PCP-500-A
O-RING, S15, FFKM, PCP500
1
17
PCP-500-3
UNION CAP, SUS303, PCP500
1
18
PCP-500-2-A
LUER ADAPTER, SUS303, PCP500
1

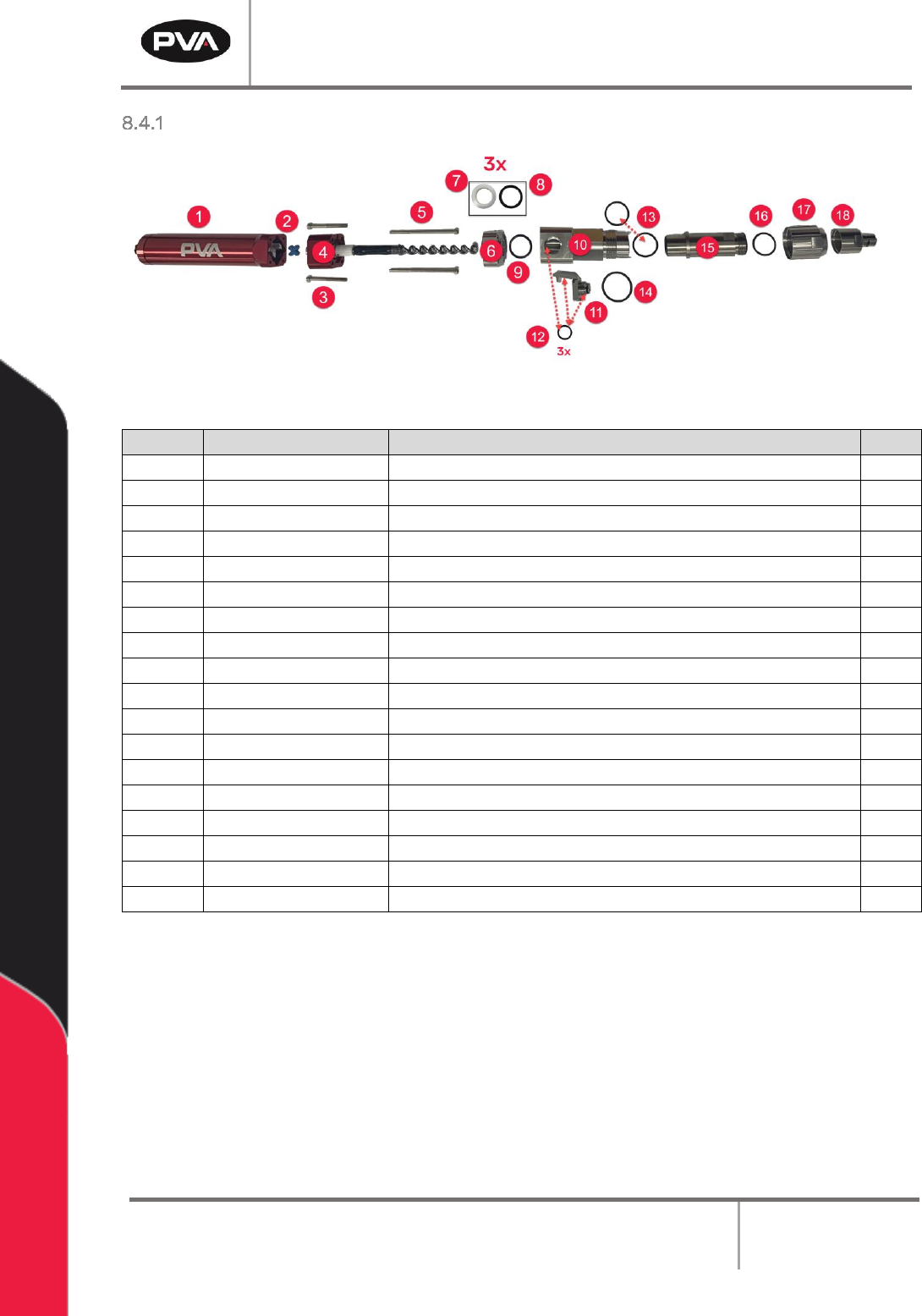

Figure 61: PCP500 Bill of Materials
PCP Series Manual
Revision B / October 2021
Page 47 of 56
PCP500-C Bill of Materials
Figure 62: PCP500-C Disassembled
Item
Part Number
Description
Qty
1
PCP-500-A3
MOTOR ASSEMBLY, PCP500
1
2
PCP-500-8
COUPLING, URETHANE, PCP500
1
3
PCP-500-J
SHCS, M3 x 35mm, PCP500
2
4
PCP-500-A2-WC
ROTOR, TUNGSTEN CARBIDE, PCP500-C
1
5
PCP-500-I
SHCS, M3 x 55mm, PCP500
2
6
PCP-500-6
SEAL BLOCK, AL2024, PCP500
1
7
PCP-500-7
SEAL, ROTARY, UHMW-PE, PCP500
3
8
PCP-500-H
O-RING, FKM, AS015, PCP500
3
9
PCP-500-G
O-RING, FKM, AN016, PCP500
1
10
PCP-500-4-TL
CHAMBER, LEFT, SUS303, PCP500
1
11
PCP-500-5
PURGE KNOB, CLIP, SUS303, PCP500
1
12
PCP-500-K
O-RING, SS5, PCP500
3
13
PCP-500-B
O-RING, FKM, AS017, PCP500
2
14
PCP-500-C
O-RING, FKM, AS019, PCP500
1
15
PCP-500-A1-HFS
STATOR, HFS, PCP500-C
1
16
PCP-500-A
O-RING, S15, FFKM, PCP500
1
17
PCP-500-3
UNION CAP, SUS303, PCP500
1
18
PCP-500-2-A
LUER ADAPTER, SUS303, PCP500
1

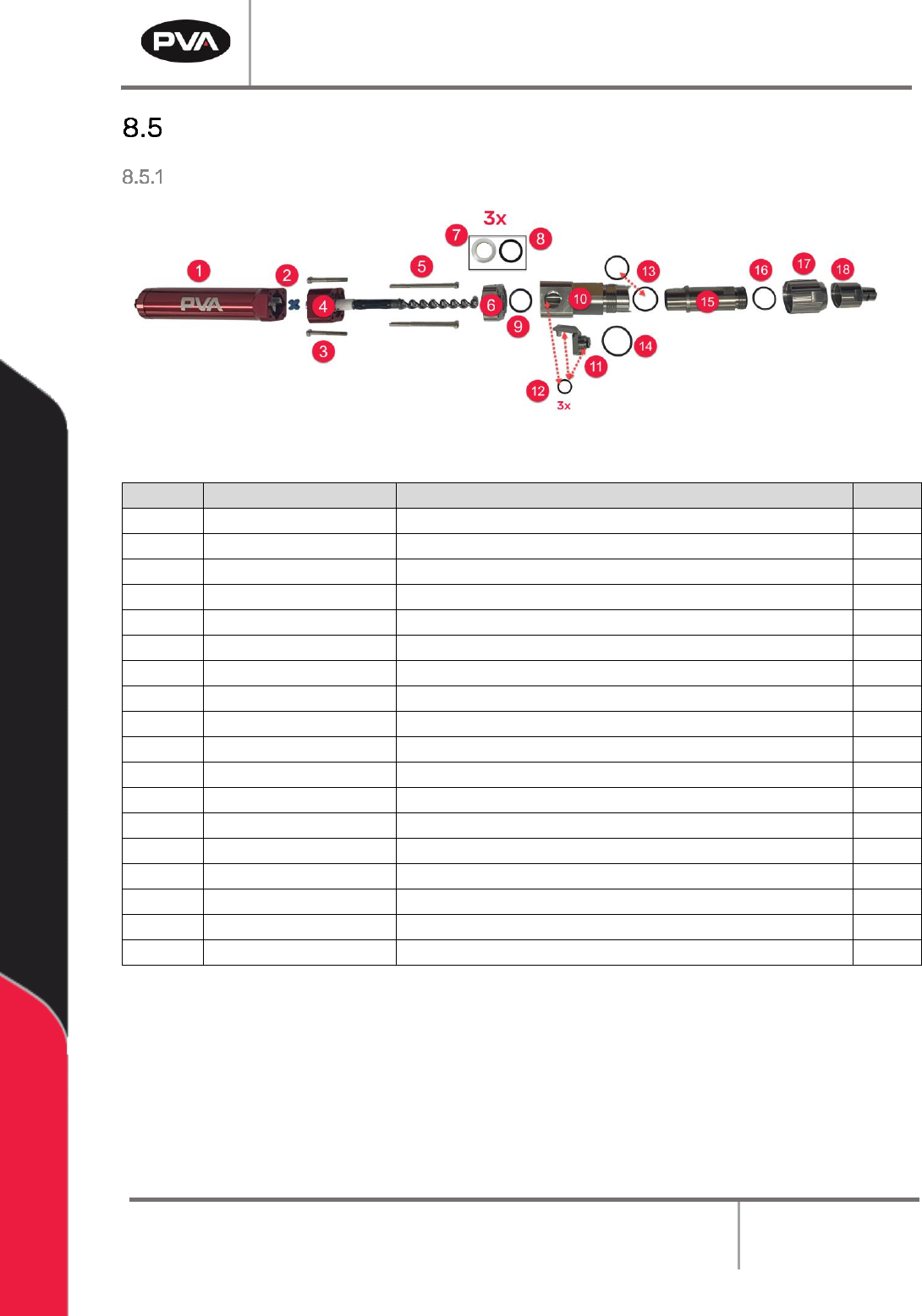

Figure 63: PCP500-C Bill of Materials
PCP Series Manual
Revision B / October 2021
Page 48 of 56
PCP1000 and PCP1000-C
PCP1000 Bill of Materials
Figure 64: PCP1000 Disassembled
Item
Part Number
Description
Qty
1
PCP1000-A3
MOTOR ASSEMBLY, PCP1000
1
2
PCP-1000-8
COUPLING, URETHANE, PCP1000
1
3
PCP-1000-K
SHCS, M3 x 35mm, PCP1000
2
4
PCP-1000-A2
ROTOR, SUS303, PCP1000
1
5
PCP-1000-J
SHCS, M3 x 55mm, PCP1000
2
6
PCP-1000-6
SEAL BLOCK, AL2024, PCP1000
1
7
PCP-1000-7
SEAL, ROTARY, UHMW-PE, PCP1000
3
8
PCP-1000-I
O-RING, FKM, AS015, PCP1000
3
9
PCP-1000-H
O-RING, FKM, AN016, PCP1000
1
10
PCP-1000-4-TL
CHAMBER, LEFT, SUS303, PCP1000
1
11
PCP-1000-5
PURGE KNOB, CLIP, SUS303, PCP1000
1
12
PCP-500-K
O-RING, SS5, PCP1000
3
13
PCP-1000-B
O-RING, FKM, AS017, PCP1000
2
14
PCP-1000-D
O-RING, FKM, AS019, PCP1000
1
15
PCP-1000-A1
STATOR, FFKM, PCP1000
1
16
PCP-1000-A
O-RING, SS15, FFKM, PCP1000
1
17
PCP-1000-3
UNION CAP, SUS303, PCP1000
1
18
PCP1000-2-A
LUER ADAPTER, SUS303, PCP1000
1
Figure 65: PCP1000 Bill of Materials
