Dispense
1. Select Manual from the cycle stop screen.
2. Select the PCP050 tab.
3. Select the Dispense tab.
4. Set the Dispense Rate in grams per minute. Select the value box and use the up
and down arrows or use the keyboard to type the value.
5. Select the Suckback On button to toggle it on and off.
6. Set the Suckback time in seconds. Select the value box and use the up and down
arrows or use the keyboard to type the value.
7. Select Apply to Auto to apply the set values to Auto Mode.

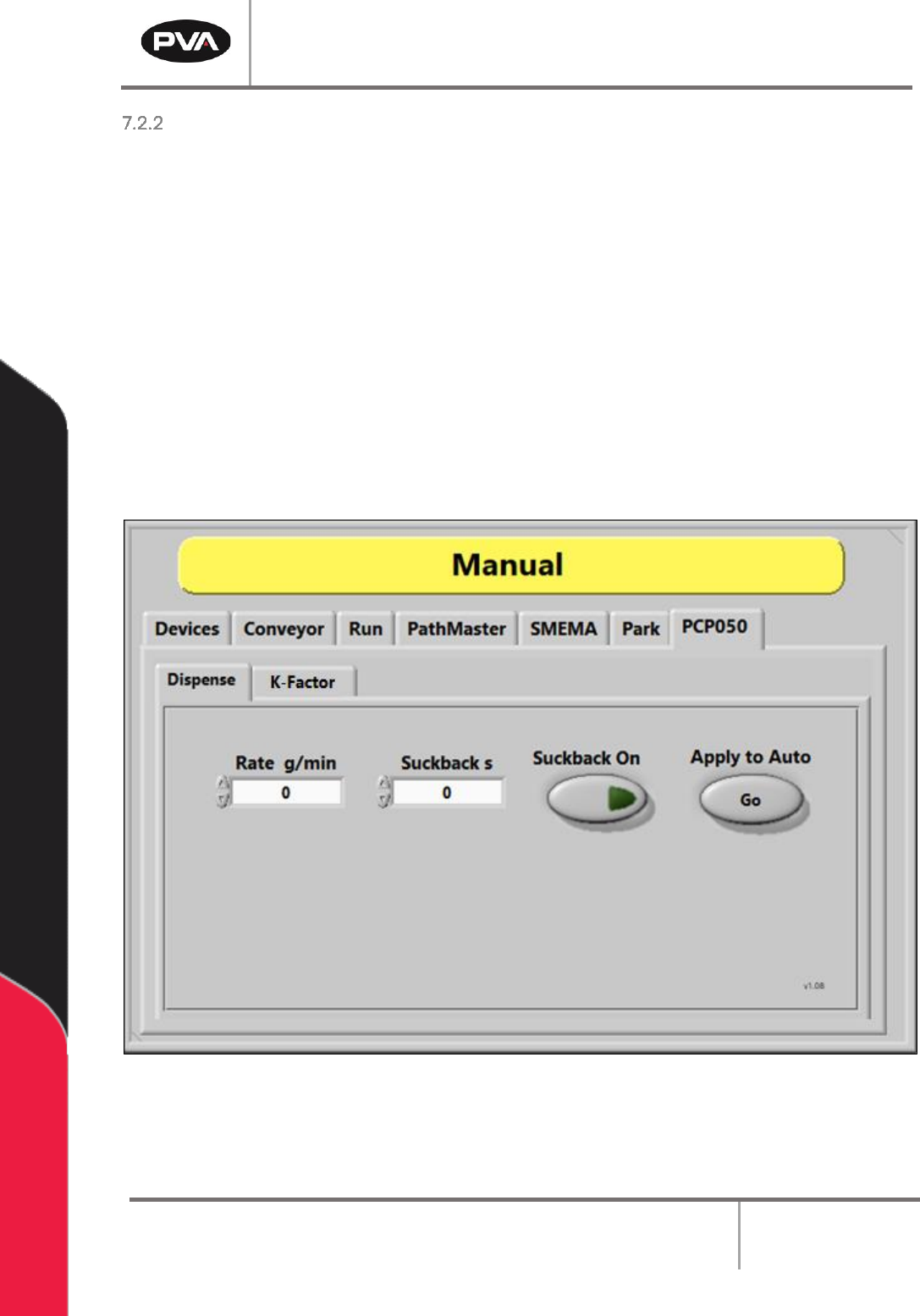

Figure 45: Dispense Screen
PCP Series Manual
Revision B / October 2021
Page 38 of 56
K-Factor
The K-Factor multiplies the speed to increase or decrease motor speed by a percentage.
The system follows the equation below:
(Actual Material Ouput Weight) x (K-Factor) = (Expected Material Output Weight)
If there is not enough material, the K-Factor should be increased. If there is too much
material, the K-Factor should be decreased. To determine if the K-Factor needs to be
adjusted to get the right amount of material for your settings, set the flow rate and
dispense for X amount of ml/min. It is recommended to take 5-10 shots of the material and
weigh them to ensure the setting is correct. Most, if not all applications should fall into the
.8-1.2 range.
Example: If 10 ml/min is the expected output, but are getting an actual output of 9
ml/min after five shots, the K-Factor should be 1.11. This will speed up the motor to
110% and bring the material output to the expended output.
1. Select Manual from the cycle stop screen.
2. Select the PCP050 tab.
3. Select the K-Factor tab.
4. Enter the K-Factor for Pump B.
5. Select Apply to Auto to apply the set value to Auto Mode.

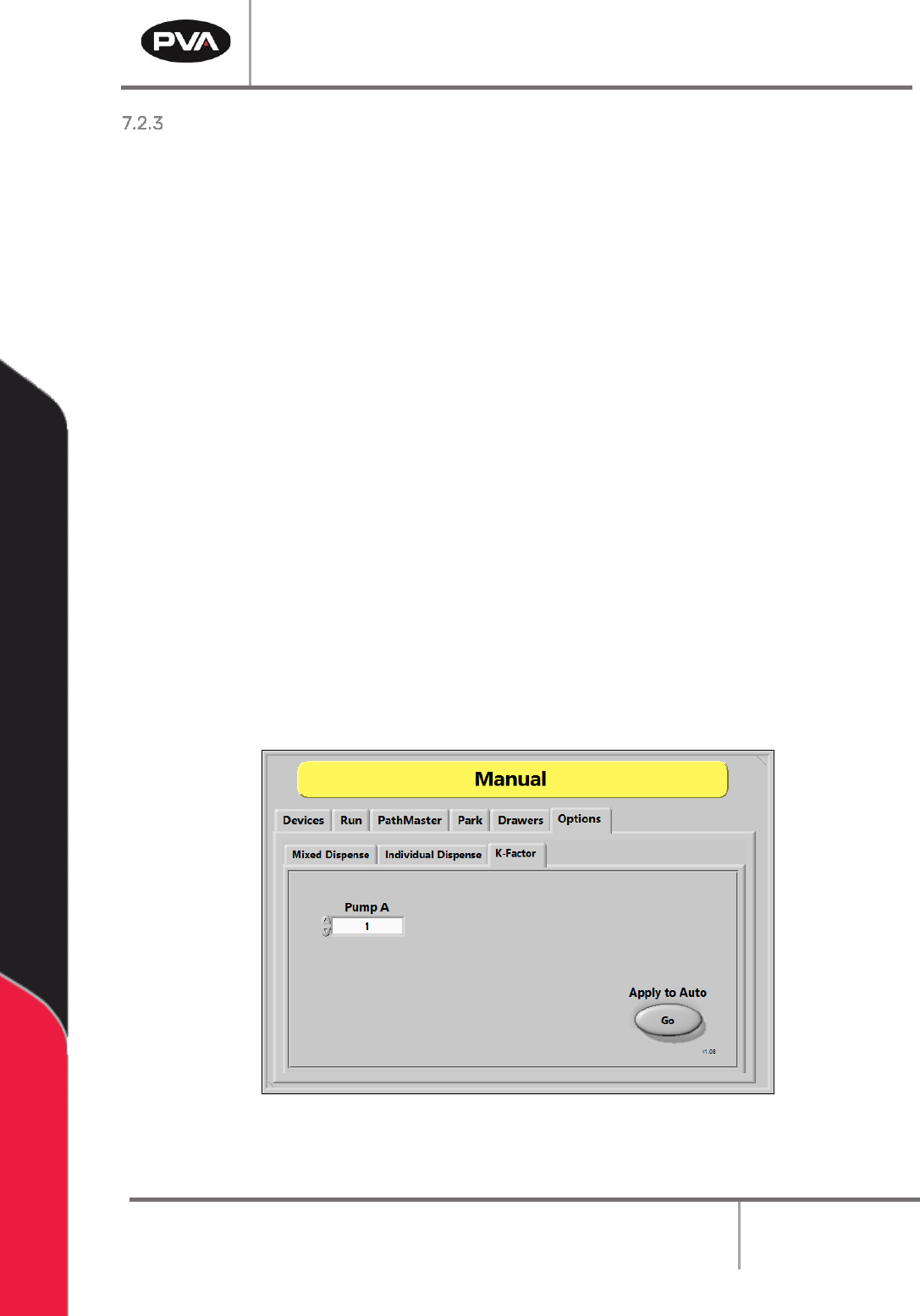

Figure 46: K-Factor Screen
PCP Series Manual
Revision B / October 2021
Page 39 of 56
Parts Breakdown
PCP015 and PCP015-C
PCP015 Bill of Materials

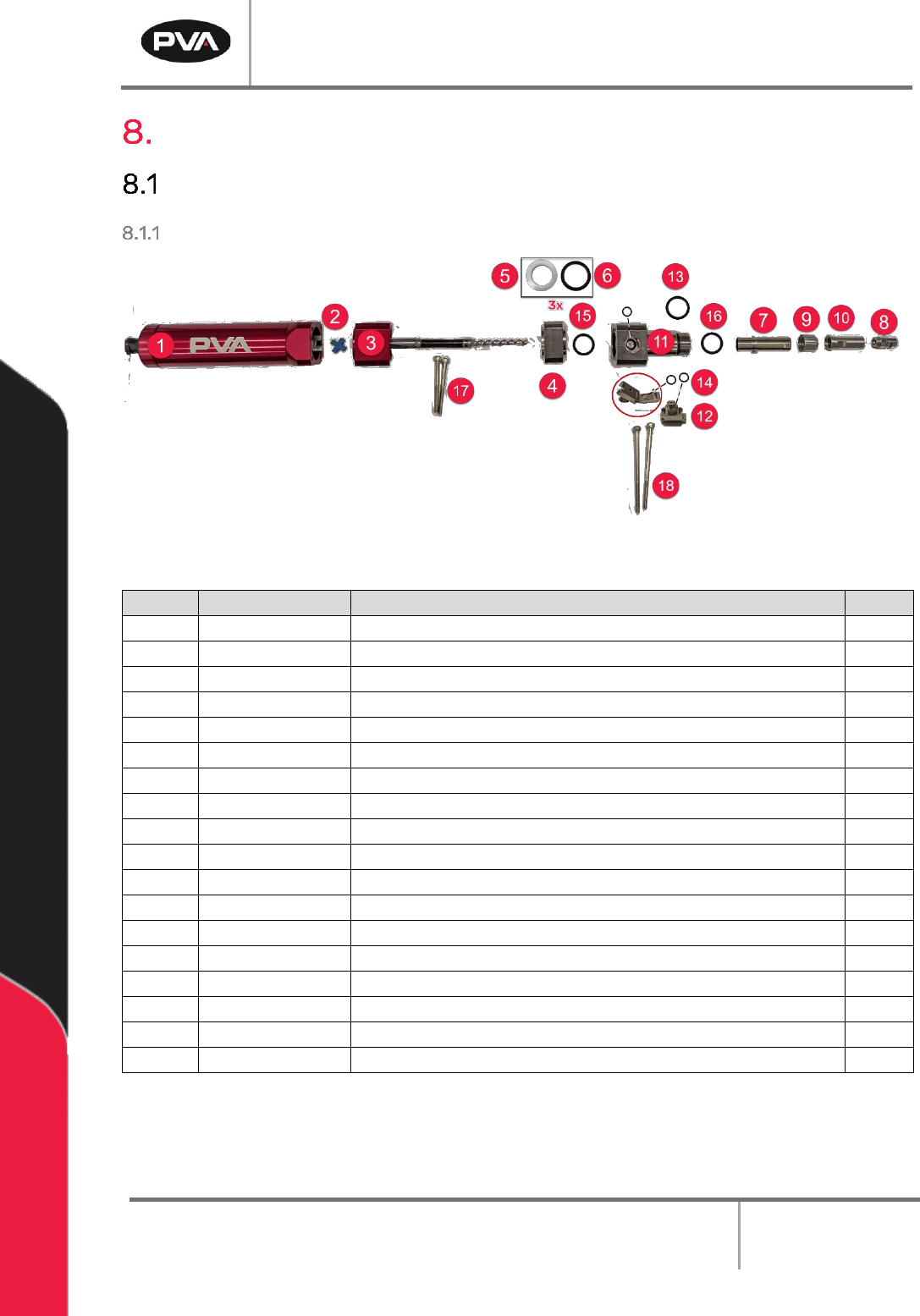

Figure 47: PCP015 Disassembled
Item
Part Number
Description
Qty
1
PCP-015-A3
MOTOR ASSEMBLY, PCP015
1
2
PCP-015-9
COUPLING, MOTOR, PCP015
1
3
PCP-015-A2
ROTOR ASSEMBLY, PCP015
1
4
PCP-015-7
SEAL BLOCK, PCP015
1
5
PCP-015-8
ROTARY SEAL, UHMW-PE, PCP015
3
6
PCP-015-G
O-RING, AN015, PCP015
3
7
PCP-015-A1
STATOR, FFKM, PCP015
1
8
PCP-015-2-A
LUER, STANDARD ADAPTER, PCP015
1
9
PCP-015-3
UNION CAP, PCP015
1
10
PCP-015-4
STATOR SLEEVE, SS, PCP015
1
11
PCP-015-5-TL
FLUID BODY, SS, LEFT PORTED, 1/4'' NPT, PCP015
1
12
PCP-015-6
BLEED CLIP, BLEED PORT, PCP015
1
13
PCP-015-B
O-RING, AS013, PCP015
1
14
PCP-015-C
O-RING, SS5, PCP015
3
15
PCP-015-F
O-RING, AN016, PCP015
1
16
PCP-015-A
O-RING, FKM, P9, PCP015
1
17
PCP-015-I
M3 X 35 MM SOCKET HEAD CAP SCREWS
2
18
PCP-015-H
M3 X 55 MM SOCKET HEAD CAP SCREWS
2
Figure 48: PCP015 Bill of Materials
