PCP-Manual-REV-C.pdf - 第17页
PCP Series Manual Revision B / October 2021 Page 17 of 56 7. Remove stator sleeve. Figure 7: Remove Stator Sleeve 8. Install the stator tool onto the rotor assembly. Figure 8: Install Stator Tool
PCP Series Manual
Revision B / October 2021
Page 16 of 56

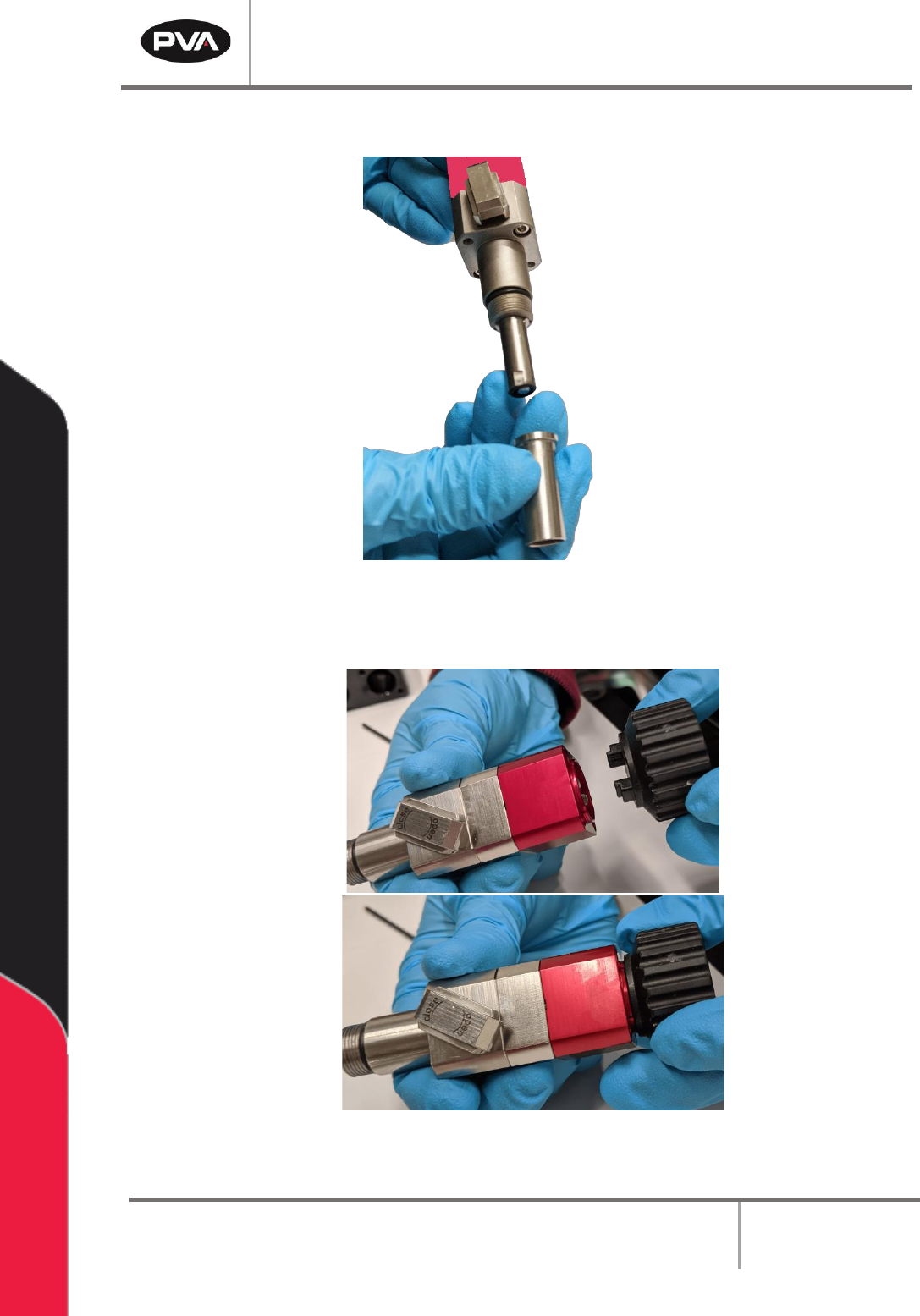

5. Twist to unscrew the luer lock and remove it from the stator sleeve.
Figure 5: Remove Luer Lock
6. Twist to unscrew the union cap and remove it from the stator sleeve.
Figure 6: Remove Union Cap
PCP Series Manual
Revision B / October 2021
Page 17 of 56

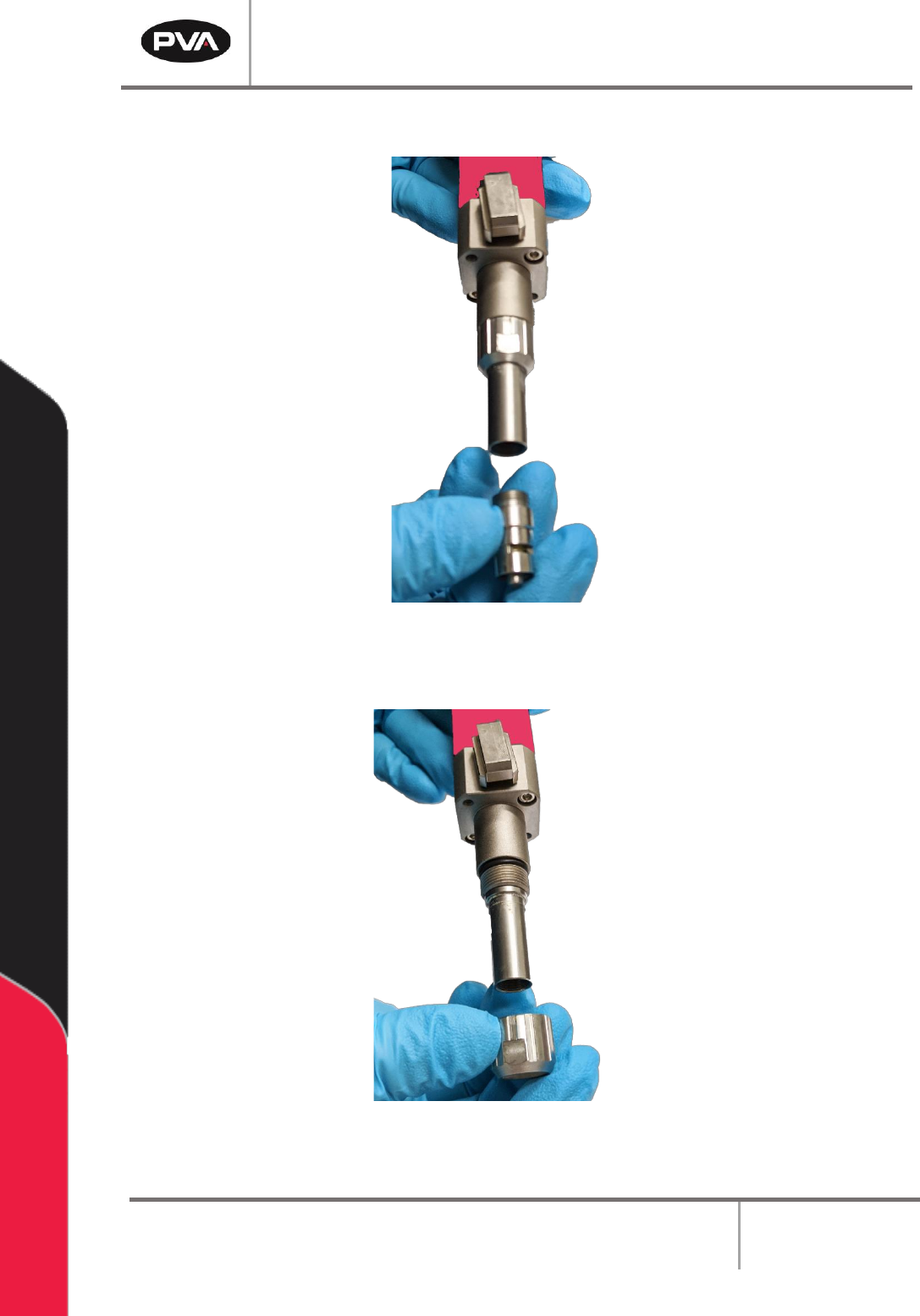

7. Remove stator sleeve.
Figure 7: Remove Stator Sleeve
8. Install the stator tool onto the rotor assembly.
Figure 8: Install Stator Tool
PCP Series Manual
Revision B / October 2021
Page 18 of 56

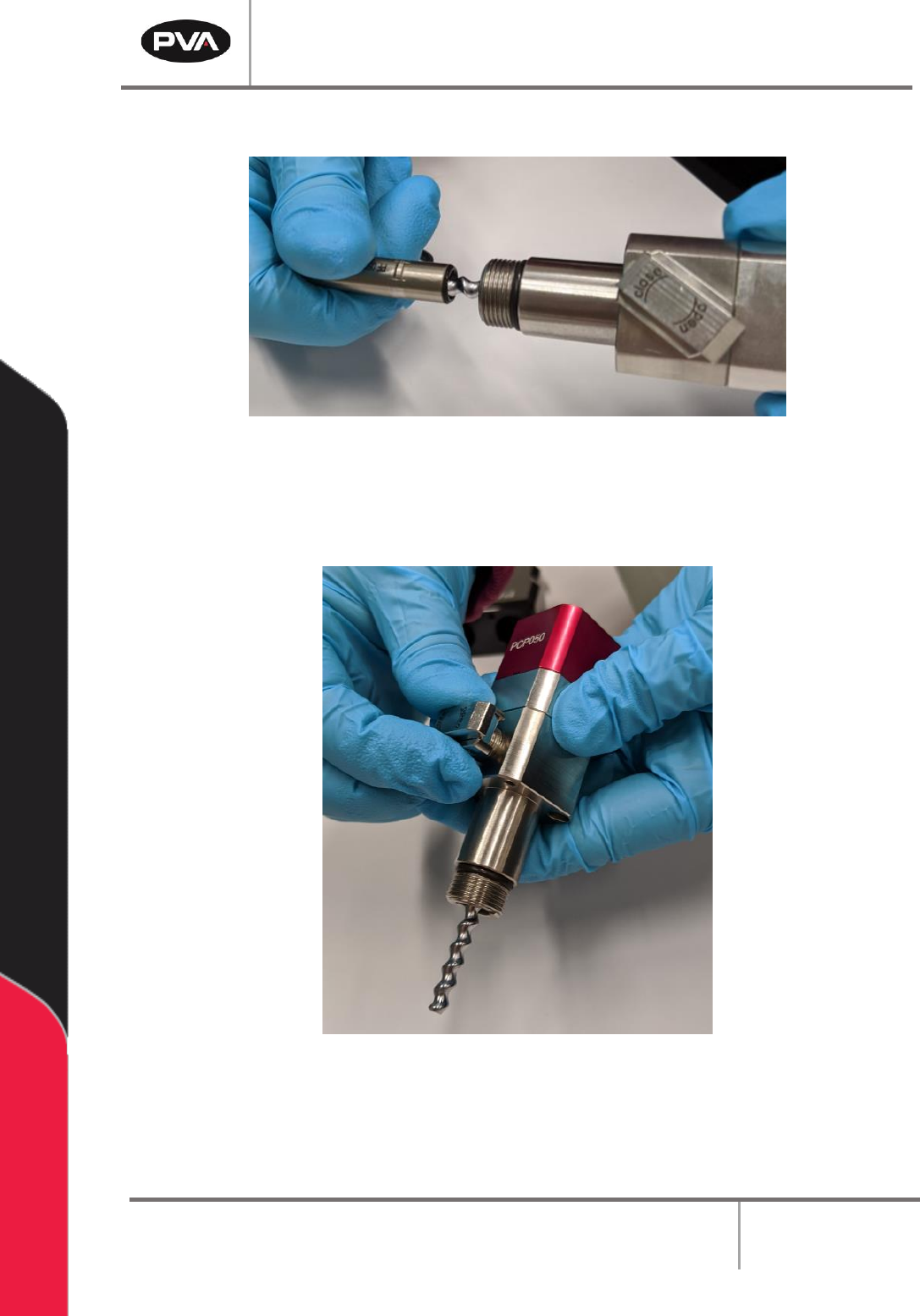

9. Hold the stator tool to stabilize and twist counterclockwise to remove the stator.
Figure 9: Remove Stator
10. Twist to remove the bleed clip from the vent port.
Figure 10: Remove Bleed Clip
