PCP Series Manual
Revision B / October 2021
Page 31 of 56

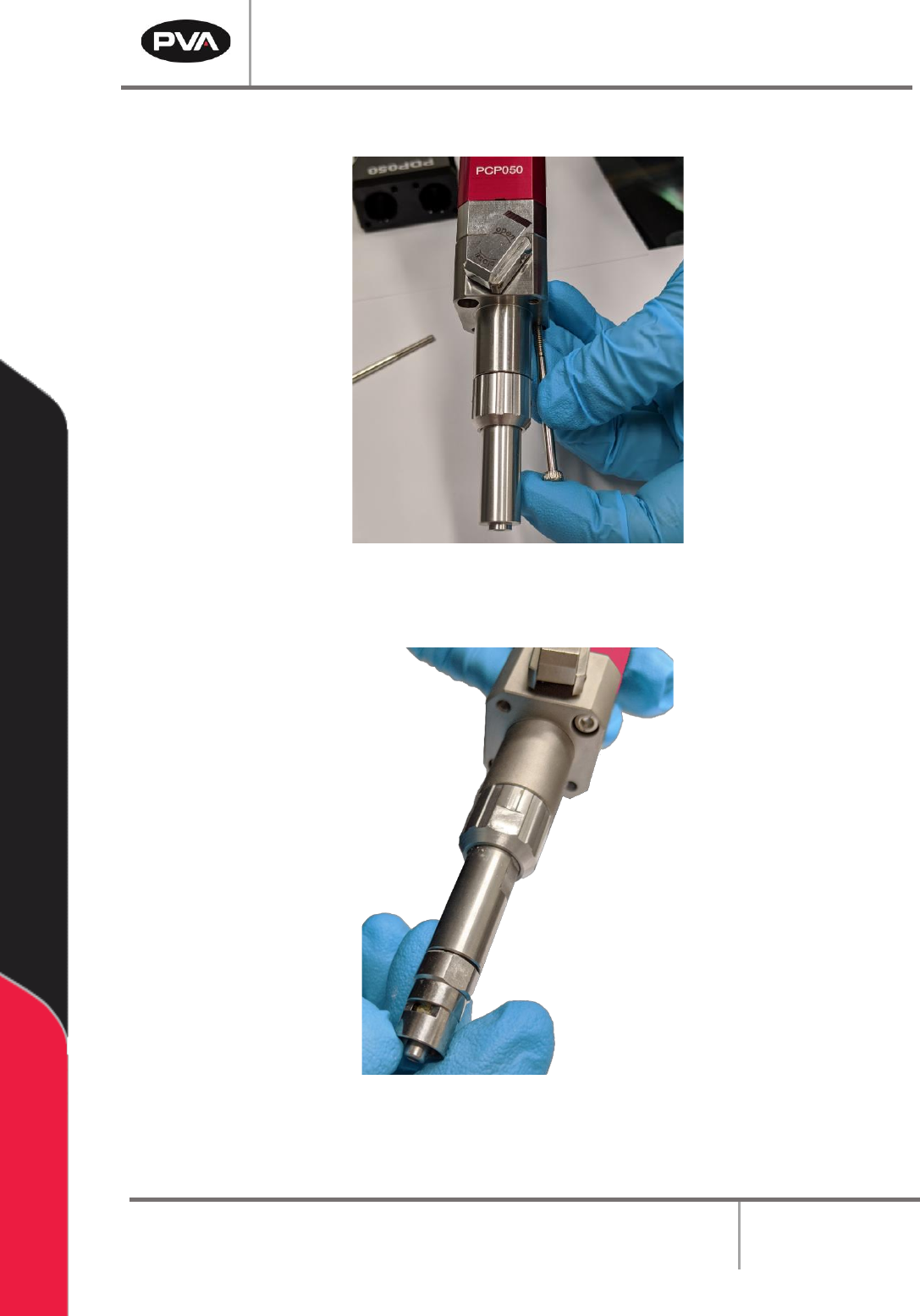

21. Install the two M3 x 55 mm socket head cap screws. Tighten with 2.5 mm hex key.
Figure 38: Install Screws
22. Install the luer lock onto the stator sleeve.
Figure 39: Install Luer Lock
PCP Series Manual
Revision B / October 2021
Page 32 of 56
Figure 40: PCP Assembled
Install the Pump on the Workcell
1. Install the bolt through the mount plate into the back of the fluid body.
2. Connect the material fitting to the fluid body.
3. Install the new luer lock dispense tip onto the stator sleeve.
4. Turn the luer lock dispense tip clockwise until it is tight.
5. Attach the motor connection.
PCP Series Manual
Revision B / October 2021
Page 33 of 56
Maintenance
Interval
Action
Daily
• Examine the material outlet for contamination and cured material.
• Make sure the volume and flow rate of the material is correct.
• Examine the motor cable and material supply hose for signs of
wear, kinks, or twists.
Weekly
• Examine the material container or cartridge for signs of cured or
dried material.
• Replace filters if necessary.
• Examine the motor cable and material supply hose for signs of
wear, kinks, or twists.
Replace the Dispense Needle
It is necessary to change the dispense needle when the pressure goes out of range. How
frequently you change the dispense needle depends on the type of material being
dispensed and the number of cycles done per day. Each time the dispense needle is
changed it is necessary to clean the material outlet on the manifold.
Figure 41: Material Outlet
1. Turn the luer lock dispense tip counterclockwise and pull to remove the dispense
needle.
2. Discard the luer lock dispense tip.
3. Clean the material outlet. Use solvent, cotton tipped applicators and lint free
disposal wipes.
4. Install the luer lock dispense tip and turn it clockwise until it is tight.
5. Purge the pump.
