PCP Series Manual
Revision B / October 2021
Page 41 of 56
PCP050 and PCP050-C
PCP050 Bill of Materials

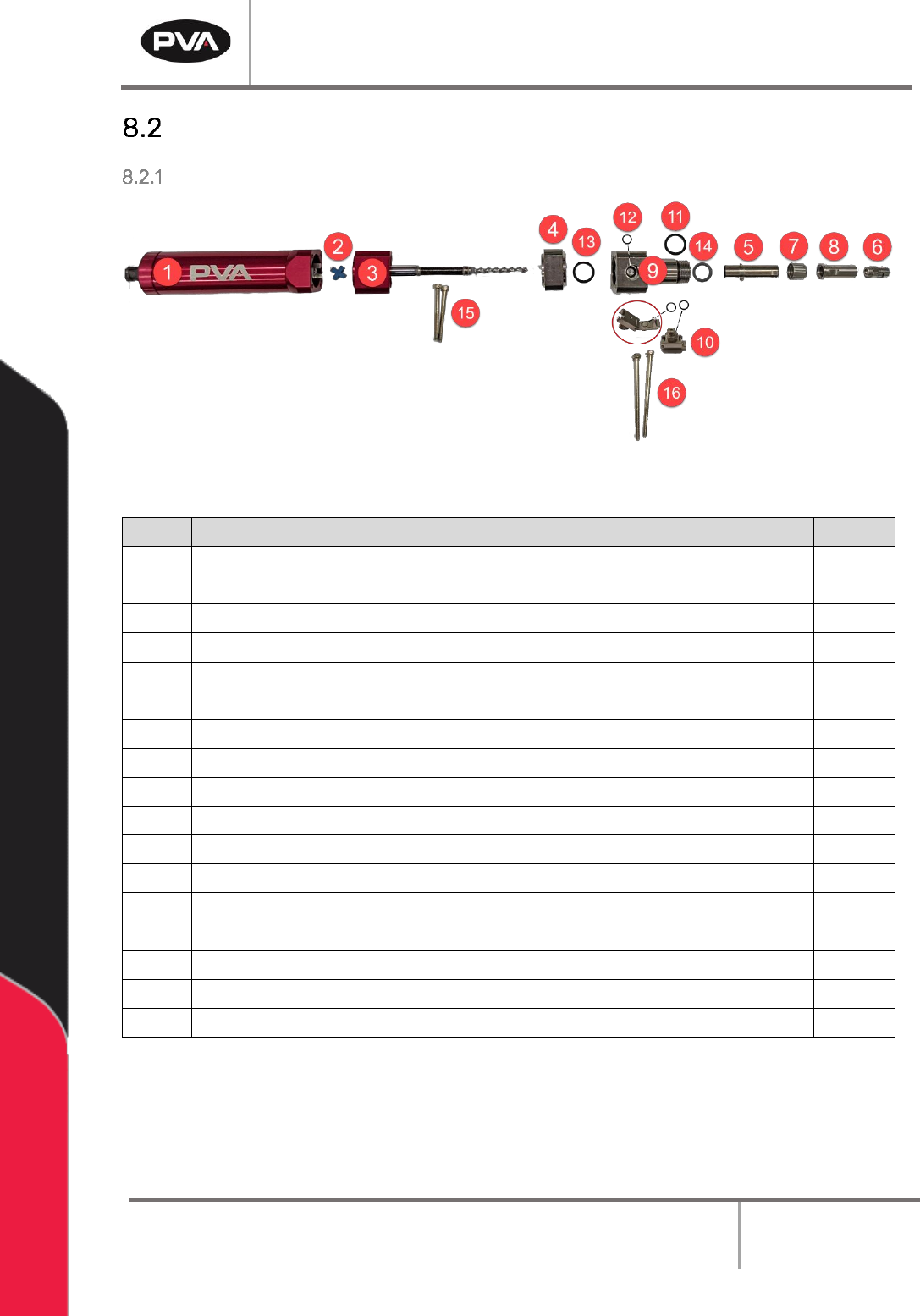

Figure 51: PCP050 Disassembled
Item
Part Number
Description
Qty
1
12813
MOTOR ASSEMBLY, PCP050
1
2
12814
COUPLING, MOTOR, PCP050
1
3
12815
ROTOR ASSEMBLY, PCP050
1
4
12838
SEAL BLOCK ASSEMBLY, PCP050
1
5
12819
STATOR, FFKM, PCP050
1
6
12821
LUER, STANDARD ADAPTER, PCP050
1
7
12822
UNION CAP, PCP050
1
8
12823
STATOR SLEEVE, SS, PCP050
1
9
12824
FLUID BODY, SS, LEFT PORTED, 1/4'' NPT, PCP050
1
10
12825
BLEED CLIP, BLEED PORT, PCP050
1
11
12827
O-RING, AS013, PCP050
1
12
12830
O-RING, SS5, PCP050
3
13
12831
O-RING, AN016, PCP050
1
14
12837
O-RING, FKM, P9, PCP050
1
15
12840
Cable, Motor, PCP/PDP, shielded, high flex, 5 meter
1
16
M3 X 35 MM SOCKET HEAD CAP SCREWS
2
17
M3 X 55 MM SOCKET HEAD CAP SCREWS
2
Figure 52: PCP050 Bill of Materials
PCP Series Manual
Revision B / October 2021
Page 42 of 56
PCP050-C Bill of Materials

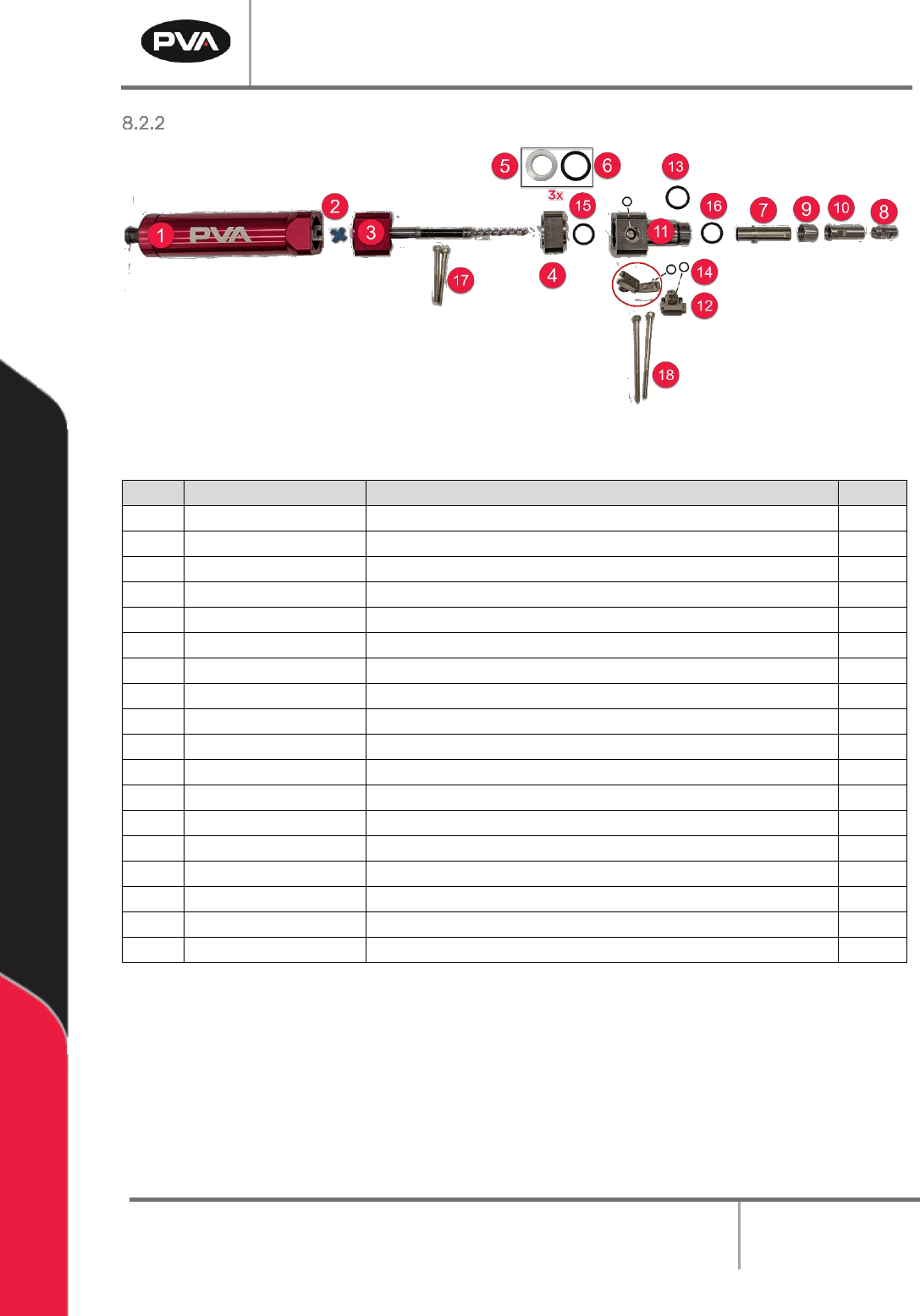

Figure 53: PCP050-C Disassembled
Item
Part Number
Description
Qty
1
PCP-050-A3
MOTOR ASSEMBLY, PCP050
1
2
PCP-050-9
COUPLING, MOTOR, PCP050
1
3
PCP-050-A2-WC
ROTOR ASSEMBLY, TUNGSTEN CARBIDE, PCP050-C
1
4
PCP-050-7
SEAL BLOCK, PCP050
1
5
PCP-050-8
ROTARY SEAL, UHMW-PE, PCP050
3
6
PCP-050-G
O-RING, AN050, PCP050
3
7
PCP-050-A1-HFS
STATOR, HFS, PCP050-C
1
8
PCP-050-2-A
LUER, STANDARD ADAPTER, PCP050
1
9
PCP-050-3
UNION CAP, PCP050
1
10
PCP-050-4
STATOR SLEEVE, SS, PCP050
1
11
PCP-050-5-TL
FLUID BODY, SS, LEFT PORTED, 1/4'' NPT, PCP050
1
12
PCP-050-6
BLEED CLIP, BLEED PORT, PCP050
1
13
PCP-050-B
O-RING, AS013, PCP050
1
14
PCP-050-C
O-RING, SS5, PCP050
3
15
PCP-050-F
O-RING, AN016, PCP050
1
16
PCP-050-A
O-RING, FKM, P9, PCP050
1
17
PCP-050-I
M3 X 35 MM SOCKET HEAD CAP SCREWS
2
18
PCP-050-H
M3 X 55 MM SOCKET HEAD CAP SCREWS
2
PCP Series Manual
Revision B / October 2021
Page 43 of 56
PCP150 and PCP150-C
PCP150 Bill of Materials
Figure 54: PCP150 Disassembled
Item
Part Number
Description
Qty
1
PCP-150-A3
MOTOR ASSEMBLY, PCP150
1
2
PCP-150-8
COUPLING, URETHANE, PCP150
1
3
PCP-150-J
SHCS, M3 x 35mm, PCP150
2
4
PCP-150-A2
ROTOR, SUS303, PCP150
1
5
PCP-150-I
SHCS, M3 x 55mm, PCP150
2
6
PCP-150-6
SEAL BLOCK, AL2024, PCP150
1
7
PCP-150-7
SEAL, ROTARY, UHMW-PE, PCP150
3
8
PCP-150-H
O-RING, FKM, AS015, PCP150
3
9
PCP-150-G
O-RING, FKM, AN016, PCP150
1
10
PCP-150-4-TL
CHAMBER, LEFT, SUS303, PCP150
1
11
PCP-150-5
PURGE KNOB, CLIP, SUS303, PCP150
1
12
PCP-150-K
O-RING, SS5, PCP150
3
13
PCP-150-B
O-RING, FKM, AS014, PCP150
2
14
PCP-150-C
O-RING, FKM, AS015, PCP150
1
15
PCP-150-A1
STATOR, FFKM, PCP150
1
16
PCP-150-A
O-RING, SS10, FFKM, PCP150
1
17
PCP-150-3
UNION CAP, SUS303, PCP150
1
18
PCP-150-2-A
LUER ADAPTER, SUS303, PCP150
1
Figure 55: PCP150 Bill of Materials
