PCP Series Manual
Revision B / October 2021
Page 17 of 56
7. Remove stator sleeve.
Figure 7: Remove Stator Sleeve
8. Install the stator tool onto the rotor assembly.
Figure 8: Install Stator Tool
PCP Series Manual
Revision B / October 2021
Page 18 of 56
9. Hold the stator tool to stabilize and twist counterclockwise to remove the stator.
Figure 9: Remove Stator
10. Twist to remove the bleed clip from the vent port.
Figure 10: Remove Bleed Clip
PCP Series Manual
Revision B / October 2021
Page 19 of 56

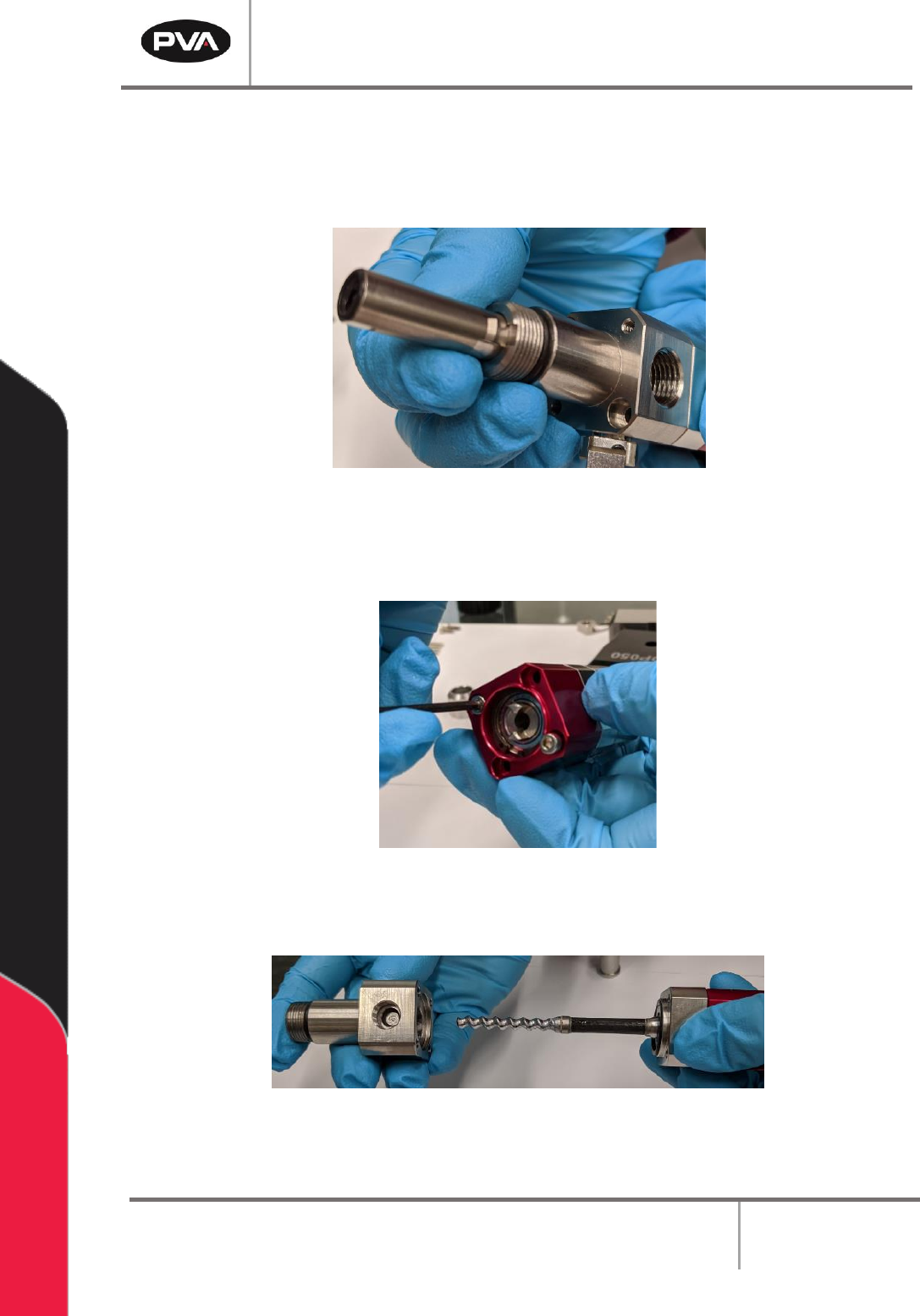

11. Remove the o-rings from the fluid block assembly.
12. Examine the o-rings for damage. Save it if it is not damaged. Replace it if it is
damaged.
Figure 11: Remove O-Ring
13. Use a 2.5 mm hex key to remove the two M3 x 35 mm socket head cap screws from
the rotor assembly.
Figure 12: Remove Screws from Rotor Assembly
14. Separate the fluid block from the seal block/rotor assembly.
Figure 13: Separate Fluid Block
