PCP Series Manual
Revision B / October 2021
Page 43 of 56
PCP150 and PCP150-C
PCP150 Bill of Materials

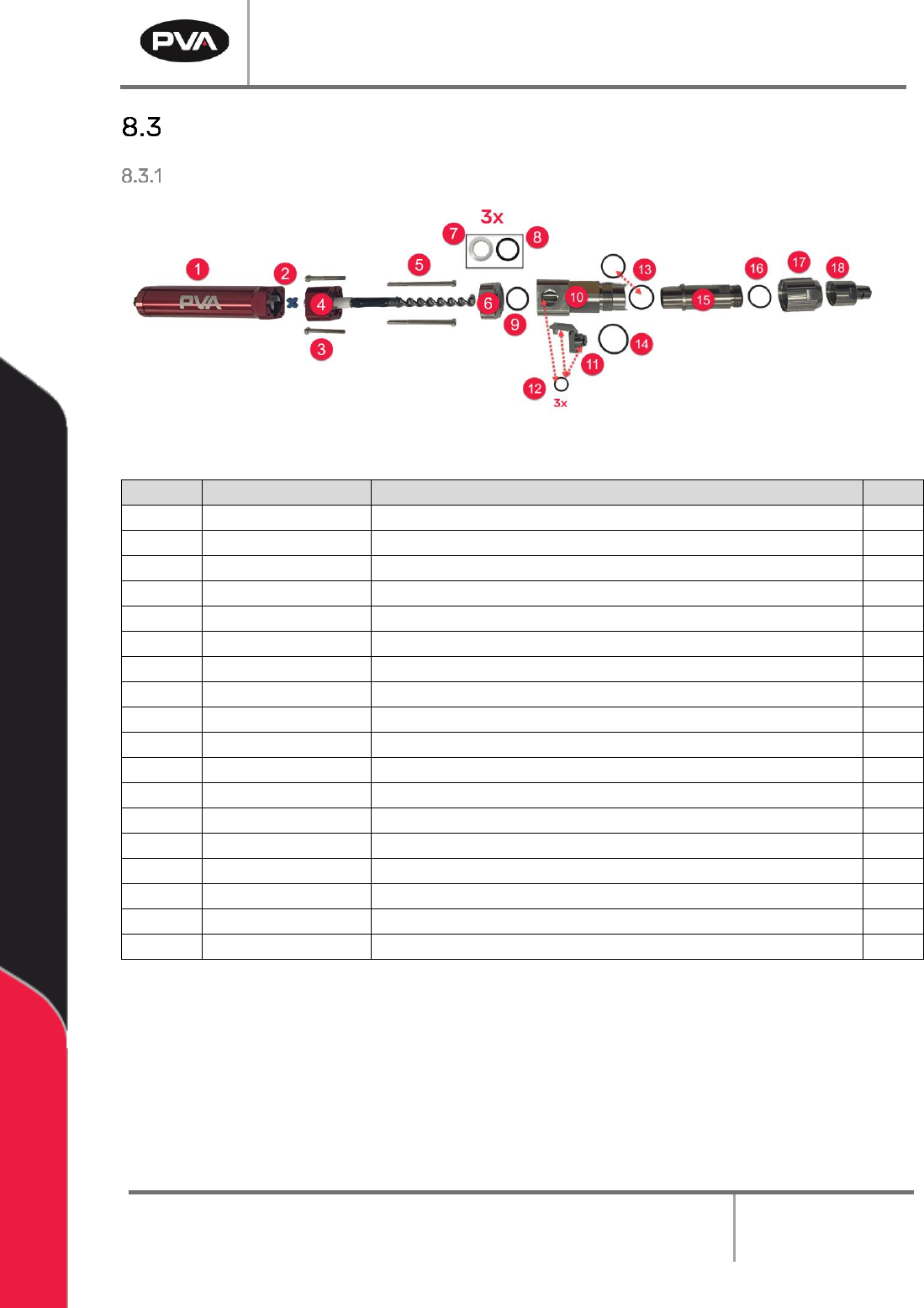

Figure 54: PCP150 Disassembled
Item
Part Number
Description
Qty
1
PCP-150-A3
MOTOR ASSEMBLY, PCP150
1
2
PCP-150-8
COUPLING, URETHANE, PCP150
1
3
PCP-150-J
SHCS, M3 x 35mm, PCP150
2
4
PCP-150-A2
ROTOR, SUS303, PCP150
1
5
PCP-150-I
SHCS, M3 x 55mm, PCP150
2
6
PCP-150-6
SEAL BLOCK, AL2024, PCP150
1
7
PCP-150-7
SEAL, ROTARY, UHMW-PE, PCP150
3
8
PCP-150-H
O-RING, FKM, AS015, PCP150
3
9
PCP-150-G
O-RING, FKM, AN016, PCP150
1
10
PCP-150-4-TL
CHAMBER, LEFT, SUS303, PCP150
1
11
PCP-150-5
PURGE KNOB, CLIP, SUS303, PCP150
1
12
PCP-150-K
O-RING, SS5, PCP150
3
13
PCP-150-B
O-RING, FKM, AS014, PCP150
2
14
PCP-150-C
O-RING, FKM, AS015, PCP150
1
15
PCP-150-A1
STATOR, FFKM, PCP150
1
16
PCP-150-A
O-RING, SS10, FFKM, PCP150
1
17
PCP-150-3
UNION CAP, SUS303, PCP150
1
18
PCP-150-2-A
LUER ADAPTER, SUS303, PCP150
1
Figure 55: PCP150 Bill of Materials
PCP Series Manual
Revision B / October 2021
Page 44 of 56
PCP150-C Bill of Materials
Figure 56: PCP150 Disassembled
Item
Part Number
Description
Qty
1
PCP-150-A3
MOTOR ASSEMBLY, PCP150
1
2
PCP-150-8
COUPLING, URETHANE, PCP150
1
3
PCP-150-J
SHCS, M3 x 35mm, PCP150
2
4
PCP-150-A2
ROTOR, SUS303, PCP150
1
5
PCP-150-I
SHCS, M3 x 55mm, PCP150
2
6
PCP-150-6
SEAL BLOCK, AL2024, PCP150
1
7
PCP-150-7
SEAL, ROTARY, UHMW-PE, PCP150
3
8
PCP-150-H
O-RING, FKM, AS015, PCP150
3
9
PCP-150-G
O-RING, FKM, AN016, PCP150
1
10
PCP-150-4-TL
CHAMBER, LEFT, SUS303, PCP150
1
11
PCP-150-5
PURGE KNOB, CLIP, SUS303, PCP150
1
12
PCP-150-K
O-RING, SS5, PCP150
3
13
PCP-150-B
O-RING, FKM, AS014, PCP150
2
14
PCP-150-C
O-RING, FKM, AS015, PCP150
1
15
PCP-150-A1
STATOR, FFKM, PCP150
1
16
PCP-150-A
O-RING, SS10, FFKM, PCP150
1
17
PCP-150-3
UNION CAP, SUS303, PCP150
1
18
PCP-150-2-A
LUER ADAPTER, SUS303, PCP150
1
Figure 57: PCP150 Bill of Materials
PCP Series Manual
Revision B / October 2021
Page 45 of 56
PCP150-C Bill of Materials

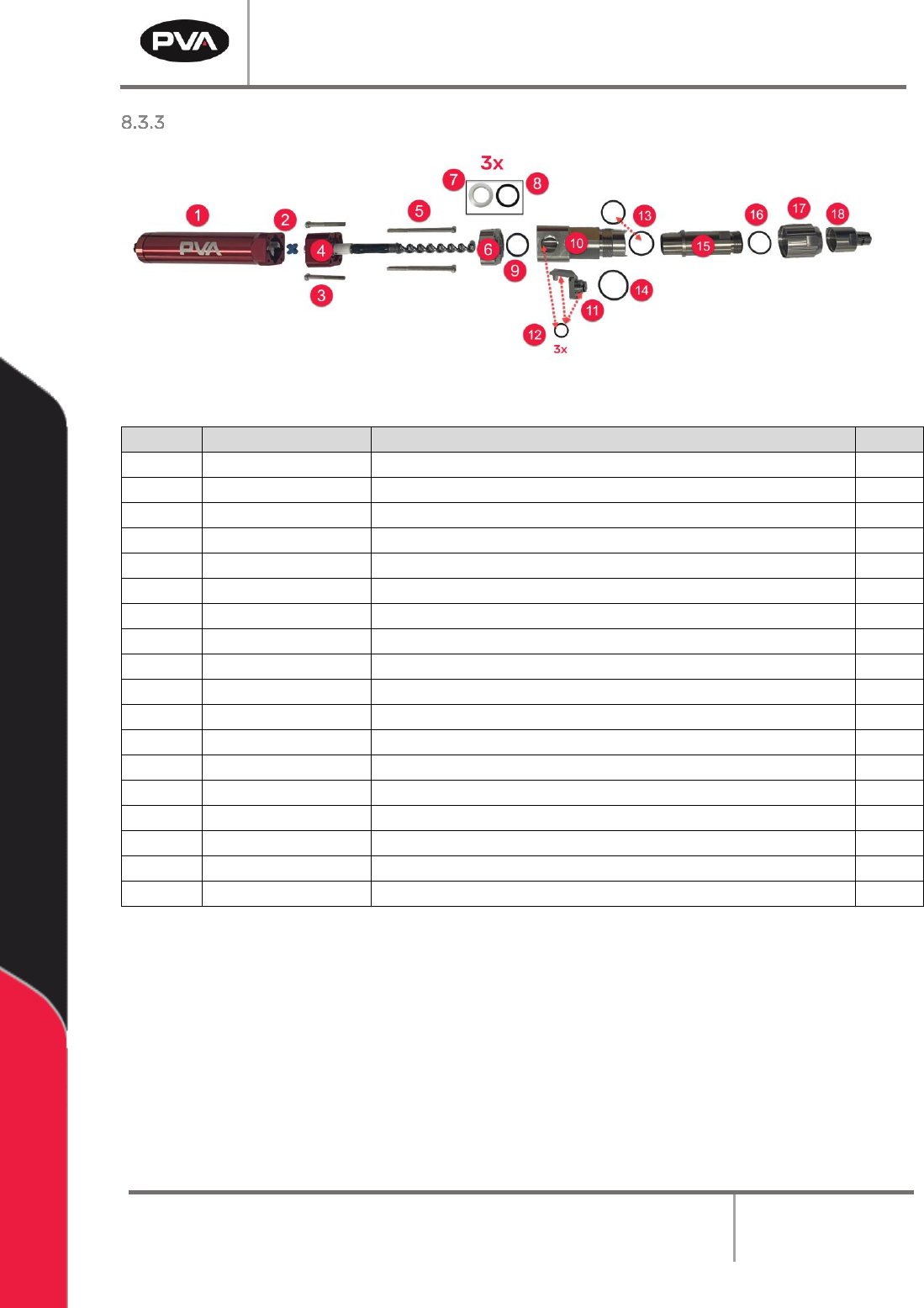

Figure 58: PCP150-C Disassembled
Item
Part Number
Description
Qty
1
PCP-150-A3
MOTOR ASSEMBLY, PCP150
1
2
PCP-150-8
COUPLING, URETHANE, PCP150
1
3
PCP-150-J
SHCS, M3 x 35mm, PCP150
2
4
PCP-150-A2-WC
ROTOR, TUNGSTEN CARBIDE, PCP150-C
1
5
PCP-150-I
SHCS, M3 x 55mm, PCP150
2
6
PCP-150-6
SEAL BLOCK, AL2024, PCP150
1
7
PCP-150-7
SEAL, ROTARY, UHMW-PE, PCP150
3
8
PCP-150-H
O-RING, FKM, AS015, PCP150
3
9
PCP-150-G
O-RING, FKM, AN016, PCP150
1
10
PCP-150-4-TL
CHAMBER, LEFT, SUS303, PCP150
1
11
PCP-150-5
PURGE KNOB, CLIP, SUS303, PCP150
1
12
PCP-150-K
O-RING, SS5, PCP150
3
13
PCP-150-B
O-RING, FKM, AS014, PCP150
2
14
PCP-150-C
O-RING, FKM, AS015, PCP150
1
15
PCP-150-A1-HFS
STATOR, HFS, PCP150-C
1
16
PCP-150-A
O-RING, SS10, FFKM, PCP150
1
17
PCP-150-3
UNION CAP, SUS303, PCP150
1
18
PCP-150-2-A
LUER ADAPTER, SUS303, PCP150
1
Figure 59: PCP150-C Bill of Materials
