PCP Series Manual
Revision B / October 2021
Page 15 of 56

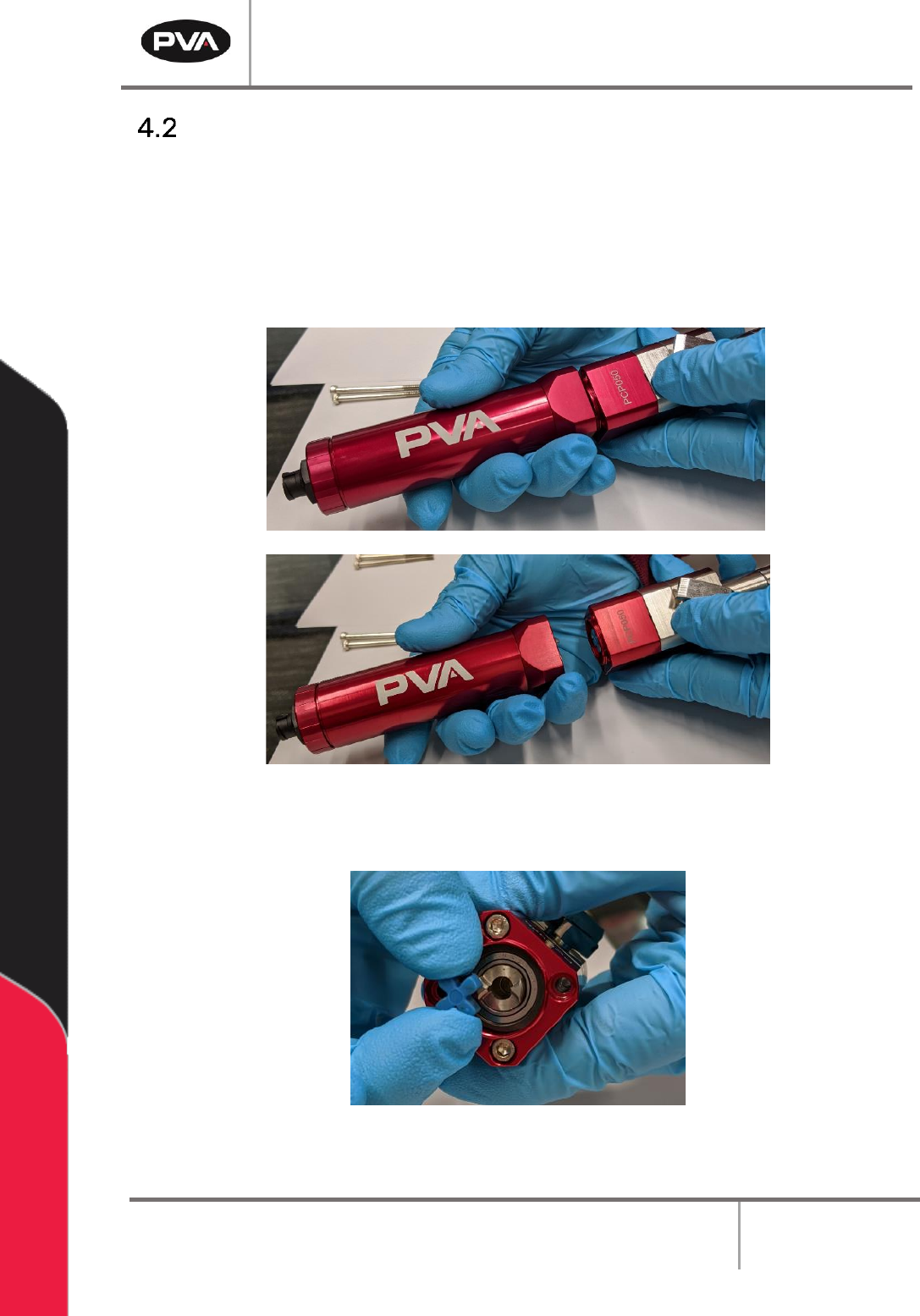

Disassemble the Pump
1. Place the pump on a clean work surface.
2. Use a 2.5 mm hex key to remove the two M3 x 55 mm socket head cap screws from
the rotor assembly.
3. Separate the motor from the rotor assembly.
Figure 3: Separate Motor from Rotor Assembly
4. Remove the blue coupling from the rotor assembly.
Figure 4: Remove Coupling
PCP Series Manual
Revision B / October 2021
Page 16 of 56
5. Twist to unscrew the luer lock and remove it from the stator sleeve.
Figure 5: Remove Luer Lock
6. Twist to unscrew the union cap and remove it from the stator sleeve.
Figure 6: Remove Union Cap
PCP Series Manual
Revision B / October 2021
Page 17 of 56
7. Remove stator sleeve.
Figure 7: Remove Stator Sleeve
8. Install the stator tool onto the rotor assembly.
Figure 8: Install Stator Tool
