OM-1754
3-11303-001
1. Maintenance Menu
1.1 Outline of Maintenance Menu
The following shows the hierarchical structure of the menus (including the
submenus and windows) for the maintenance menu.
Note
The shadowed (gray) items are related to the multi-layer tray feeder.
Menus for Maintenance Reference Item Nos.
"Unit Adj." Submenu 1.3
1.2
1.4
1.4.1
1.4.2
"Unit Change" Window
"Shipment Adj." Window
1.4.3
"DVC Check" Submenu
"INP/OUT" Window
"MOTOR" Window
"RECOG" Window
"NOZ. CHNG." Window
"LINE MEAS" Window
"CONVEYOR" Window
"COM. STAT" Window
"PRGM. INFO." Window
"MaintWM" Window
"Pass Opn." Window
Outline of Maintenance Menu FC1
1. Maintenance Menu
OM-1754
3-21303-001

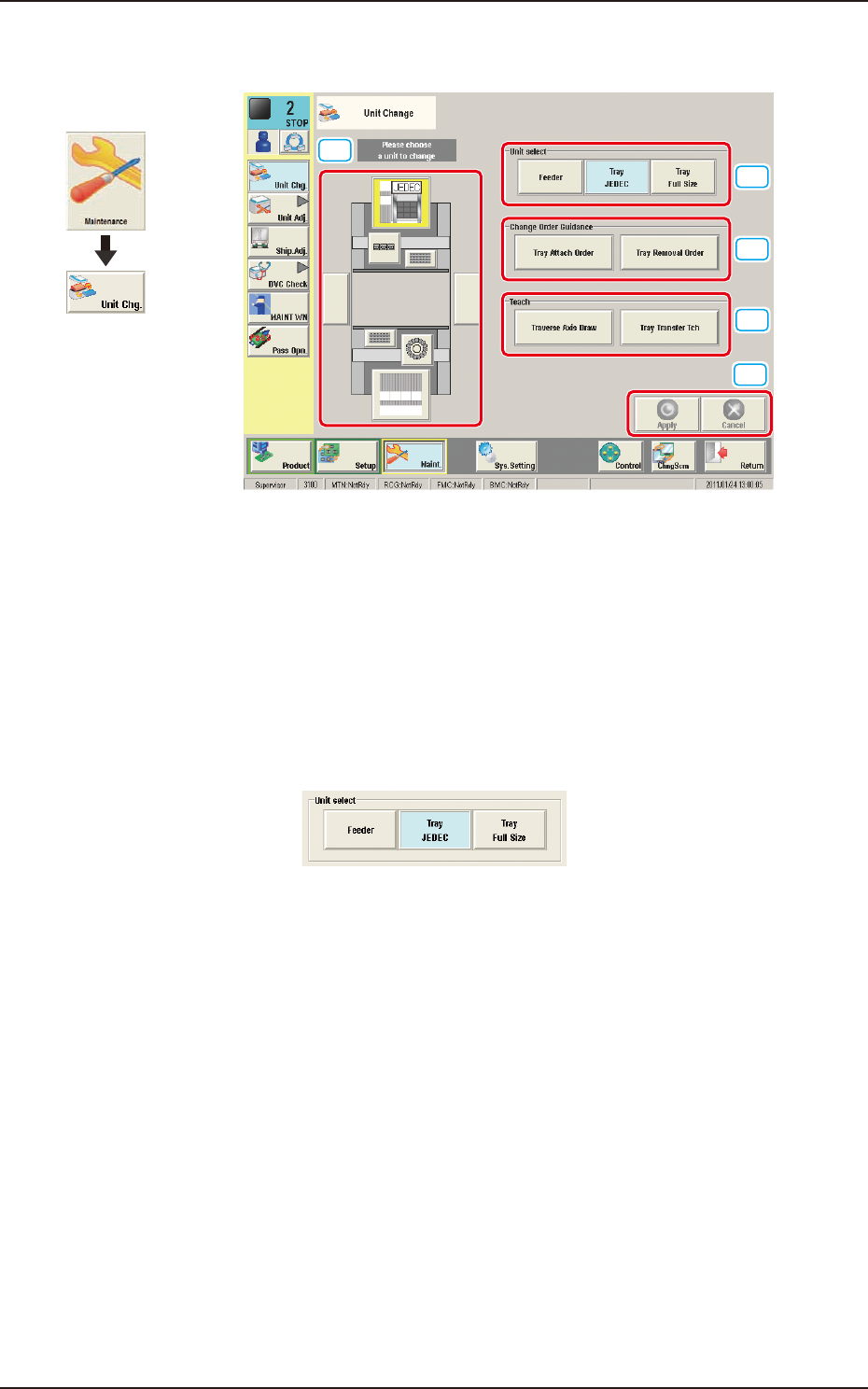

1.2 "Unit Change" Window
[1]
[2]
[3]
[4]
[5]
"Unit Change" window FC2
[1] Unit Image
The image of the unit currently selected is displayed in this section.
[2] Unit select
The selection of the feeder to be changed, is performed using these selection
buttons.
The display changes according to the selected unit.
When "Tray JEDEC" is selected FC3
Graphic
Development
1.2 "Unit Change" Window
OM-1754
3-3

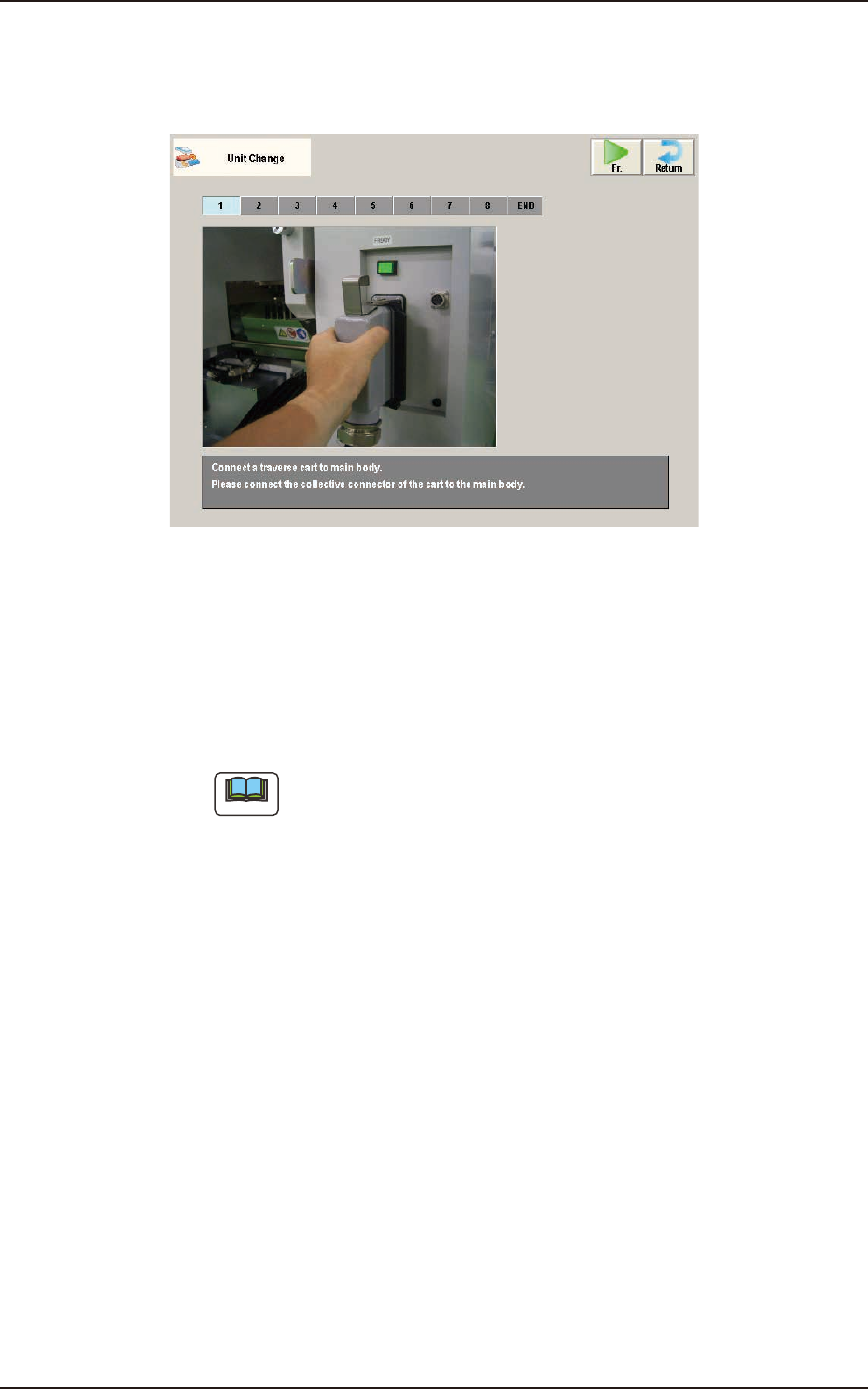

[3] Change Order Guidance
The multi-layer tray feeder attachment procedure window and removal
procedure window, are displayed.
"Change Order Guidance" Window FC4
[4] Teach
[Traverse Axis Draw] Button
When this button is pressed, the teaching operation for the traverse cart
drawing operation offset for each machine is performed by means of teaching
the mark position setup on the traverse cart chuck claw section.
Note
The traverse cart drawing teaching pin is required separately.
[Tray Transfer Tch] Button
When this button is pressed, the tray pallet transfer teaching operation is
performed.
[5] [Apply] Button, [Cancel] Button
[Apply] Button
When this button is pressed, the changed unit is applied.
[Cancel] Button
When this button is pressed, the changed unit is cancelled and the unit before
the change is returned.
