1.4.2 "MOTOR" Window

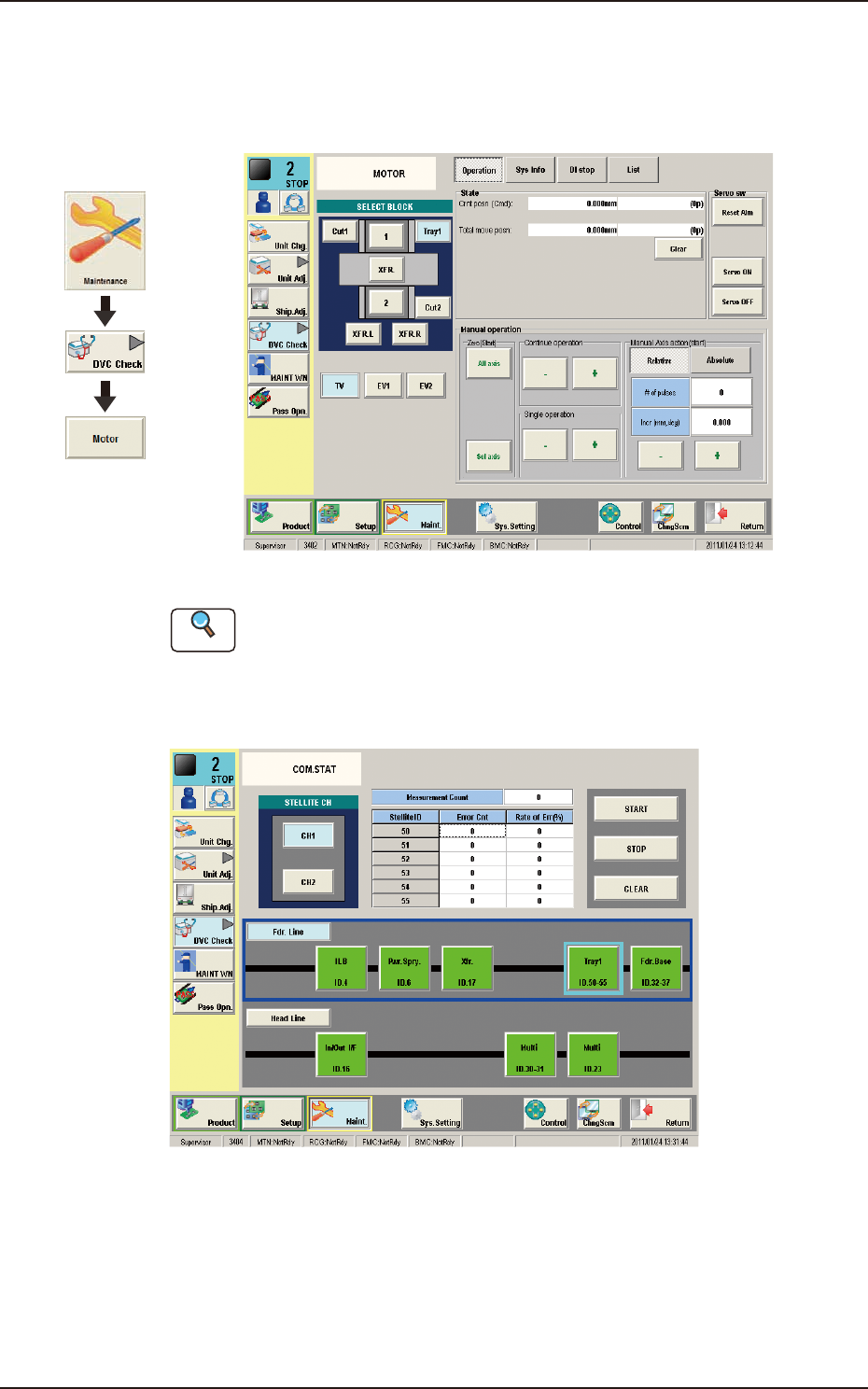

This window enables the operator to perform the manual alignment operation of
each unit and display the current system data.
"MOTOR" window FC12
Reference
Refer to "6.2 "MOTOR" Window" in Chapter 1, Volume 3 for the details.
1.4.3 "COM. STAT" Window
FC13
Graphic
Development
1.4 "DVC Check" Submenu
OM-1754
3-141303-001
2. Menus for System Setting
[1]
FC14

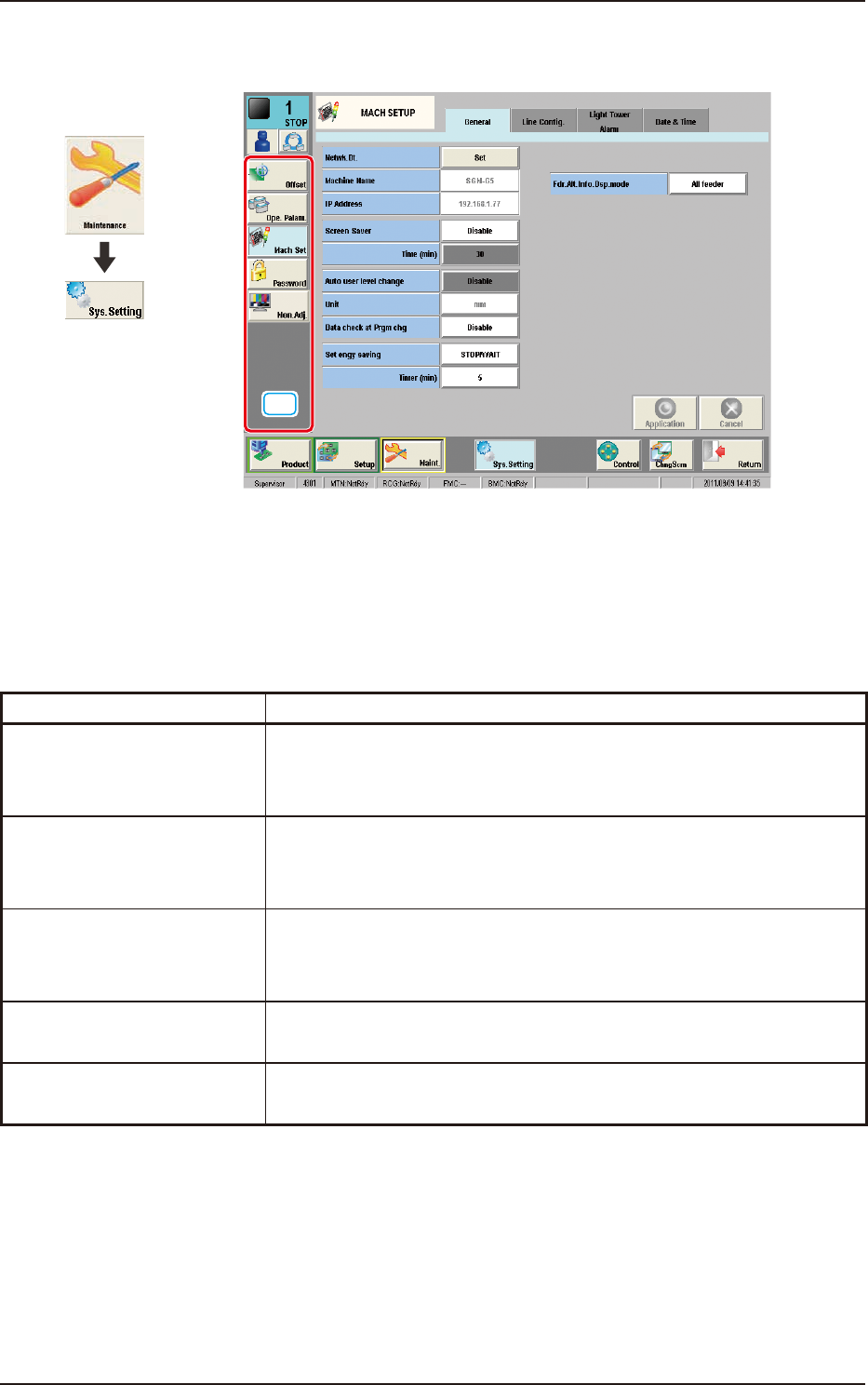

[1] "Sys.Setting" Main Menu Bar
The following buttons are arranged to display the operation windows for the
system environment setting.
Menu Buttons Description
Offset
The corresponding tab sheet enables the operator to set various kinds
of offset data for positional adjustment and accuracy of each device
section related to machine operation.
Ope. Palam.
The corresponding tab sheet enables the operator to set various
parameters related to automatic operation of the machine and check
the machine performance, production rate, production guidance, etc.
Mach Set
This enables the operator to set the screen saver function, specify the
unit of length, and enable or disable the data editing under production
operation.
Password
This enables the operator to set a password and the scope of authority
according to the given authority.
Mon. Adj.
This enables the operator to adjust the monitor.
TC1
Graphic
Development
2. Menus for System Setting
OM-1754
3-151303-001

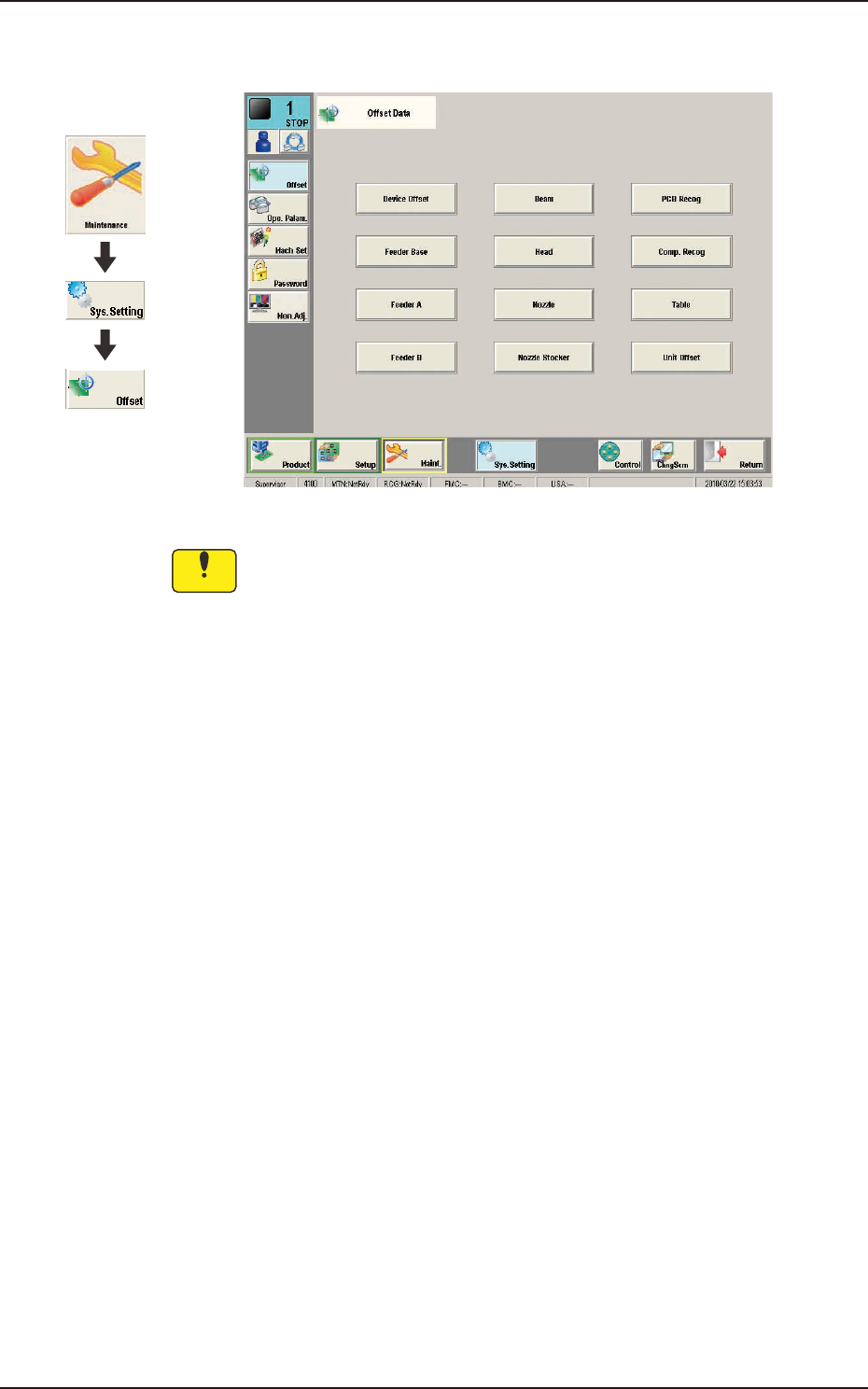

2.1 "Offset Data" Window
FC15
Notice
Do not change the parameters unless necessary. These parameters are
factory-adjusted upon shipment of the machine.
Graphic
Development
2.1 "Offset Data" Window
