OM-1754 4-28 (2) Remove the tape guide. (1) Remove the front safety bar and take out the cutter from the cart. (3) Remove five screws. (4) Replace the fluorine sheet. Fluorine Sheet Every Y ear Replacement Required Time:…
OM-1754
4-27
CAUTION
When the at ring is cut, take care not to get injured by
the commercially available cutter.
1303-001
3.2 Inspection, Cleaning, and Lubrication Spots
OM-1754
4-28

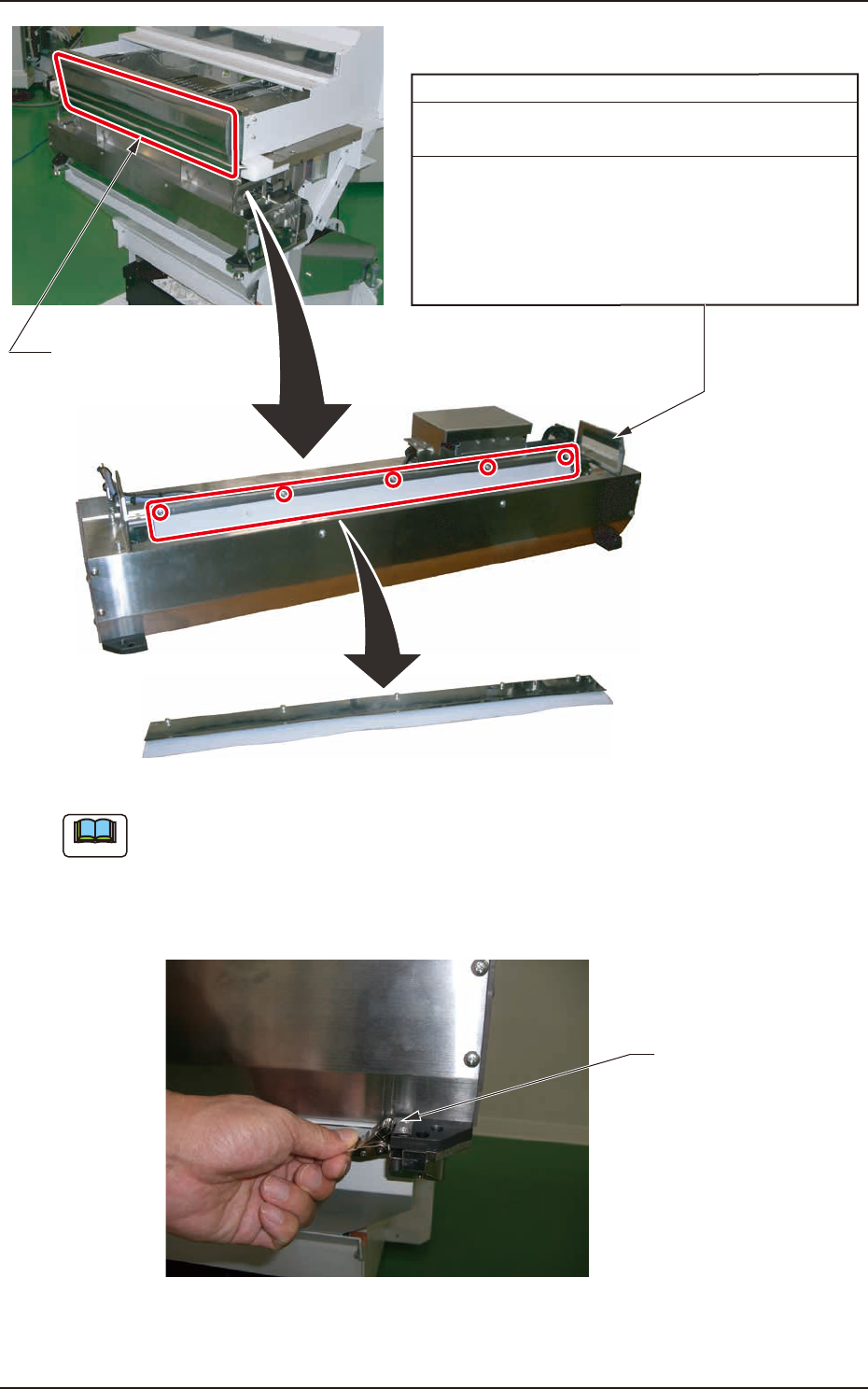

(2) Remove the tape guide.
(1) Remove the front safety bar and take out the cutter
from the cart.
(3) Remove five screws.
(4) Replace the fluorine sheet.
Fluorine Sheet
Every Y ear Replacement
Required Time: 15 minutes
Front Safety Bar
Catch Locks
Removed fluorine-processed sheet.
(a) When the cutter is setup on the cart, fix the two
connectors securely.
(b) When the cutter is setup on the cart, push the cutter
into the end and fix it securely using the catch locks
(2 locations).
(c) Do not forget to attach the safety cover.
Note
FD20
1303-001
3.2 Inspection, Cleaning, and Lubrication Spots
OM-1754
4-29

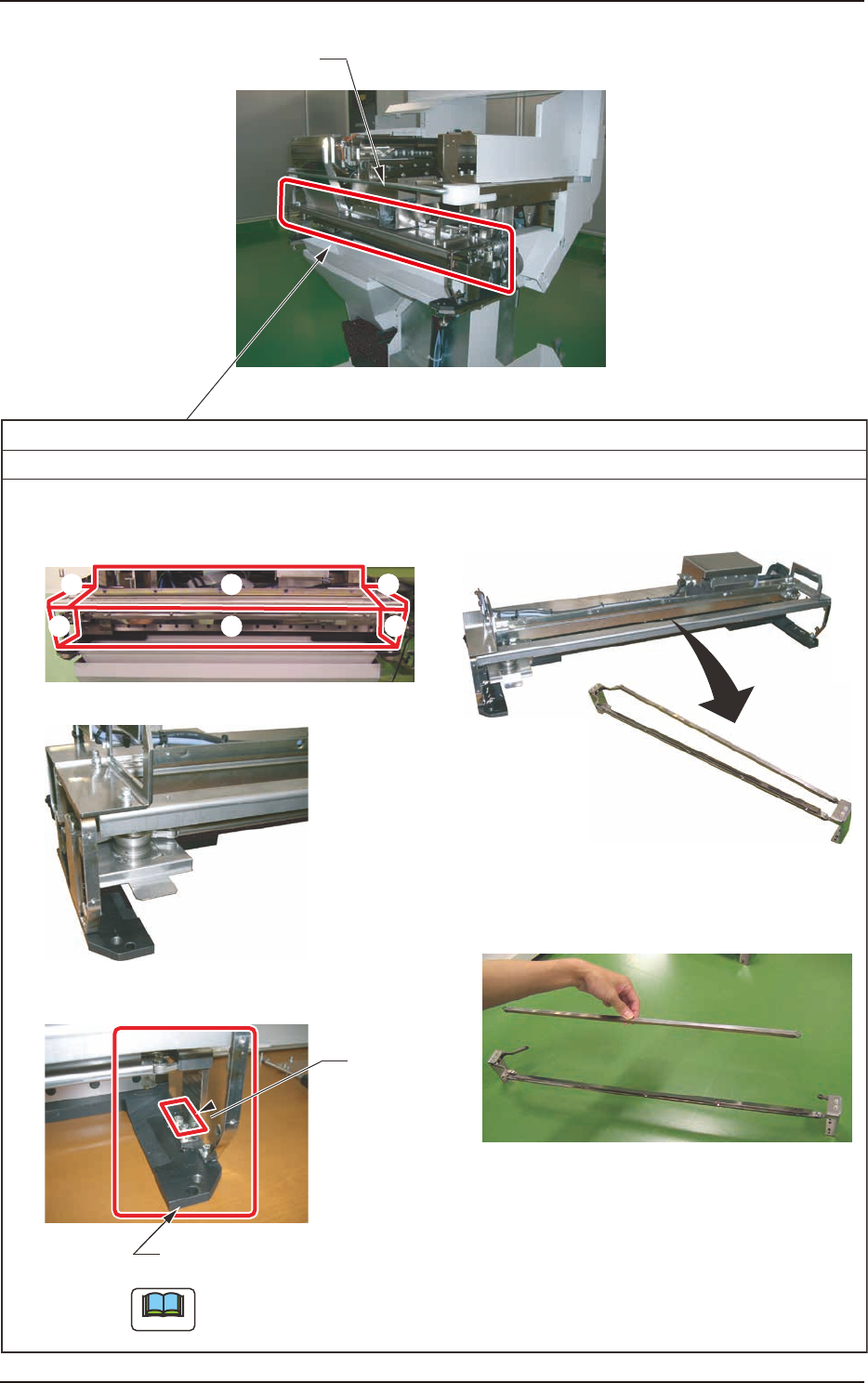

(3) Attach the cutter blade cover.
(1) Remove the front safety bar and take out the
cutter from the cart.
② ⑥ ①
④ ⑤ ③
③
②
⑥
⑤
Front
Safety Bar
Urethane Clamp
(2) Remove the cutter section covers (6 locations).
(4) Remove the screws on the right and left of the clamp
lever base.
(5) Remove the clamp lever together with the clamp
lever base.
(6) Remove the clamp lever from the clamp lever base
and replace the clamp lever by new one.
Remove
the screw.
Remove the screw also on the other side.
Every Year Replacement Required Time: 30 minutes
When the cutter is setup on the cart, fix the two connectors securely.
Do not forget to attach the safety cover.
Note
FD21
1303-001
