OM-1754
3-22
2.2 "Auto Operation" Window
2.2.1 "Tray Matrix Update" Tab Sheet
When the [Tray Matrix Update] tab is pressed in the "Auto Operation" tab sheet,
the following tab sheet appears.
[1]
[4]
[2]
[3]

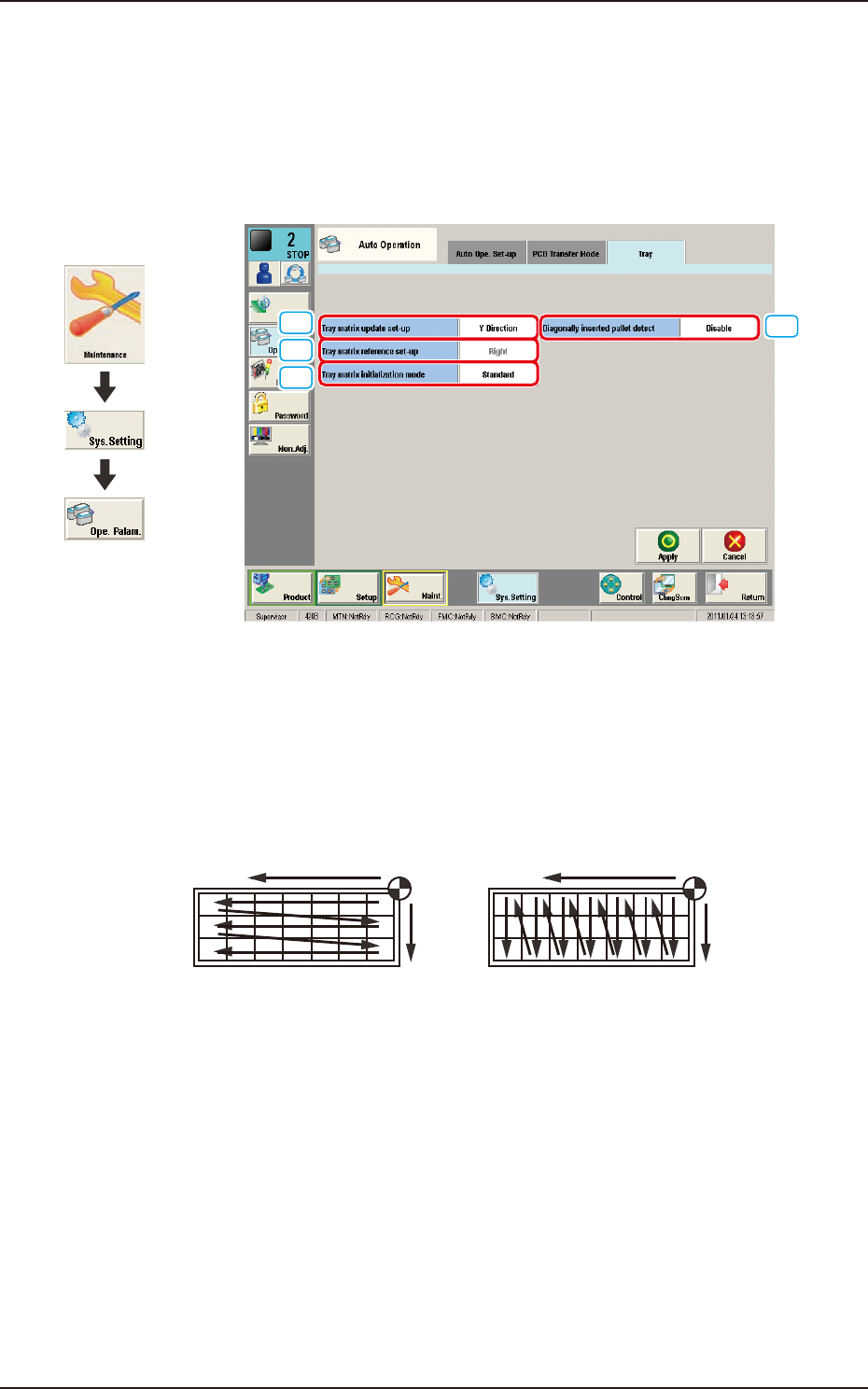

"Tray Matrix Update" Tab Sheet FC20
[1] Tray matrix update set-up
Select "X Direction" or "Y Direction" (direction in which components should
be taken out) in the text box.
In normal cases, "Y Direction" should be selected.
Selection of "X Direction"
Selection of "Y Direction"
X
Y
X
Y
FC21
1303-001
Graphic
Development
2.2 "Auto Operation" Window
OM-1754
3-23

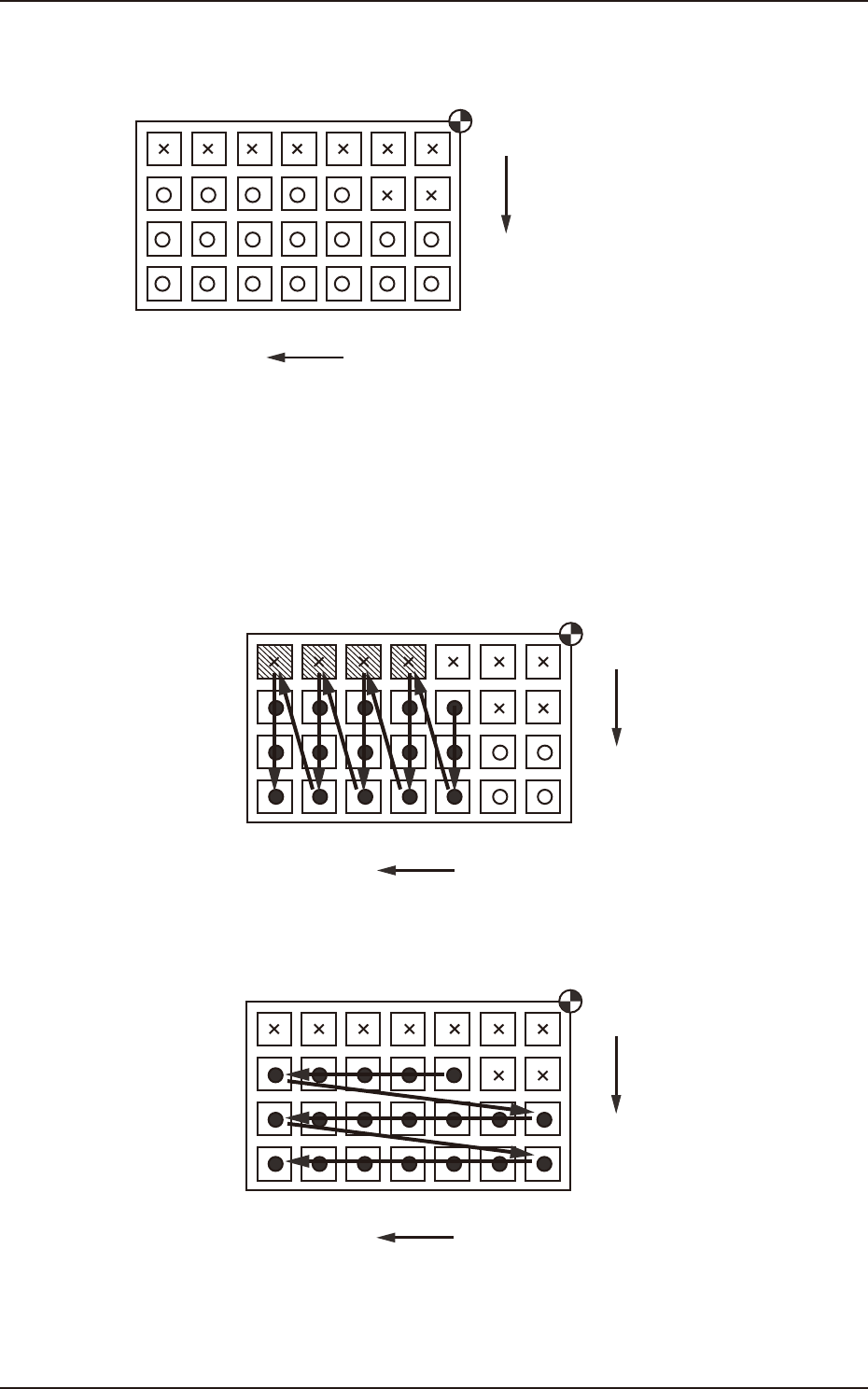

For example
: The tray is in the condition as shown in FC17.
(Tray in Middle of Process)
×
:No Component
(Taken Out)
○
:Component Existing
3
1
2
99
･
･
･
2 199 ･ ･ ･ ･ ･ ･
X
Y
FC22
•
The rst component pick-up position is assumed to be "X: 3, Y: 2".
●
: Component Picked Normally
○
: Component Left Behind
Shadowed : Miss-picked
Selection of "Y Direction"
3
1
2
99
･
･
･
2 199 ･ ･ ･ ･ ･ ･
X
Y
FC23
3
1
2
99
･
･
･
2 199 ･ ･ ･ ･ ･ ･
X
Y
Selection of "X Direction"
FC24
1303-001
2.2 "Auto Operation" Window
OM-1754
3-24
[2] Tray matrix reference set-up
Select "Right" or "Left" in the text box.
[3] Tray matrix initialization mode
Select "Standard", "Hold", or "Initialize" in the text box.
Standard
: When the tray matrix data is identical in its type or is not used
after a program change, it is not initialized.
When the ID is changed to a different one, the tray matrix data
is initialized to "0, 0".
Hold
: When the tray matrix data is identical in its type or is not used
after a program change, it is not initialized.
When the ID is changed to a different one, the tray matrix data
is initialized to "1, 1".
Initialize
: The tray matrix data used for the production model is all
initialized to "1, 1".
Cancel
: When this item is selected, the above selection is cancelled and
the previous "Tray Matrix Update" is returned.
[4] Diagonally inserted pallet detect
Whether or not the pallet incline-insertion detection is performed, is set in
this selection box.
