OM-1754
2-8

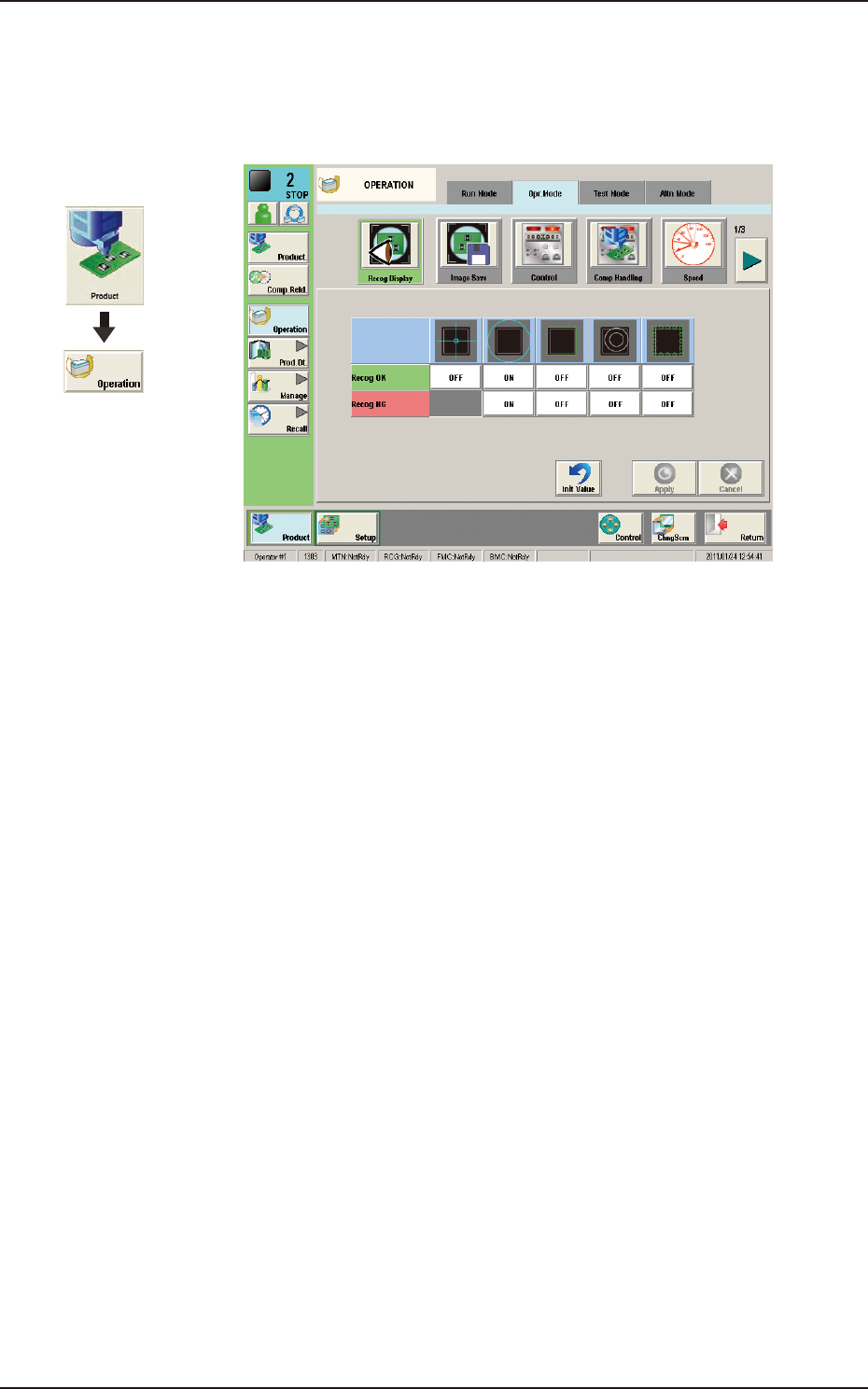

2.3 "OPERATION" Window
When the [Opr.Mode] tab is pressed in the "OPERATION" window the following
window appears.
"OPERATION" window FB8
The "OPERATION" window is composed of the "Run Mode", "Opr.Mode", "Test
Mode", "Altn Mode" windows.
For the tray elevator or tray traverse operation speed reduction designation, the
setting can be performed.
1303-001
Graphic
Development
2.3 "OPERATION" Window
OM-1754
2-9

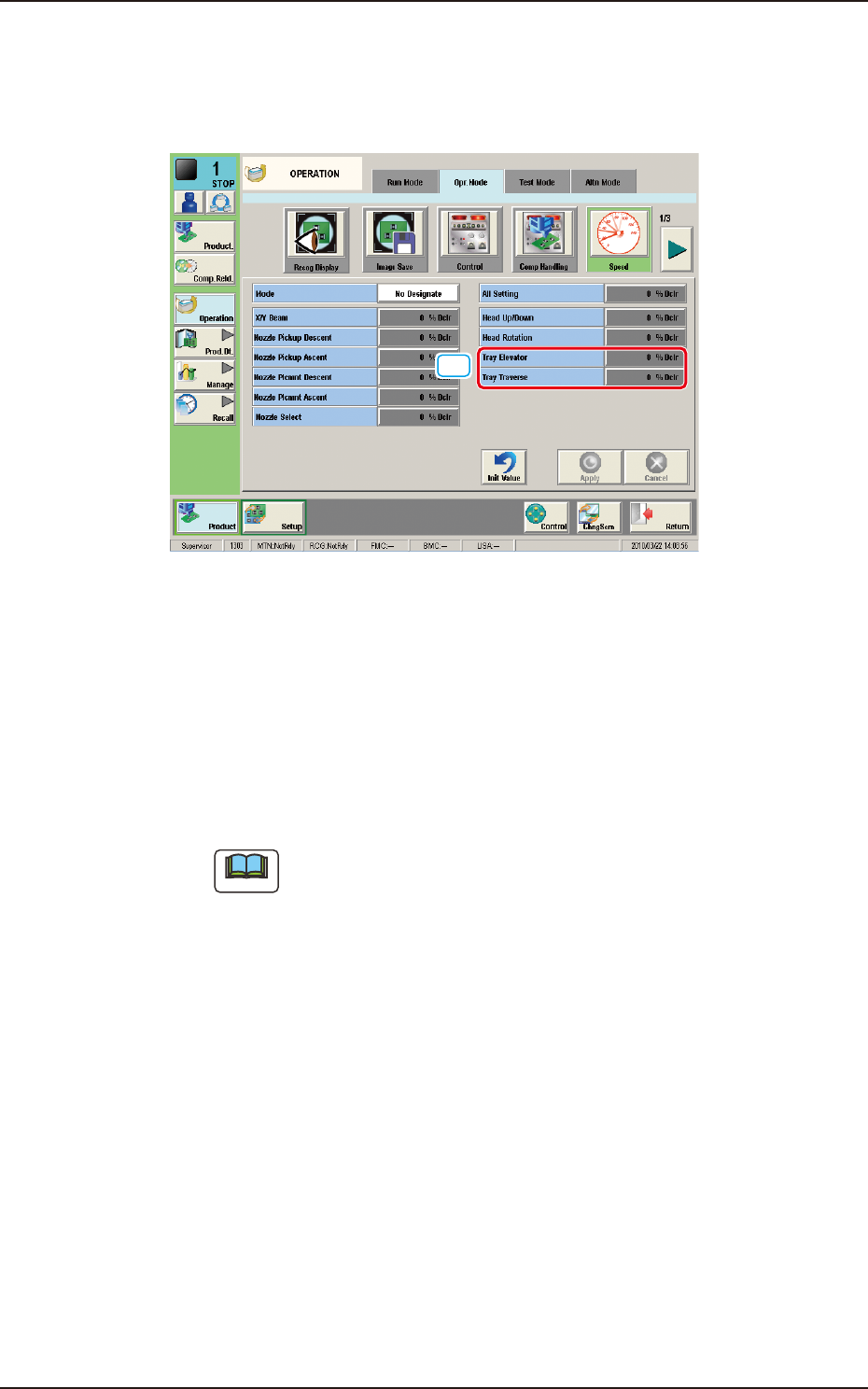

2.3.1 "Opr.Mode" Tab Sheet
When the [Speed] button is pressed in the "Opr.Mode" tab sheet the following
window appears.
[1]
"Opr.Mode" tab sheet (1/3) FB9
[1] Tray Elevator
This button can be used to set the rate of the elevator speed reduction.
Setting Range : 0 to 99 %
Tray Traverse
This button can be used to set the rate of the traverse speed reduction.
Setting Range : 0 to 99 %
Note
When the rate of the traverse speed reduction is to be designated, change
the "Mode" setting from "No Designate" to "Designate".
1303-001
2.3 "OPERATION" Window
OM-1754
2-10
2.3.2 "Test Mode" Tab Sheet
The corresponding window makes it possible to set parameters for the test mode.
"Test Mode" Tab sheet (Second Page) FB10
Test Patterns
Set the contents of the test mode.
The following shows the items related to the multi-layer tray feeder.
Tray Matrix Update Dsbl.
Tray Pll Det Dsbl.
Tray Comp Feed Dsbl.
Notice
Wrong selections (test run in wrong modes) will cause various
deciencies such as component picks by vacuum nozzles,
scattering of components, or collision with the chute, etc.
1303-001
