OM-1754
2-10

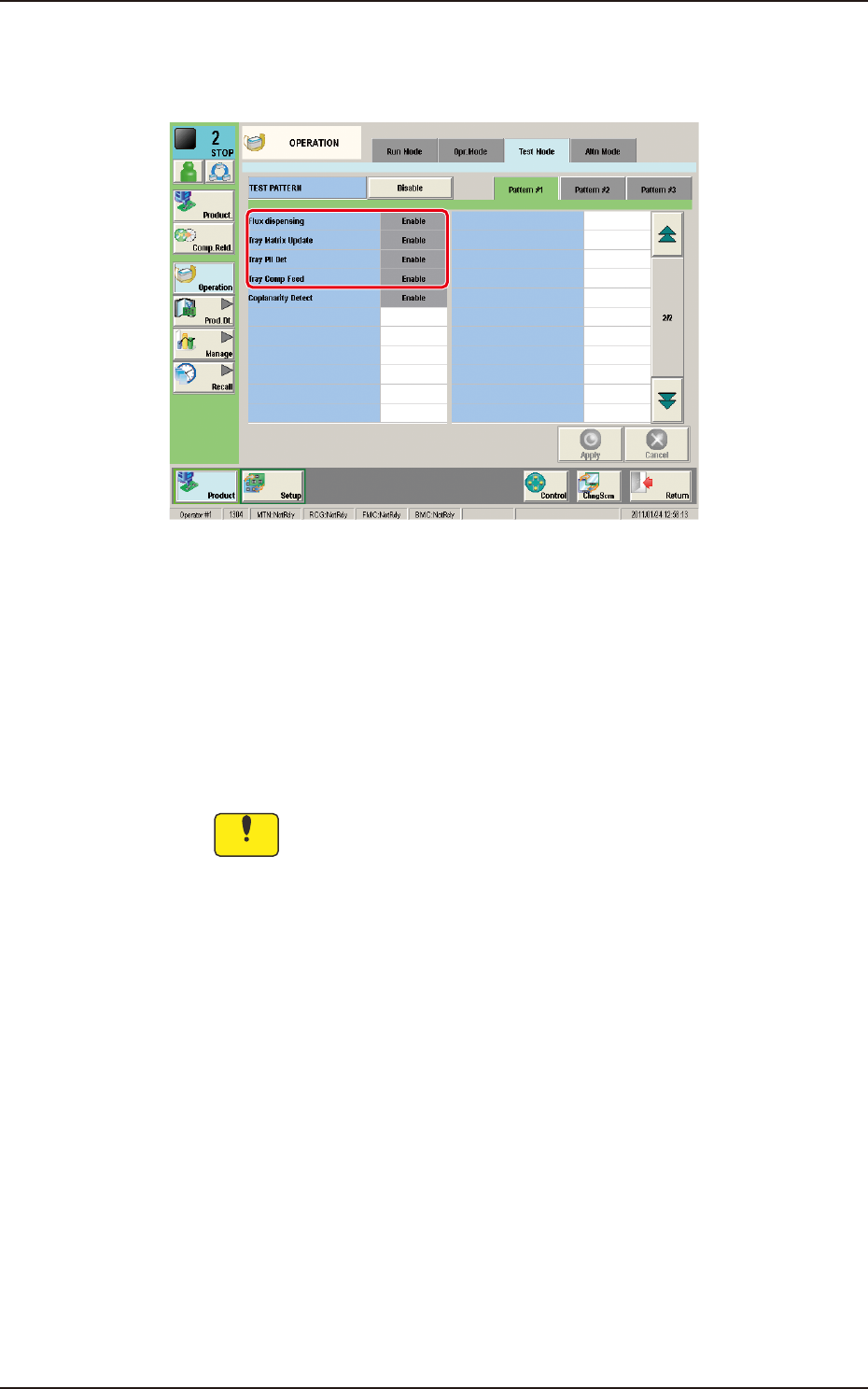

2.3.2 "Test Mode" Tab Sheet
The corresponding window makes it possible to set parameters for the test mode.
"Test Mode" Tab sheet (Second Page) FB10
Test Patterns
Set the contents of the test mode.
The following shows the items related to the multi-layer tray feeder.
Tray Matrix Update Dsbl.
Tray Pll Det Dsbl.
Tray Comp Feed Dsbl.
Notice
Wrong selections (test run in wrong modes) will cause various
deciencies such as component picks by vacuum nozzles,
scattering of components, or collision with the chute, etc.
1303-001
2.3 "OPERATION" Window
OM-1754
2-11
2.3.3 "Altn Mode" Tab Sheet
The corresponding window makes it possible to set parameters for the magazine
alternate mode.
[1]
[2]
[3]
[4]
"Altn Mode" Tab sheet (Multi-Layer Tray Feeder #1 Used) FB11
[1] [Tray Mgzn.] Button
When pressed, this button opens the "Altn Tray Mag" window.
[2] Altn Tray Mag Mode
[Enable] Button
: When selected, this button validates the magazine
alternate mode.
[Disable] Button
: When selected, this button invalidates the
magazine alternate mode.
[3] Order of Priority
[Mag #1] Button
: When this button is pressed, the components in
Magazine #1 are used prior to the others.
[Mag #2] Button
: When this button is pressed, the components in
Magazine #2 are used prior to the others.
[4] [Apply], [Cancel] Button
Using these buttons, the parameter set in the [2] or [3] is reected on the
machine operation or cancelled.
1303-001
2.3 "OPERATION" Window
OM-1754
2-12

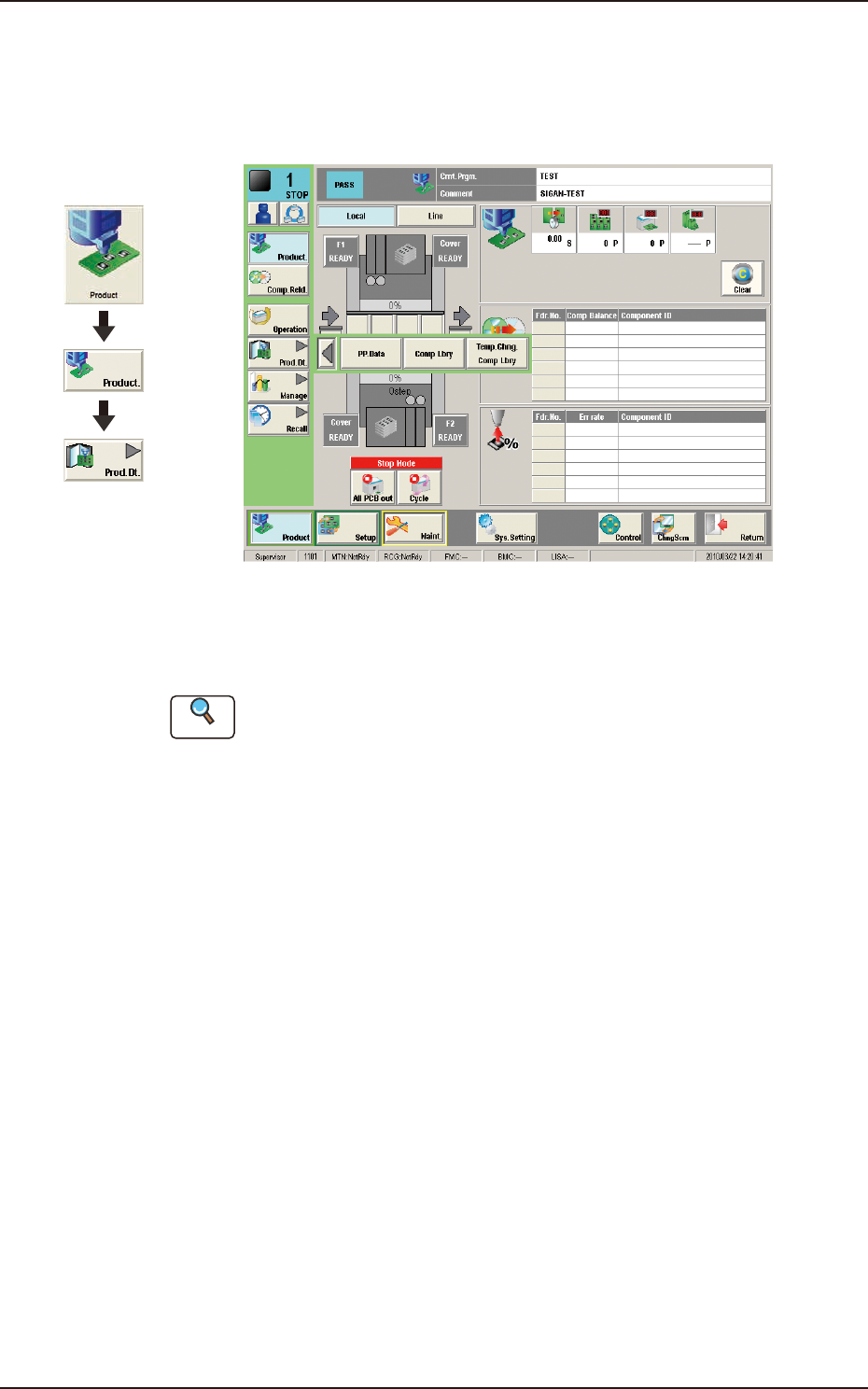

2.4 "Prod.Dt" Submenu
This submenu is described taking an example where the multi-layer tray has been
installed on the block No. 1.
Production Data window FB12
The "Prod.Dt" window is provided with the "PP.Data" window, "Comp Lbry"
window and "Temp.Chng.Comp Lbry" window.
Reference
Refer to "Chapter 2 Pattern Program" in the Vol. 2 of the Instruction Manual for
the Main Machine, for the detailed description of the "PP.Data" window.
Graphic
Development
1303-001
2.4 "Prod.Dt" Submenu
