OM-1754 2-18 (F02) T ray Feeder Data "Tray" Edit window FB17 Graphic Development 1303-001 2.4 "Prod.Dt" Submenu
OM-1754
2-17
2.4.4 "Pattern Program" Window
•
Placement Feeder Location Data
The "Tray Fdr" and "Tray Step" tabs in each "Block #" tab can be used to set
the placement feeder location data for the multi-layer tray feeder.
Note

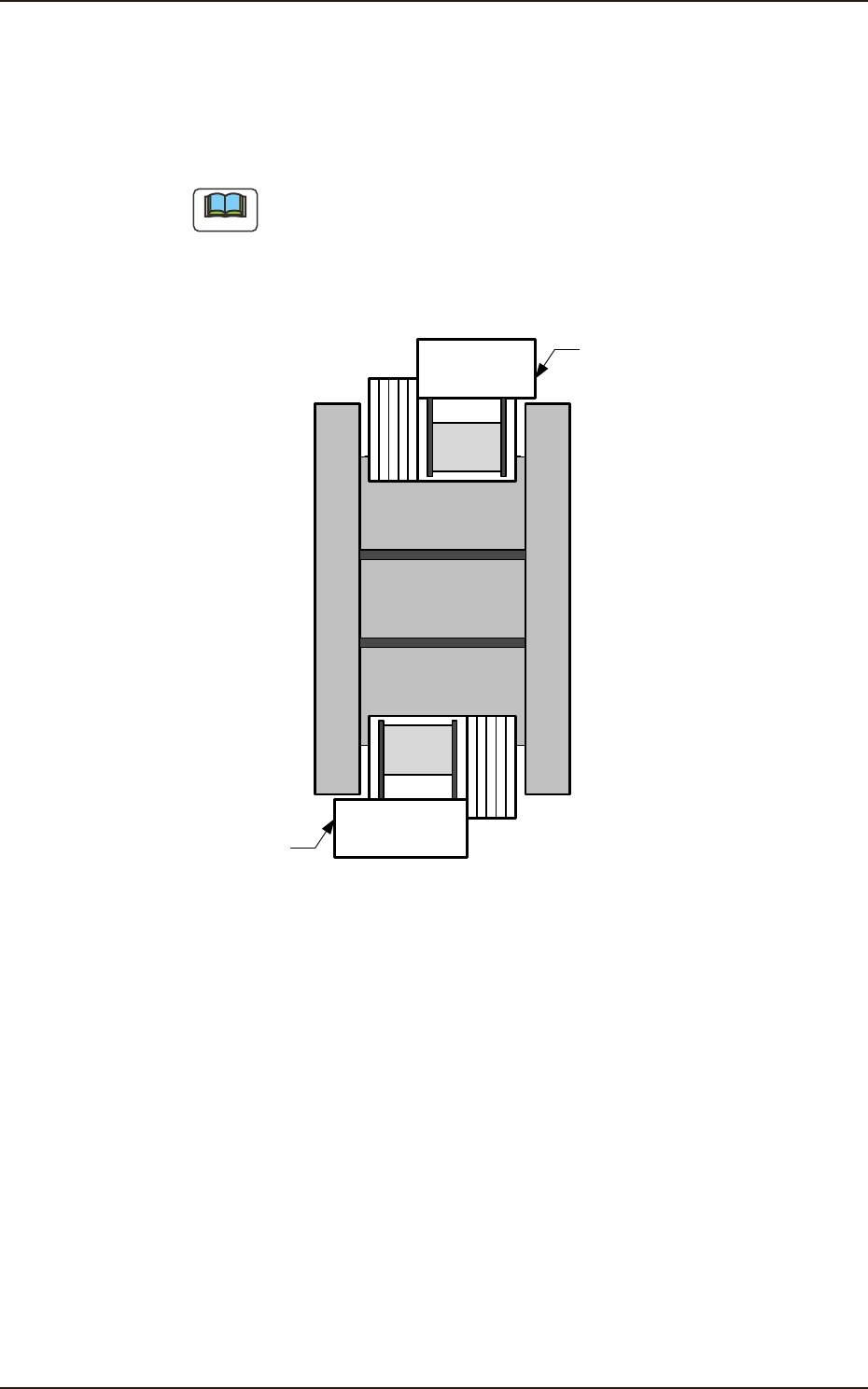

The following shows the positional relation between the block.
Multi-Layer Tray Feeder #1
Rear Side of Machine (Block #1)
Front Side of Machine (Block #2)
Multi-Layer Tray Feeder #2
FB16
1303-001
2.4 "Prod.Dt" Submenu
OM-1754
2-18

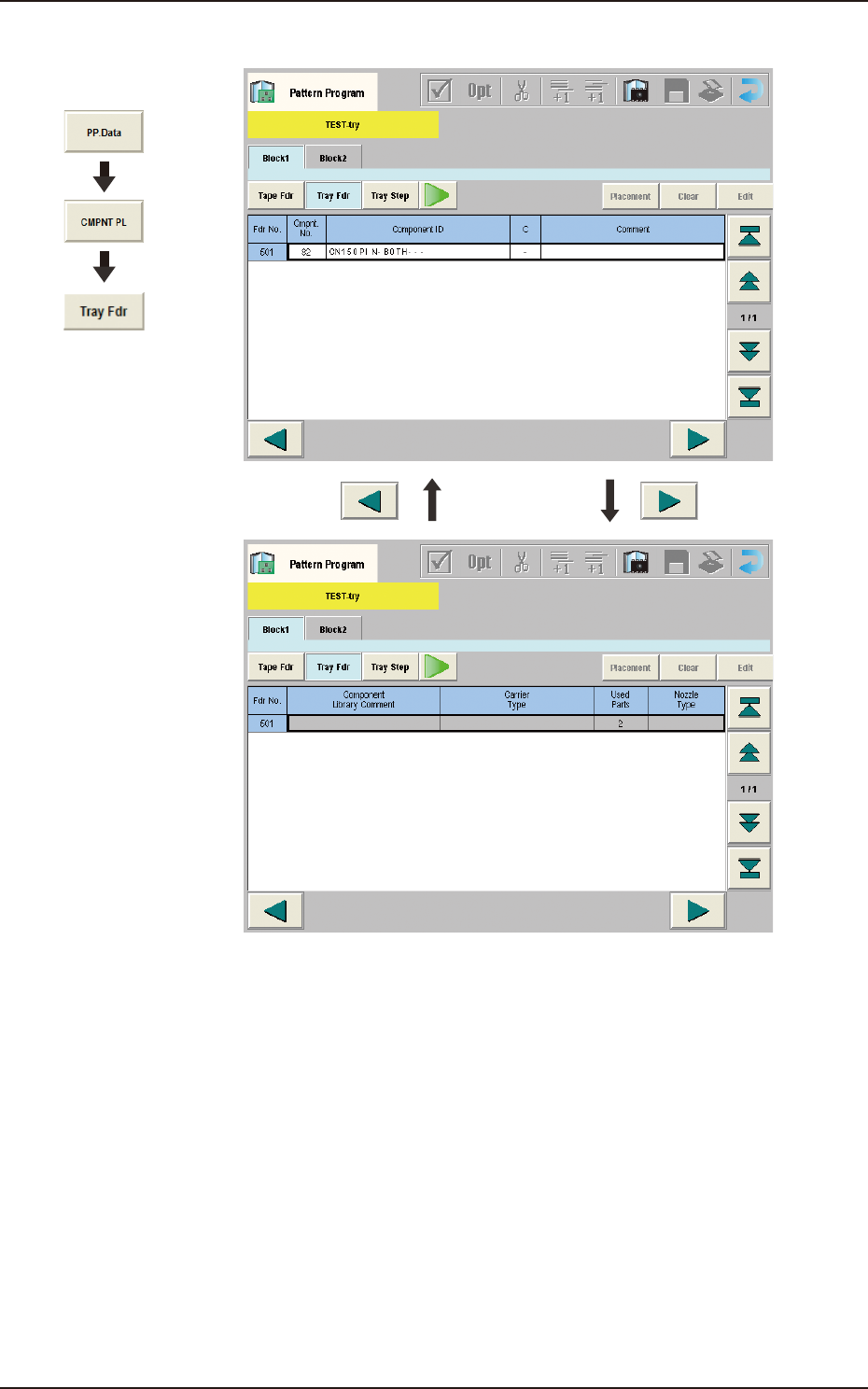

(F02) Tray Feeder Data
"Tray" Edit window FB17
Graphic
Development
1303-001
2.4 "Prod.Dt" Submenu
OM-1754
2-191303-001
(F02_01) Fdr No.
Shown are the feeder Nos. in the placement feeder location data.
When the multi-layer tray feeder is connected, the feeder Nos. (Fdr Nos.)
become as follows.

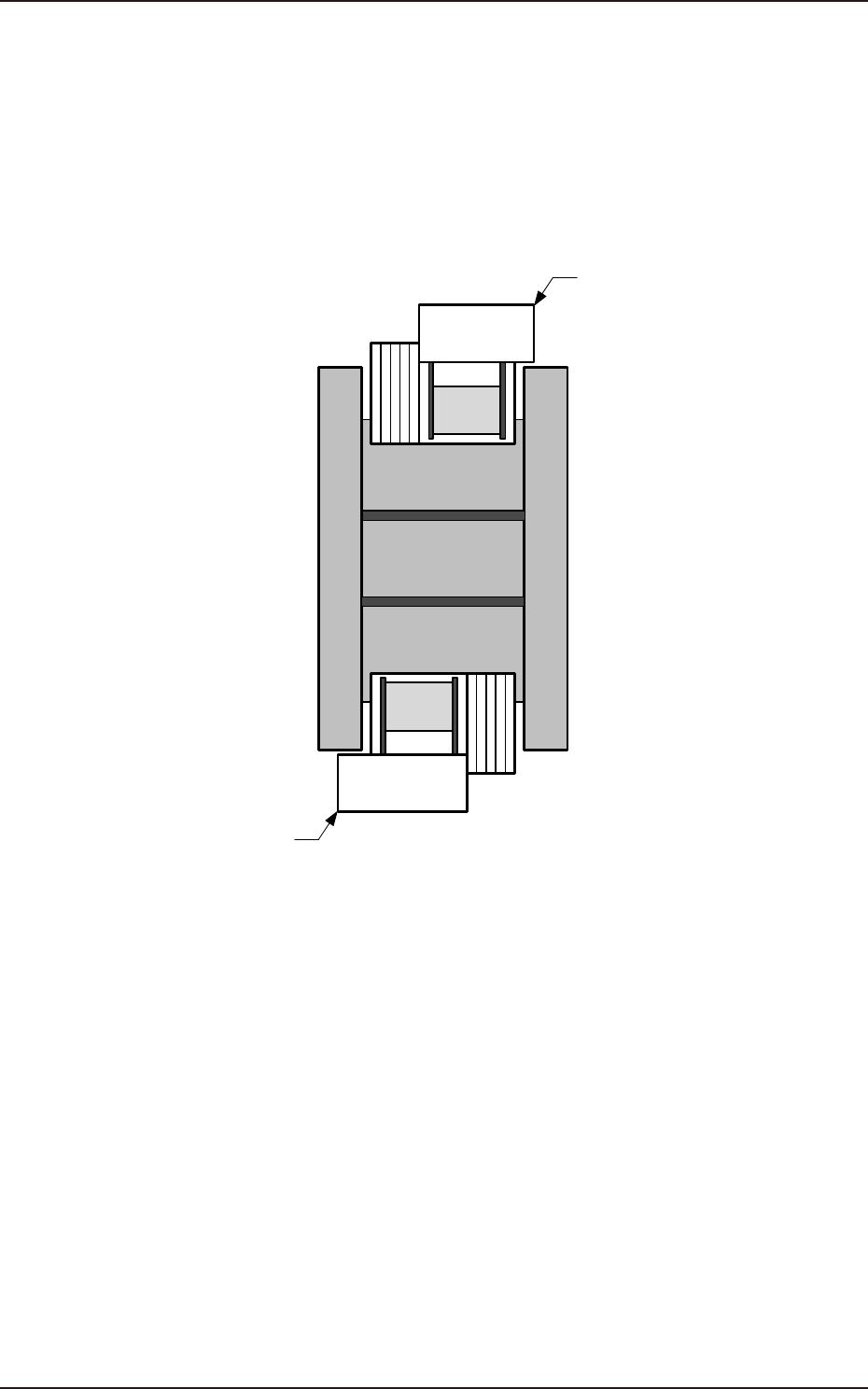

Multi-Layer Tray Feeder #1
: 501 to 599
Multi-Layer Tray Feeder #2
: 601 to 699
501 to 599
601 to 699
Multi-Layer Tray Feeder #1
Rear Side of Machine
Front Side of Machine
Multi-Layer Tray Feeder #2
Multi-Layer Tray Feeder #1, #2 FB18
(F02_02) Component No.
Shown are the component Nos., in this section.
(F02_03) Component ID
Set component IDs in the text boxes.
